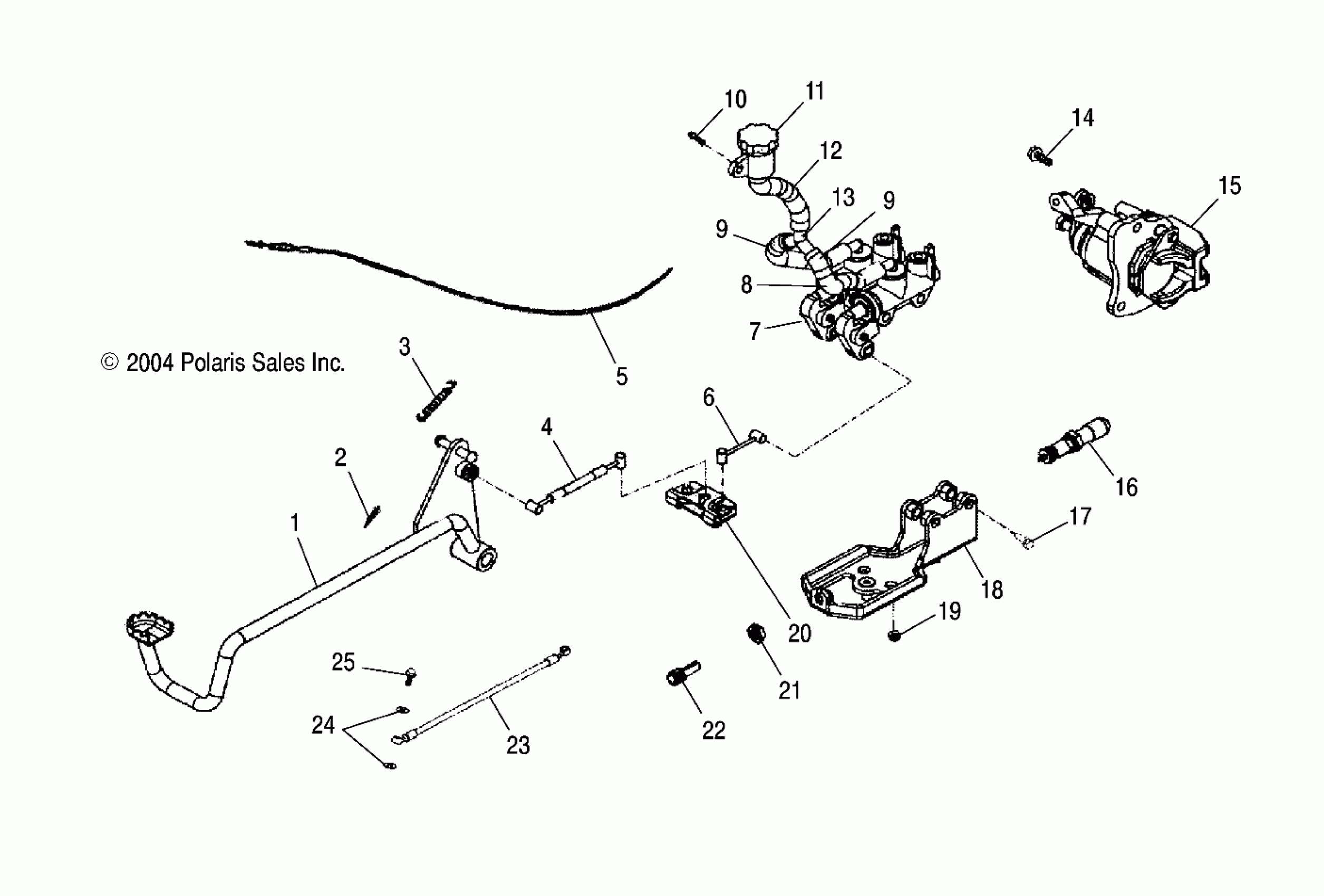

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA BRAKE, REAR - A05PB20EA/EB/EC/ED (4999709970C01) Diagram

#

Description
Price

1

Lever, Brake, Foot

0452874

Unavailable

2

PIN, COTTER

0450719

Unavailable

3

Spring, Brake Lever

0452686

$5.59

4

Cable, Brake Pedal, Bracket

0452876

Unavailable

5

Cable, Hand Brake, Rear

0452873

$59.99

6

Cable, Pedal, Brake

0452875

Unavailable

7

Asm., Master Cylinder [Incl. 8,9,11,12]

0452878

Unavailable

8

Asm., Sub, Master Cylinder

0452879

Unavailable

9

Hose, Brake

0452881

$6.63

9

Hose, Brake

0452881

$6.63

10

Bolt, Flange, Hex

0452816

Unavailable

11

Asm., Cap, Brake Reservoir, Rear

0453023

$12.39

12

Hose, Brake

0452880

$29.51

13

Fitting, Y, Oil Line

0452882

$19.43

14

Bolt, Hex, Washer Face

0452888

$3.17

15

Asm, Caliper

0452883

$228.56

16

SWITCH, BRAKE

0453015

$39.99

17

Bolt, Hex w/Spring Washer

0452858

$1.49

18

Mount, Master Cylinder/Brake Pedal

0452877

$74.27

19

Nut, Hex, Nylon

0450282

$3.19

20

Connector, Brake Cable

0452885

$13.19

21

Nut, Lock

0452887

Unavailable

22

Bolt, Insert

0452886

Unavailable

23

Hose, Brake

0452884

$115.99

24

Seal

0452872

Unavailable

25

BOLT, BANJO

0452871

$10.39
