Partiron

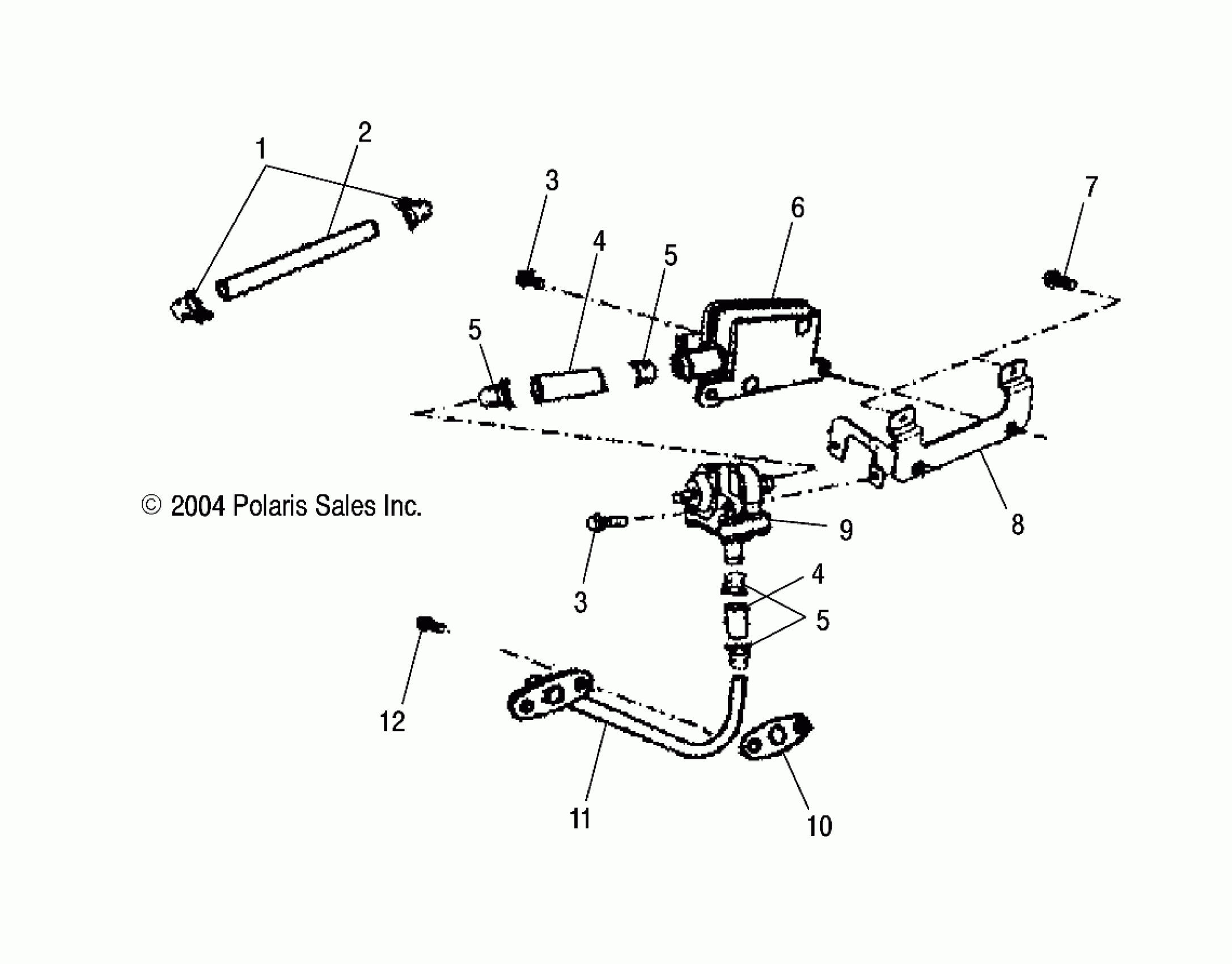

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA AIR INJECTION SYSTEM - A05PB20EA/EB/EC/ED (4999709970A04) Diagram

#

Description
Price

1

CLIP

0452814

$3.99

2

HOSE-VACUUM,ENGINE

0455525

$3.99

3

Bolt, Hex

0450309

Unavailable

3

Bolt, Hex

0450309

Unavailable

4

Hose, Rubber

0452813

Unavailable

4

Hose, Rubber

0452813

Unavailable

5

Clip

0452795

$3.99

5

Clip

0452795

$3.99

5

Clip

0452795

$3.99

6

ASM., VALVE, AIR INTAKE

0452811

$63.99

7

Bolt, Flange, Hex

0452816

Unavailable

8

Bracket, Air Intake

0452812

$39.99

9

Valve, Intake

0452810

$119.99

10

GASKET, AIR INJECTION

0452808

Unavailable

11

ASM., TUBE, AIR INJECTION

0452807

$39.99

12

BOLT, HEX, FLANGE

0452413

$3.99
