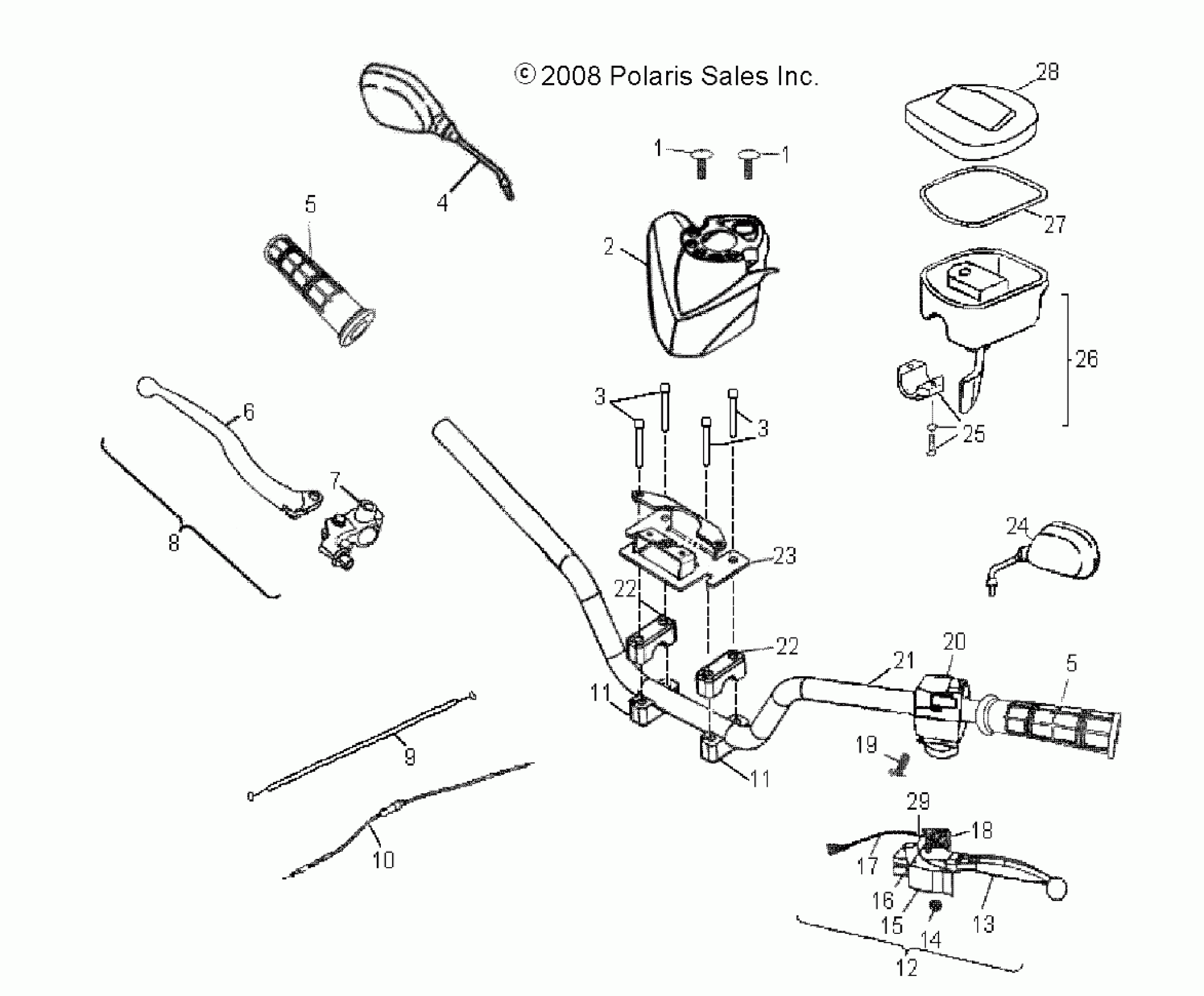

Polaris PHOENIX 200 QUAD - A10PB20EB STEERING, HANDLEBAR - A10PB20EB (49ATVHANDLEBAR09PHXQD) Diagram

#

Description
Price

1

Bolt

0450667

$5.56

1

Bolt

0450667

$5.56

2

Pod, Handlebar, Black

0452892-070

Unavailable

3

BOLT

0453256

$5.56

3

BOLT

0453256

$5.56

4

Mirror, RH

0453288

$18.89

5

GRIP, HANDLEBAR

0453370

$28.32

5

GRIP, HANDLEBAR

0453370

$28.32

6

Lever, Brake, RH

0454075

$23.81

7

Seat, Lever, RH

0454076

$69.84

8

Asm., Lever, RH

0453311

$69.84

9

CHOKE, CABLE, MANUAL

0453773

$48.56

10

CABLE, THROTTLE

0453099

$52.60

11

CLAMP, HANDLEBAR, LOWER

0452685

$34.90

11

CLAMP, HANDLEBAR, LOWER

0452685

$34.90

12

Asm., Lever, LH

0453284

Unavailable

13

Lever, Brake, LH

0450693

$28.32

14

NUT

0450808

$2.38

15

Lock, Brake, Park

0453285

$8.73

16

BOLT, BRAKE LEVER

0450807

$7.14

17

SWITCH, SENSOR, BRAKE

0453286

$72.84

18

Cam, Brake Wide

0452642

$104.75

19

BOLT

0453977

$3.97

20

Asm., Switch, LH

0453314

Unavailable

21

HANDLEBAR

0453232

$72.84

22

CLAMP, HANDLEBAR, UPPER

0452688

$34.90

22

CLAMP, HANDLEBAR, UPPER

0452688

$34.90

23

Bracket, Pod

0452893

$29.51

24

Mirror, LH

0453289

$18.89

25

ASM-THROTTLE CLAMP

2010191

$36.41

26

Asm., Throttle Control, 2x4

2010204

$59.52

27

O-RING

5411439

$2.41

28

COVER, THROTTLE CONTROL

5434113

$36.41

29

Adjuster, Cable, Brake

0454260

Unavailable
