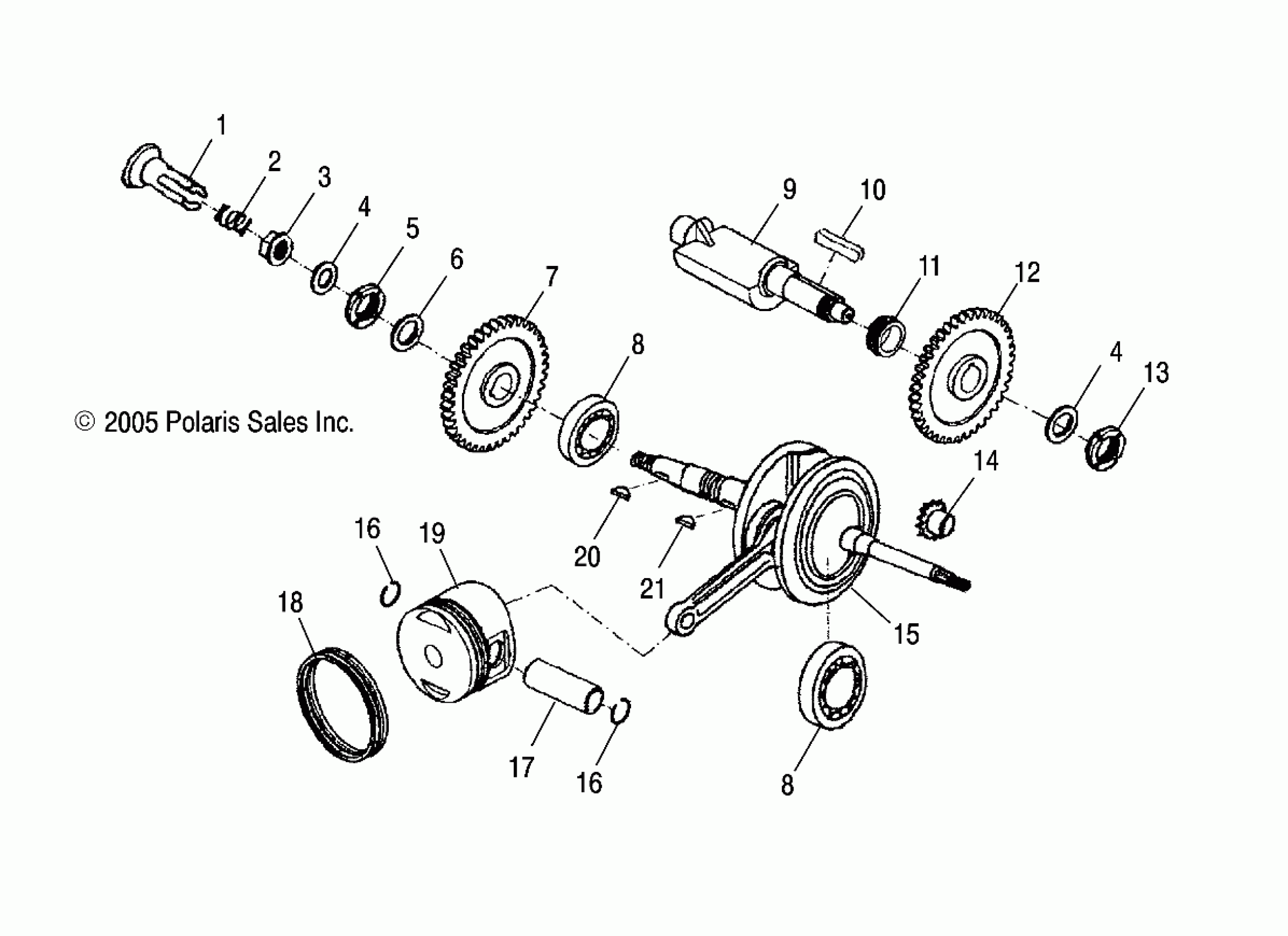

Polaris PHOENIX 200 QUAD - A10PB20EB ENGINE, CRANKSHAFT and PISTON - A10PB20EB (4999202509920250A05) Diagram

#

Description
Price

1

TUBE, OIL, CRANKSHAFT

0452445

$13.29

2

Spring, Oil

0452444

$5.65

3

Nut, Flange

0452442

$9.99

4

WASHER

0450264

$3.97

4

WASHER

0450264

$3.97

5

Nut, Lock

0452441

$8.99

6

Washer, Gear

0452440

$4.76

7

Gear, Balance

0452434

$97.76

8

Bearing, Ball

0452427

$57.13

8

Bearing, Ball

0452427

$57.13

9

Shaft, Balance

0452435

$84.99

10

KEY, WOODRUFF

0452439

$7.94

11

SPROCKET, OIL PUMP

0452436

$40.46

12

GEAR, BALANCE, DRIVEN

0452437

$84.43

13

NUT, LOCK

0452438

$8.99

14

Sprocket, Timing

0452428

Unavailable

15

Kit, Crankshaft

0453752

$829.99

16

Clip, Piston Pin

0452443

$3.97

16

Clip, Piston Pin

0452443

$3.97

17

Pin, Piston

0452433

$23.81

18

Ring [Set]

0452431

$71.24

19

Piston

0452432

$123.49

20

KEY, WOODRUFF

0452429

$6.10

21

Key, Woodruff

0452430

$6.65
