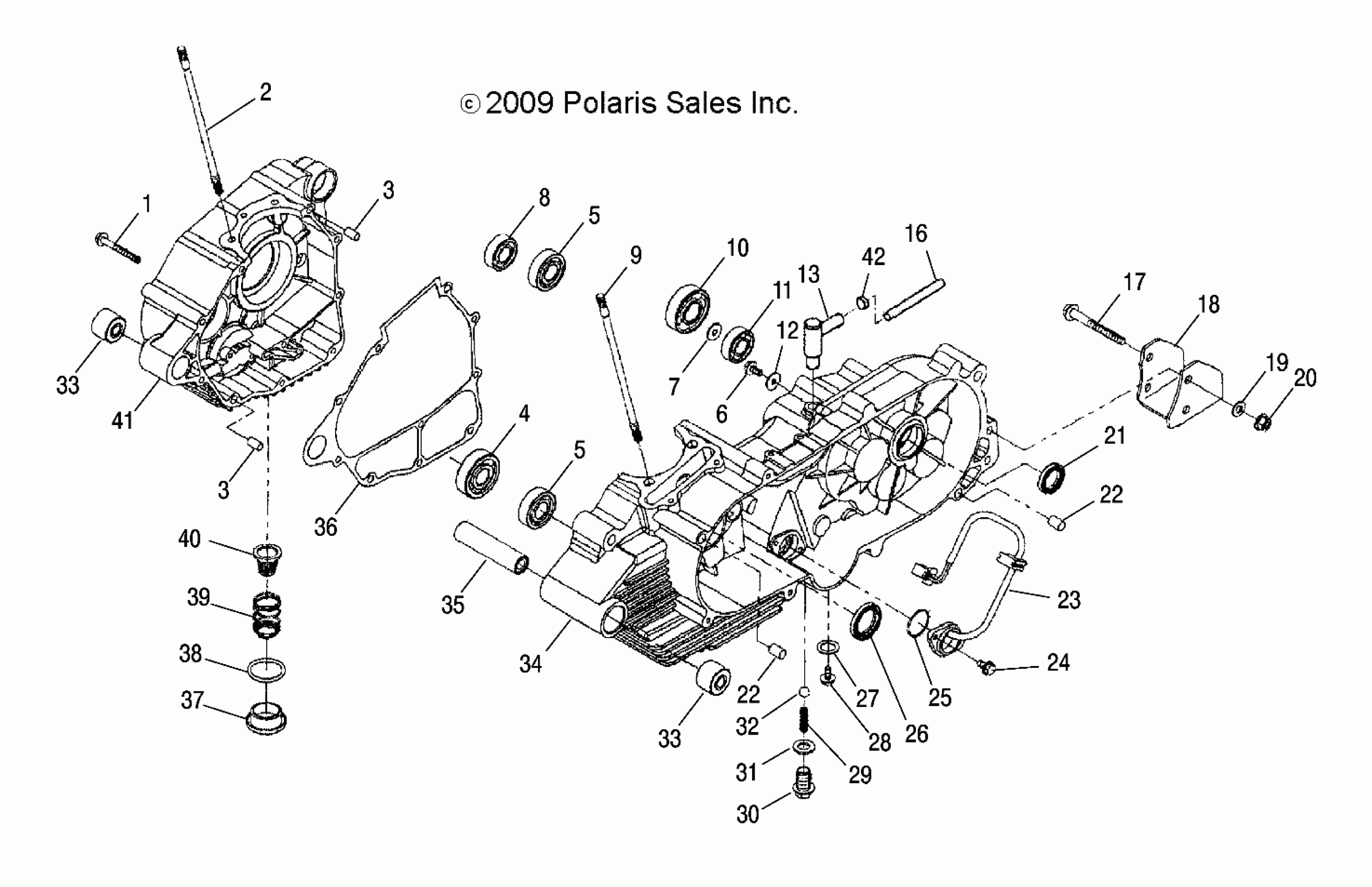

Polaris PHOENIX 200 QUAD - A10PB20EB ENGINE, CRANKCASE - A10PB20EB (49ATVCRANKCASE10PHXQD) Diagram

#

Description
Price

-

Asm., Engine

0454113

$3,889.99

1

BOLT

0452344

$4.35

2

BOLT, STUD

0452335

$12.21

3

PIN, DOWEL

0452342

$3.97

3

PIN, DOWEL

0452342

$3.97

4

BEARING, BALL

0452345

$35.71

5

BEARING, BALL

0452348

$31.75

5

BEARING, BALL

0452348

$31.75

6

BOLT

0452330

$4.35

7

WASHER, FLAT

0452374

$5.56

8

BEARING, MAIN TRANSMISSION SHAFT

0452156

$15.87

9

BOLT, STUD

0452336

$12.99

10

BEARING, BALL

0452349

$35.71

11

BEARING, NEEDLE

0452373

$35.71

12

WASHER, FLAT

0452337

$4.35

13

Breather, Crankcase, Lower

0452125

$13.99

16

HOSE, VENT

0452326

$8.99

17

BOLT

0452324

$7.99

18

BRACKET, MOTOR MOUNT

0452323

$44.51

19

WASHER, FLAT

0452325

$4.35

20

NUT

0450268

$0.79

21

SEAL, OIL

0452340

$12.13

22

PIN, DOWEL

0450142

$3.97

22

PIN, DOWEL

0450142

$3.97

23

SWITCH

0452329

$44.99

24

BOLT

0452138

$3.17

25

O-RING

0452129

$1.60

26

SEAL, OIL

0452341

$40.46

27

WASHER, FLAT

0452133

$4.74

28

BOLT, DRAIN PLUG

0452132

$5.99

29

SPRING, DETENT

0452135

$1.59

30

BOLT

0452137

$7.14

31

WASHER, FLAT

0452136

$4.35

32

BALL, STEEL

0452134

$5.65

33

BUSHING, RUBBER

0452319

$7.14

33

BUSHING, RUBBER

0452319

$7.14

34

Crankcase, LH

0454813

$599.99

35

SPACER, COLLAR

0452320

$10.32

36

GASKET

0452321

$24.27

37

Cap, Oil Fill

0454689

$33.24

38

O-RING, DRAIN PLUG

0452371

$1.99

39

SPRING, SCREEN

0452370

$16.14

40

SCREEN

0452369

$16.14

41

CRANKCASE, RH

0454811

$294.99

42

Clip

0450054

$1.19
