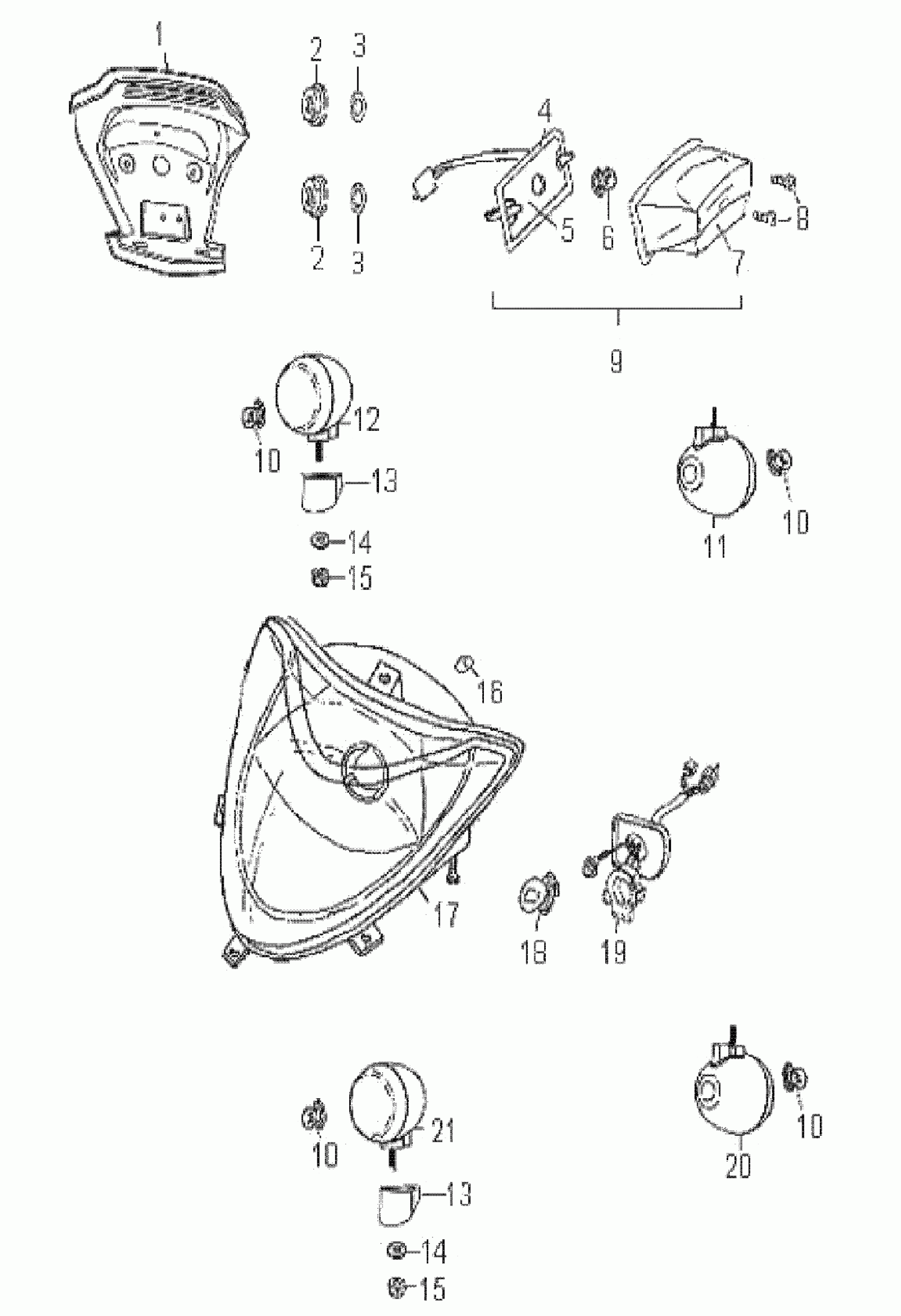

Polaris PHOENIX 200 QUAD - A10PB20EB ELECTRICAL, HEADLIGHT and TAILLIGHT - A10PB20EB (49ATVHEADLIGHT08PHXQD) Diagram

#

Description
Price

1

Mount, License Plate

0452833

$21.70

2

NUT

0450880

$3.99

2

NUT

0450880

$3.99

3

WASHER

0450041

$4.79

3

WASHER

0450041

$4.79

4

GASKET, TAILLIGHT

0451799

$6.39

5

Socket, Taillight

0451800

$40.46

6

BULB, TAILLIGHT

0452830

$9.59

7

LENS, TAILLIGHT

0452995

Unavailable

8

BOLT

0451801

$3.99

9

Asm., Taillight [Incl. 4-8]

0454722

Unavailable

10

Bulb, Signal, Amber, 12V/10W

0453260

$10.71

10

Bulb, Signal, Amber, 12V/10W

0453260

$10.71

10

Bulb, Signal, Amber, 12V/10W

0453260

$10.71

10

Bulb, Signal, Amber, 12V/10W

0453260

$10.71

11

Signal, Turn, Rear, RH

0454061

$28.56

12

Signal, Turn, Front, RH

0454063

$27.60

13

Mount, Turn Signal

0452828

$27.79

13

Mount, Turn Signal

0452828

$27.79

14

WASHER

0450710

$1.49

14

WASHER

0450710

$1.49

15

Nut

0454064

$0.79

16

Bulb, 12V/35W, Parking

0453183

$4.15

17

Asm., Headlight

0453139

$173.95

18

BULB, HEADLIGHT

0453141

$48.39

19

Socket, Headlight

0453140

$59.99

20

Signal, Turn, Rear, LH

0454060

Unavailable

21

Signal, Turn, Front, LH

0454062

$28.56
