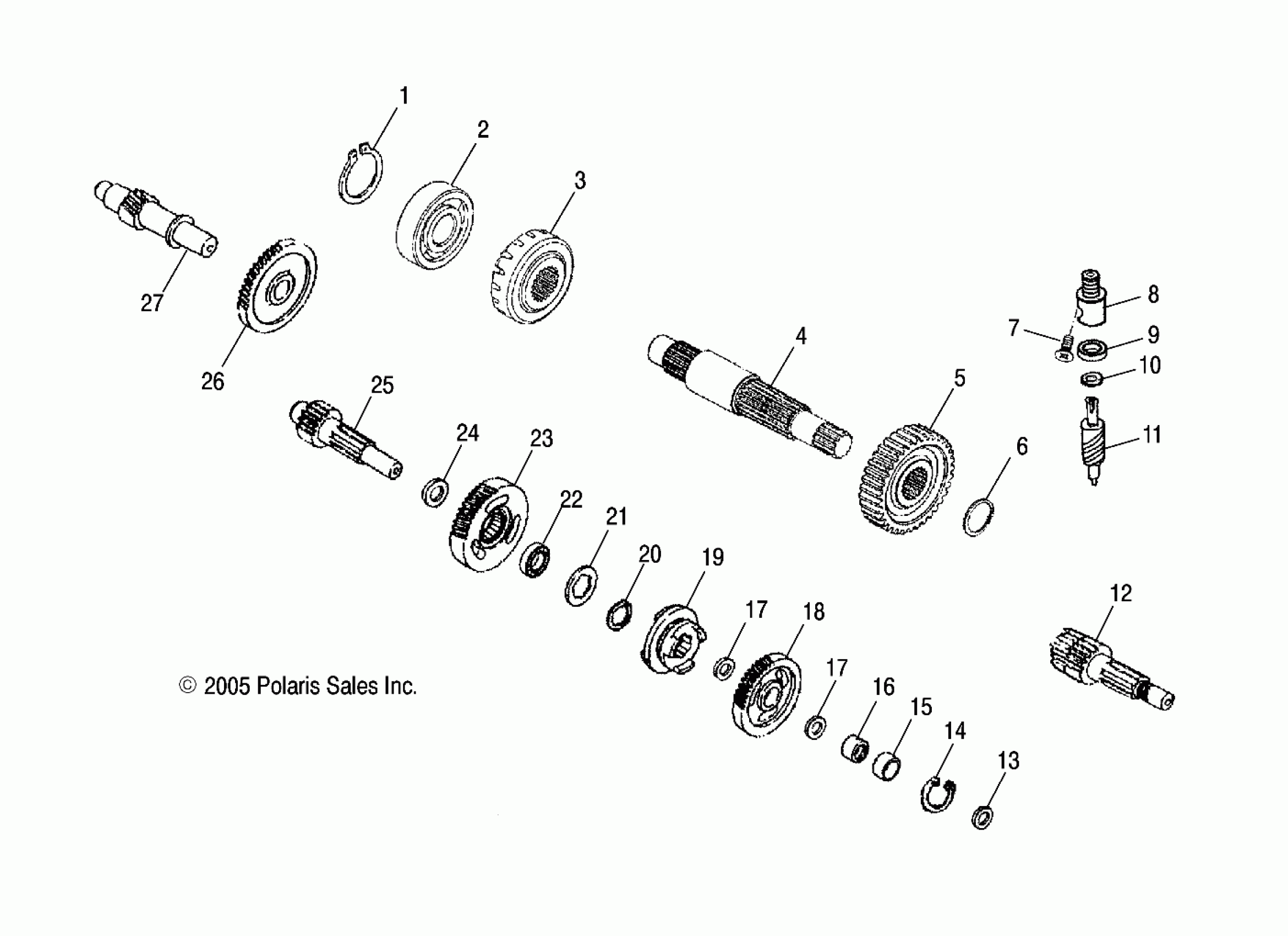

Polaris PHOENIX 200 QUAD - A10PB20EB DRIVE TRAIN, TRANSMISSION - A10PB20EB (4999202509920250A14) Diagram

#

Description
Price

-

Asm., Reverse Gear [Incl. 22,23]

0452519

$145.70

-

Asm., Spur Gear [Incl. 16,18]

0452514

$97.76

1

CLIP, RETAINER

0452339

$3.97

2

BEARING, BALL

0452349

$35.71

3

GEAR, FINAL RING

0452531

$119.98

4

SHAFT

0452528

$93.08

5

GEAR

0452530

$119.98

6

CLIP, CIR

0453779

$4.76

7

Bolt, Phillips, Flat Head

0452851

$0.79

8

Joint, Gear

0452850

$29.05

9

Seal, Oil

0452849

$5.71

10

Washer, Plain

0452848

$0.63

11

Gear, Meter

0452847

$42.65

12

SHAFT, DRIVE

0452525

$114.99

13

WASHER, FLAT

0452524

$4.99

14

CLIP, CIR

0450187

$3.97

15

COLLAR, SHAFT

0453120

$23.81

16

BUSHING

0452516

$6.64

17

WASHER, FLAT

0452513

$5.22

17

WASHER, FLAT

0452513

$5.22

18

Flywheel

0454227

$369.99

19

Ratchet-Shift

0452517

$89.03

20

Ring, Retainer

0452789

$6.10

21

WASHER, SPLINE

0452518

$9.99

22

BEARING, NEEDLE

0452521

$18.99

23

Gear, Reverse

0452520

$80.94

24

WASHER, FLAT

0452522

$10.32

25

SHAFT, TRANSMISSION

0453551

$106.65

26

GEAR, COUNTER

0452527

$109.27

27

SHAFT, COUNTER

0452526

$88.87
