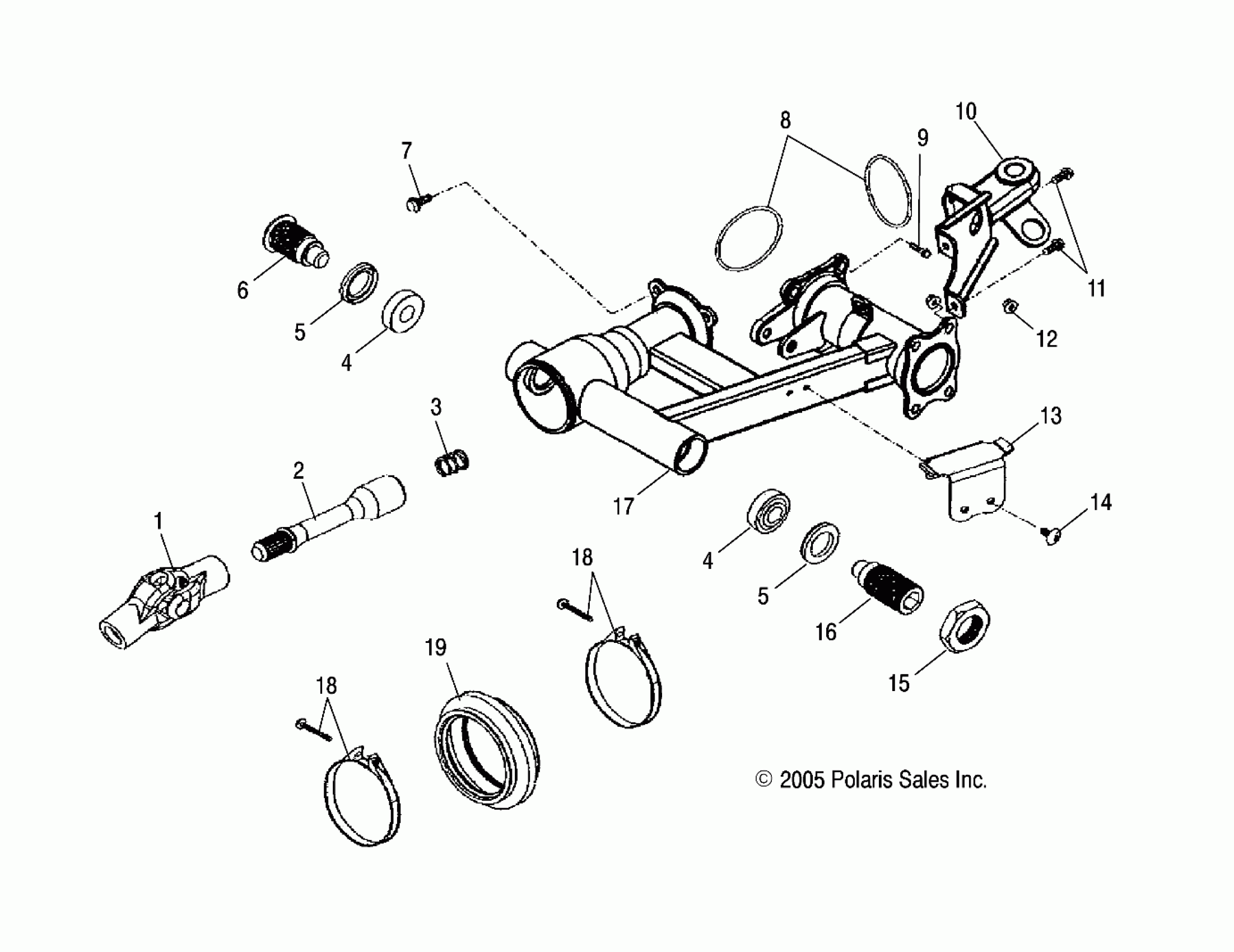

Polaris PHOENIX 200 QUAD - A10PB20EB CHASSIS, REAR SWING ARM - A10PB20EB (4999202509920250B06) Diagram

#

Description
Price

1

JOINT, UNIVERSAL

0452607

$266.25

2

SHAFT, DRIVE

0452606

$104.99

3

SPRING

0452605

$7.27

4

BEARING

0452608

$75.99

4

BEARING

0452608

$75.99

5

SEAL, OIL

0452609

$20.22

5

SEAL, OIL

0452609

$20.22

6

BOLT, PIVOT

0452610

$74.19

7

BOLT

0452614

$3.97

8

O-RING

0452613

$2.83

9

BOLT

0452615

$5.70

10

Bracket, Trailer Hook

0452861

Unavailable

11

Bolt, Hex w/Spring Washer

0454056

$4.76

12

NUT

0453866

$1.59

13

Retainer, Brake Line

0452860

$3.30

14

Screw, Tapping

0451703

$3.97

15

NUT, LOCK

0452612

$29.99

16

BOLT, PIVOT

0452611

$42.74

17

Arm, Swing, Silver

0452859-385

$199.21

18

CLAMP

0452617

$10.32

18

CLAMP

0452617

$10.32

19

BOOT

0452616

$15.10
