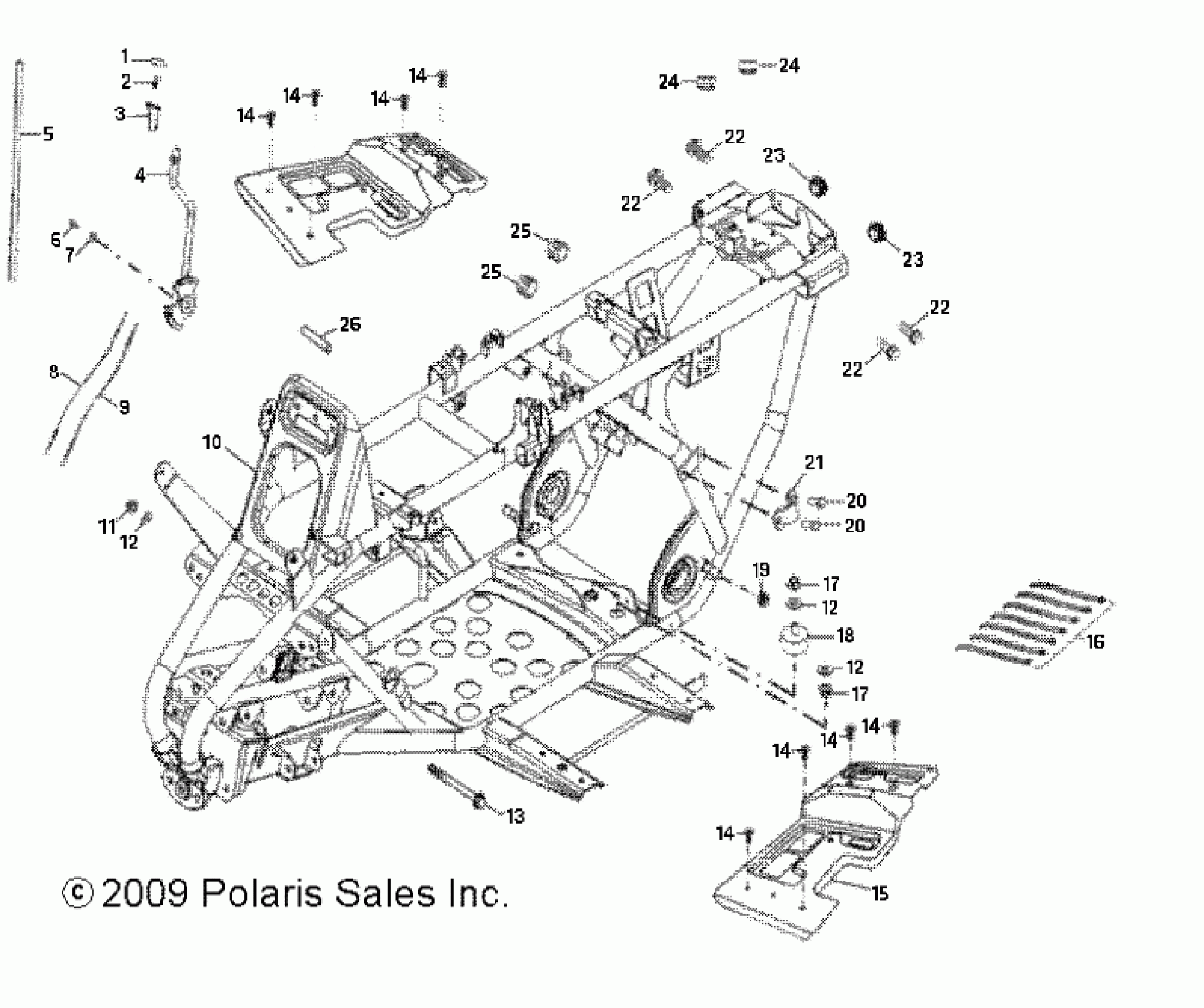

Polaris PHOENIX 200 QUAD - A10PB20EB CHASSIS, FRAME - A10PB20EB (49ATVFRAME10PHXQD) Diagram

#

Description
Price

1

COVER

0450967

$11.32

2

BOLT

0454011

$3.97

3

KNOB, TRANSMISSION LEVER

0452168

$9.70

4

LEVER, SHIFT

0454232

$104.99

5

TRIM, RUBBER

0452603

$7.27

6

BOLT

0450298

$2.38

7

WASHER, FLAT

0452198

$3.17

8

CABLE, SHIFT

0454233

$71.10

9

CABLE, SHIFT

0454234

$53.32

10

Asm., Frame, Black

0454257-067

$959.03

11

NUT, LOCK

0450276

$3.97

12

WASHER

0450279

$3.17

12

WASHER

0450279

$3.17

12

WASHER

0450279

$3.17

13

BOLT

0452599

$11.99

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

15

PLATE, FOOTWELL

0452594

$57.76

16

STRAP

0450559

$2.41

17

NUT

0453866

$1.59

17

NUT

0453866

$1.59

18

MOUNT, ENGINE

0452592

$52.60

19

NUT

0452799

$4.76

20

BOLT

0453762

$4.76

20

BOLT

0453762

$4.76

21

BRACKET, KICK START

0452602

$8.89

22

Bolt

0452858

$0.79

22

Bolt

0452858

$0.79

22

Bolt

0452858

$0.79

22

Bolt

0452858

$0.79

23

CAP, RUBBER

0453125

$4.03

23

CAP, RUBBER

0453125

$4.03

24

Rubber, Seat

0450290

$7.14

24

Rubber, Seat

0450290

$7.14

25

GROMMET, SEAT

0452591

$9.59

25

GROMMET, SEAT

0452591

$9.59

26

DAMPNER, FOOT BRAKE LEVER

0452596

$15.22
