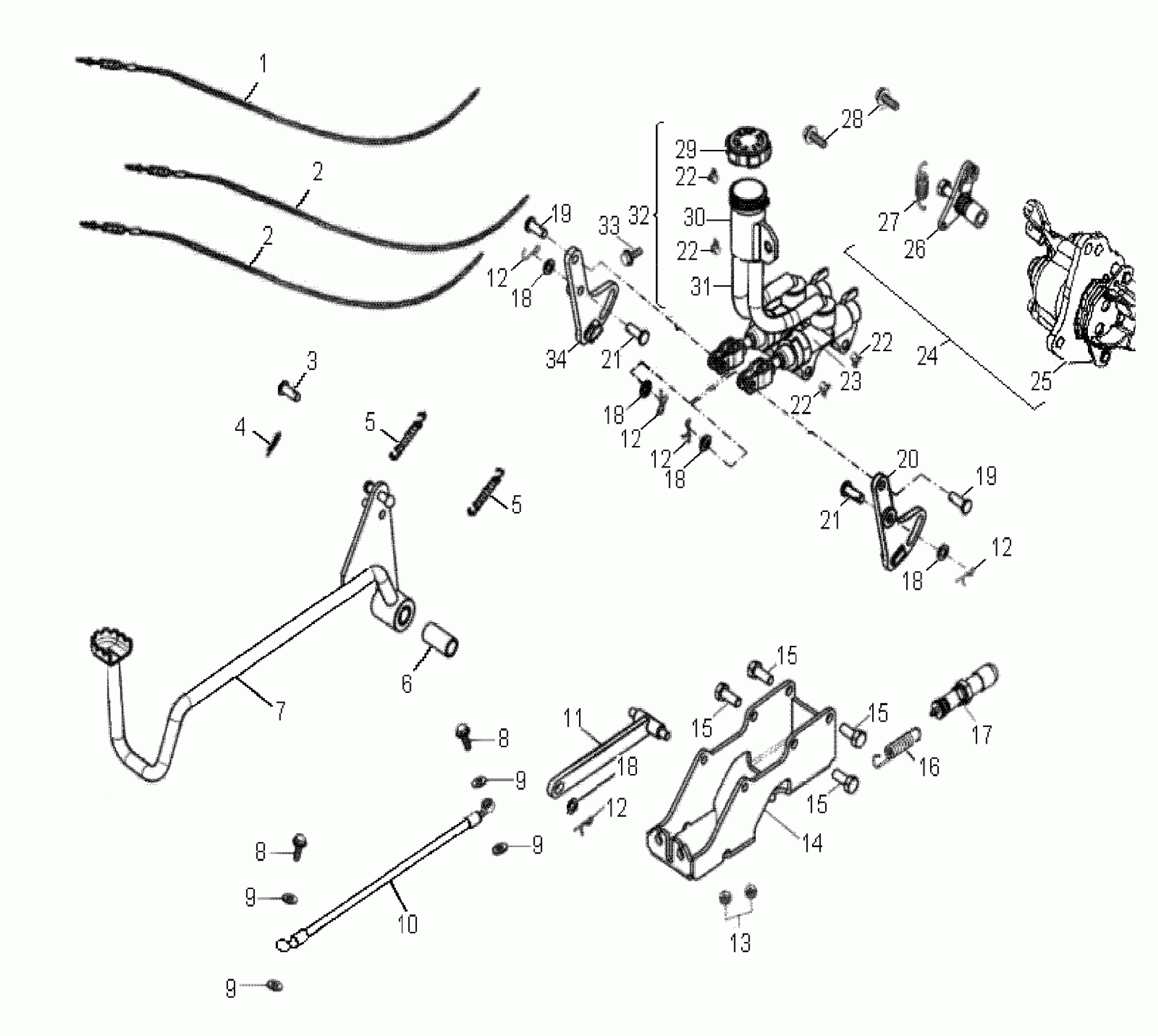

Polaris PHOENIX 200 QUAD - A10PB20EB BRAKES, REAR - A10PB20EB (49ATVBRAKERR08PHXQD) Diagram

#

Description
Price

1

Cable, Hand Brake, Rear

0452873

Unavailable

2

Cable, Brake, Front

0453272

Unavailable

2

Cable, Brake, Front

0453272

Unavailable

3

Seal

0453363

$3.97

4

PIN, COTTER

0450719

$3.17

5

Spring, Brake Lever

0452686

$5.65

5

Spring, Brake Lever

0452686

$5.65

6

BUSHING

0453274

$5.56

7

Lever, Brake, Foot

0453273

$65.87

8

BOLT, BANJO

0452871

$10.32

8

BOLT, BANJO

0452871

$10.32

9

WASHER, COPPER

0455187

$1.59

9

WASHER, COPPER

0455187

$1.59

9

WASHER, COPPER

0455187

$1.59

9

WASHER, COPPER

0455187

$1.59

10

Hose, Brake

0453301

$92.99

11

Rod, Connecting, Brake

0453278

$53.17

12

Bolt

0453282

$1.43

12

Bolt

0453282

$1.43

12

Bolt

0453282

$1.43

12

Bolt

0453282

$1.43

12

Bolt

0453282

$1.43

13

NUT

0450282

$3.17

14

Plate, Mounting, Master Cylinder

0453298

$90.48

15

BOLT

0453126

$3.97

15

BOLT

0453126

$3.97

15

BOLT

0453126

$3.97

15

BOLT

0453126

$3.97

16

Spring Brake, Foot

0454058

Unavailable

17

SWITCH, BRAKE LIGHT

0453015

$47.49

18

Washer

0453279

$0.63

18

Washer

0453279

$0.63

18

Washer

0453279

$0.63

18

Washer

0453279

$0.63

18

Washer

0453279

$0.63

19

Pin

0453281

$1.27

19

Pin

0453281

$1.27

20

Lever, Arm, LH

0453275

$49.21

21

Pin

0453280

$1.43

21

Pin

0453280

$1.43

22

CLAMP

0453300

$4.76

22

CLAMP

0453300

$4.76

22

CLAMP

0453300

$4.76

22

CLAMP

0453300

$4.76

23

Cylinder, Master

0453293

Unavailable

24

Asm., Caliper, Rear

0454072

Unavailable

25

Pad, Brake, Rear

0453812

Unavailable

26

Arm, Swing

----

Unavailable

27

Spring, Brake

0454442

Unavailable

28

Bolt

0452888

$3.17

29

Cap, Brake Reservoir

0453023

$12.30

30

Reservoir, Brake

0453299

$3.33

31

Hose, Brake Line

0453277

$4.92

32

Asm., Master Cylinder

0454074

$230.70

33

Bolt

0452816

$4.75

34

Lever, Arm, RH

0453276

$49.21
