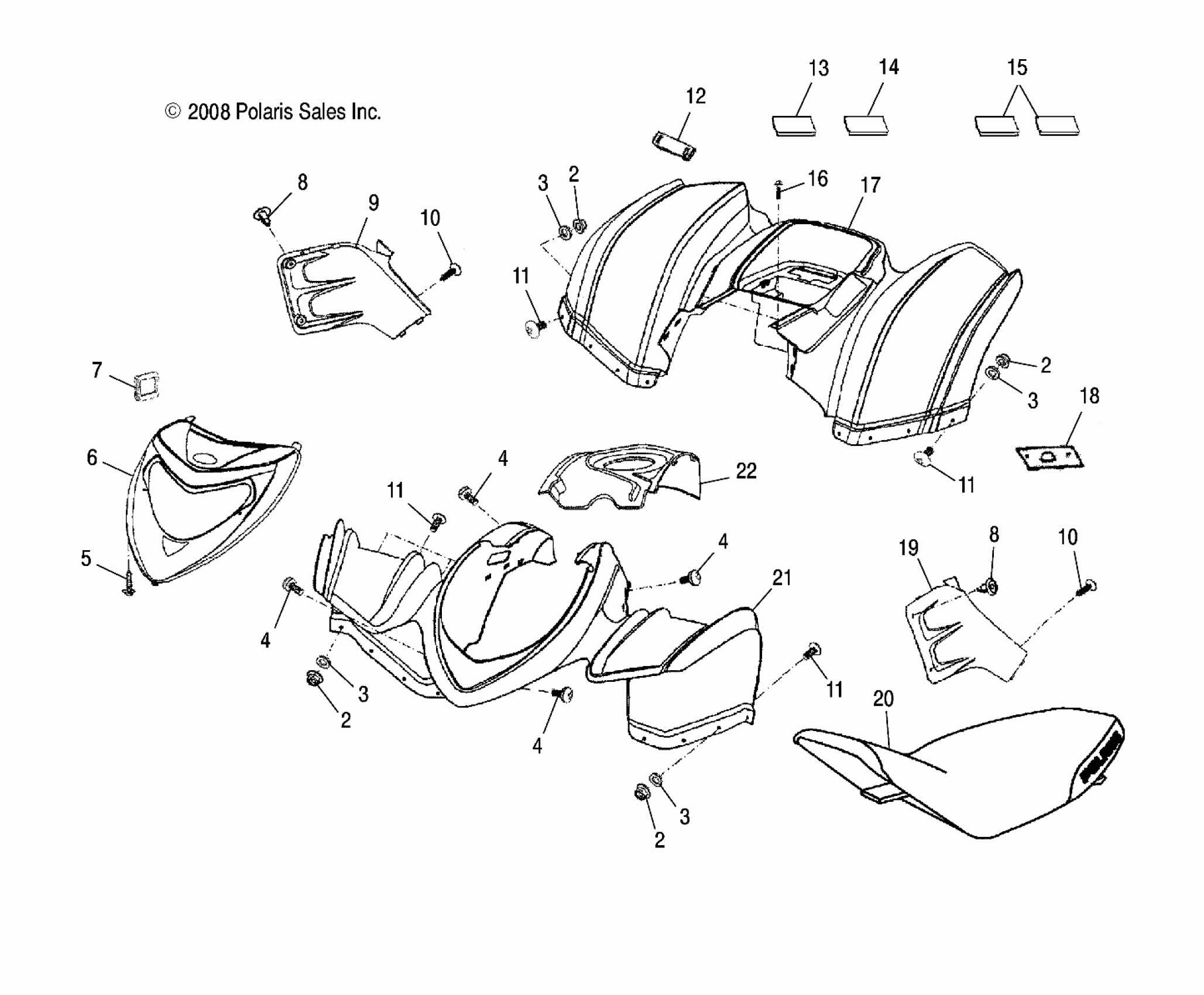

Polaris PHOENIX 200 QUAD - A10PB20EB BODY, CAB and SEAT - A10PB20EB (49ATVCAB09PHXQD) Diagram

#

Description
Price

2

NUT

0450741

$3.19

2

NUT

0450741

$3.19

2

NUT

0450741

$3.19

2

NUT

0450741

$3.19

3

WASHER, FLAT

0450710

$1.49

3

WASHER, FLAT

0450710

$1.49

3

WASHER, FLAT

0450710

$1.49

3

WASHER, FLAT

0450710

$1.49

4

BOLT

0450824

$2.39

4

BOLT

0450824

$2.39

4

BOLT

0450824

$2.39

4

BOLT

0450824

$2.39

5

SCREW

0450040

$3.19

6

Asm., Cover, Headlight, White

0454001-133

$80.94

7

Boot, Shift, Rubber

0452662

$23.99

8

RIVET

0451076

$1.49

8

RIVET

0451076

$1.49

9

Panel, Side, RH, White

0452653-133

$143.99

10

SCREW

0451703

$3.99

10

SCREW

0451703

$3.99

11

BOLT

0450622

$2.39

11

BOLT

0450622

$2.39

11

BOLT

0450622

$2.39

11

BOLT

0450622

$2.39

12

STRAP, BATTERY, RUBBER

0452660

$8.79

13

RUBBER, BATTERY

0452778

$19.99

14

Rubber, Battery

0450346

$2.39

15

RUBBER, BATTERY

0452779

$19.99

16

BOLT

0452215

$3.99

17

Cab, Rear, Red

0454252-293

Unavailable

18

Pad, Protector

0450345

$39.99

19

Panel, Side, LH, White

0452651-133

$135.99

20

SEAT

0453083

$409.49

21

Cab, Front, Red

0454066-293

Unavailable

22

Cover, Fuel Tank, White

0453800-133

$87.19
