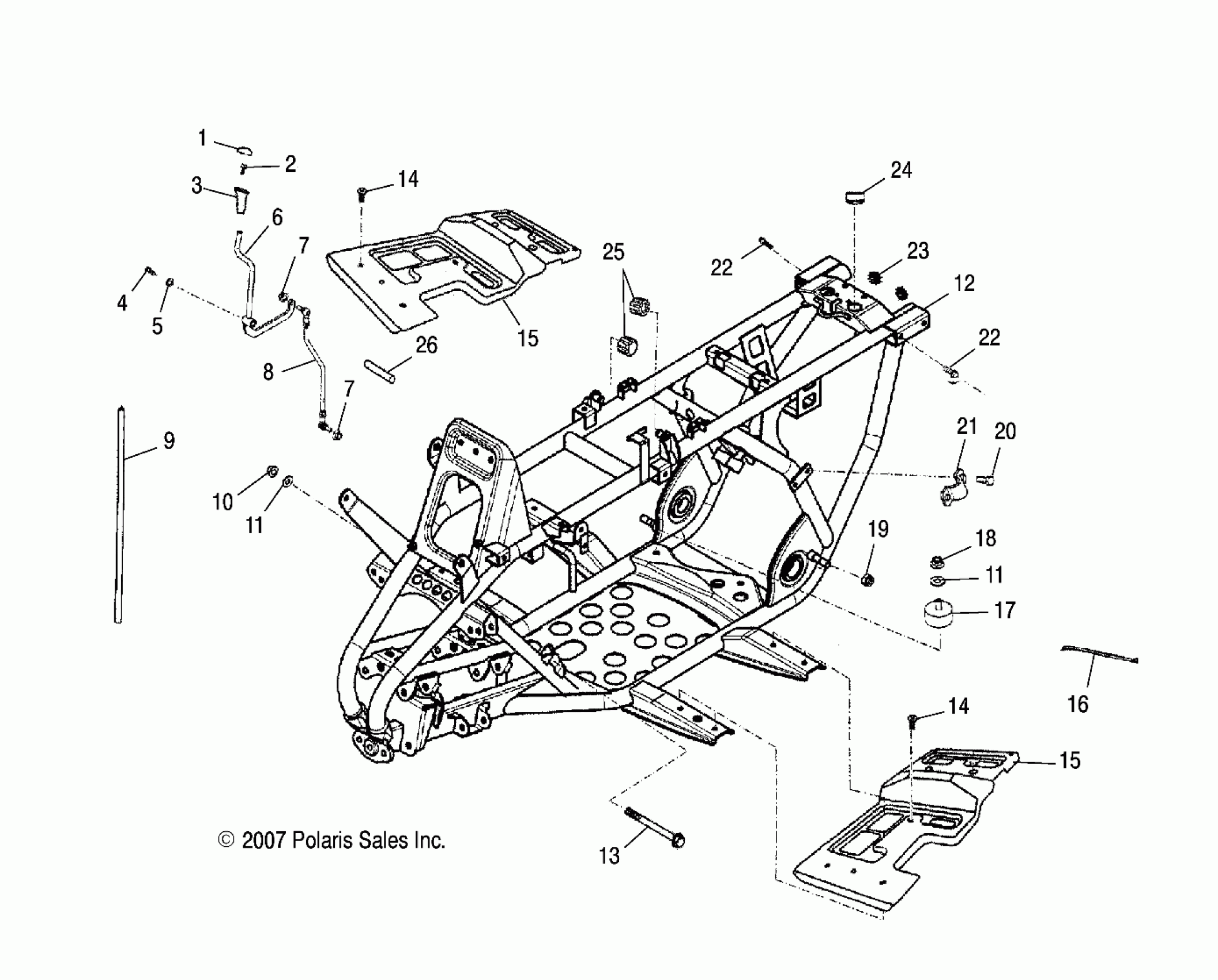

Polaris PHOENIX 200 QUAD - A08PB20EB CHASSIS, FRAME - A08PB20EB (49ATVFRAME08PHXQD) Diagram

#

Description
Price

1

COVER

0450967

$10.39

2

Bolt

0450309

Unavailable

3

KNOB, TRANSMISSION LEVER

0452168

$9.59

4

BOLT

0450298

$2.39

5

WASHER, FLAT

0452198

$3.19

6

Lever, Shift

0452601

Unavailable

7

NUT

0450268

$1.49

7

NUT

0450268

$1.49

8

Linkage, Shift

0452600

Unavailable

9

TRIM, RUBBER

0452603

$6.39

10

NUT, LOCK

0450276

$3.99

11

WASHER

0450279

$3.19

11

WASHER

0450279

$3.19

12

Asm., Frame, Black

0454266-067

$971.41

13

BOLT

0452599

$9.59

14

BOLT

0453242

$3.99

14

BOLT

0453242

$3.99

15

PLATE, FOOTWELL

0452594

$51.99

15

PLATE, FOOTWELL

0452594

$51.99

16

STRAP

0450559

$2.39

17

MOUNT, ENGINE

0452592

$51.99

18

Nut

0450882

Unavailable

19

NUT

0452799

$4.79

20

BOLT

0453762

$4.79

21

BRACKET, KICK START

0452602

$8.79

22

Bolt

0452858

$1.49

22

Bolt

0452858

$1.49

23

CAP, RUBBER

0453125

$3.99

24

Rubber, Seat

0450290

$7.19

25

GROMMET, SEAT

0452591

$8.79

26

DAMPNER, FOOT BRAKE LEVER

0452596

$12.79
