- PHOENIX 200 - A14PB20AF
SUSPENSION, SHOCKS - A14PB20AF (49ATVSUSP08PHX)

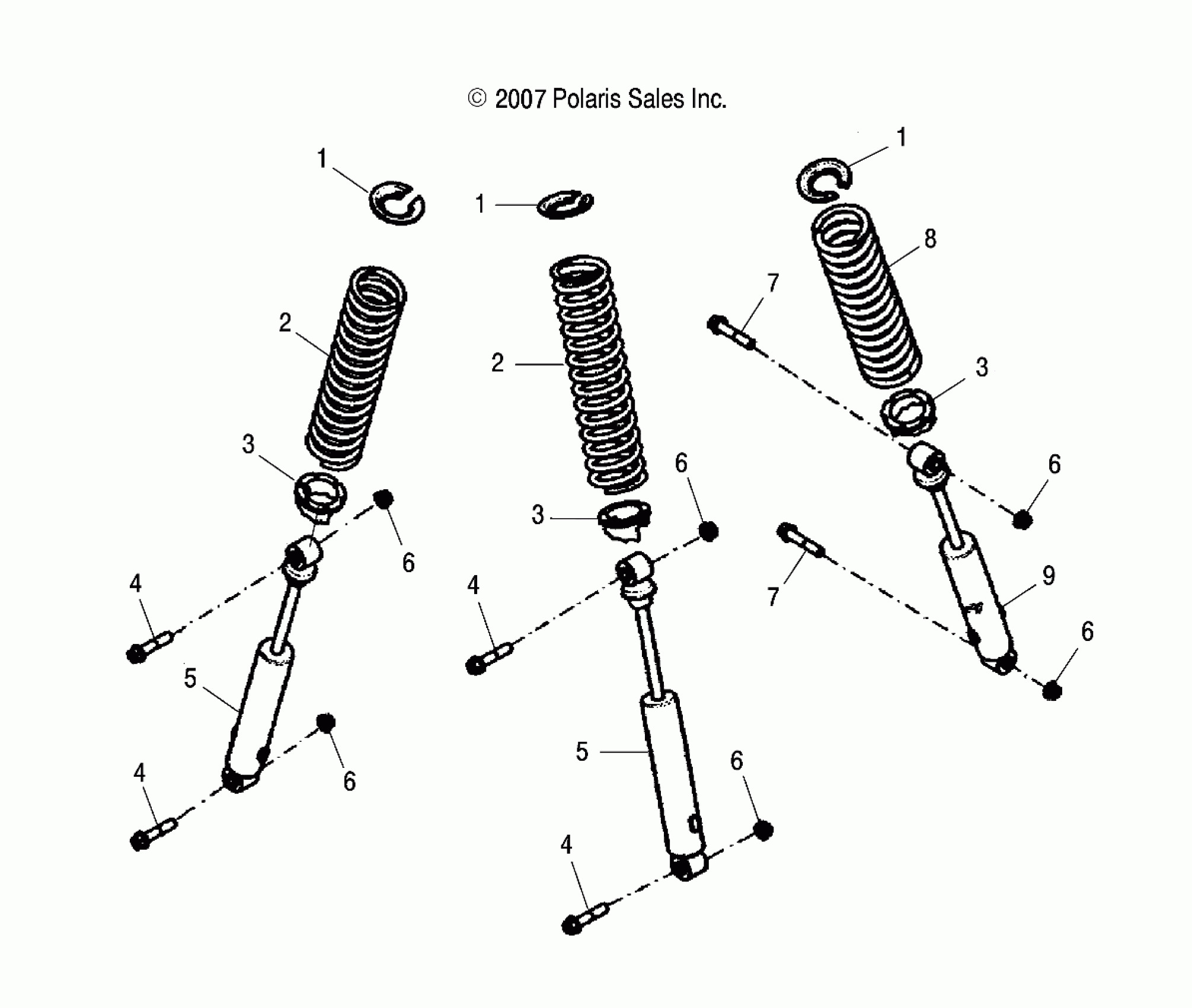

Polaris PHOENIX 200 - A14PB20AF SUSPENSION, SHOCKS - A14PB20AF (49ATVSUSP08PHX) Diagram
#
Description
Price
1
RETAINER, SPRING
0453768
$9.59
1
RETAINER, SPRING
0453768
$9.59
1
RETAINER, SPRING
0453768
$9.59
2
SPRING- SUSP,88LBS/IN,WHITE [STD]
0452996-133
$55.99
2
SPRING, SUSP, FRONT, WHITE, 106 LBS/IN [OPT][HEAVY]
0452652-133
Unavailable
2
SPRING- SUSP,88LBS/IN,WHITE [STD]
0452996-133
$55.99
2
SPRING, SUSP, FRONT, WHITE, 106 LBS/IN [OPT][HEAVY]
0452652-133
Unavailable
3
COLLAR, ADJUSTMENT, SHOCK
0453787
$23.99
3
COLLAR, ADJUSTMENT, SHOCK
0453787
$23.99
3
COLLAR, ADJUSTMENT, SHOCK
0453787
$23.99
4
BOLT
0450820
$5.59
4
BOLT
0450820
$5.59
4
BOLT
0450820
$5.59
4
BOLT
0450820
$5.59
5
SHOCK, FRONT, BLACK
0453788-067
$151.99
5
SHOCK, FRONT, BLACK
0453788-067
$151.99
6
Nut
0450249
$3.99
6
Nut
0450249
$3.99
6
Nut
0450249
$3.99
6
Nut
0450249
$3.99
6
Nut
0450249
$3.99
6
Nut
0450249
$3.99
7
BOLT
0452649
$3.99
7
BOLT
0452649
$3.99
8
SPRING, SUSPENSION, REAR, 240LBS/IN, WHITE
0453769-133
$55.99
9
SHOCK, SUSPENSION, REAR, BLACK
0453789-067
$179.99
