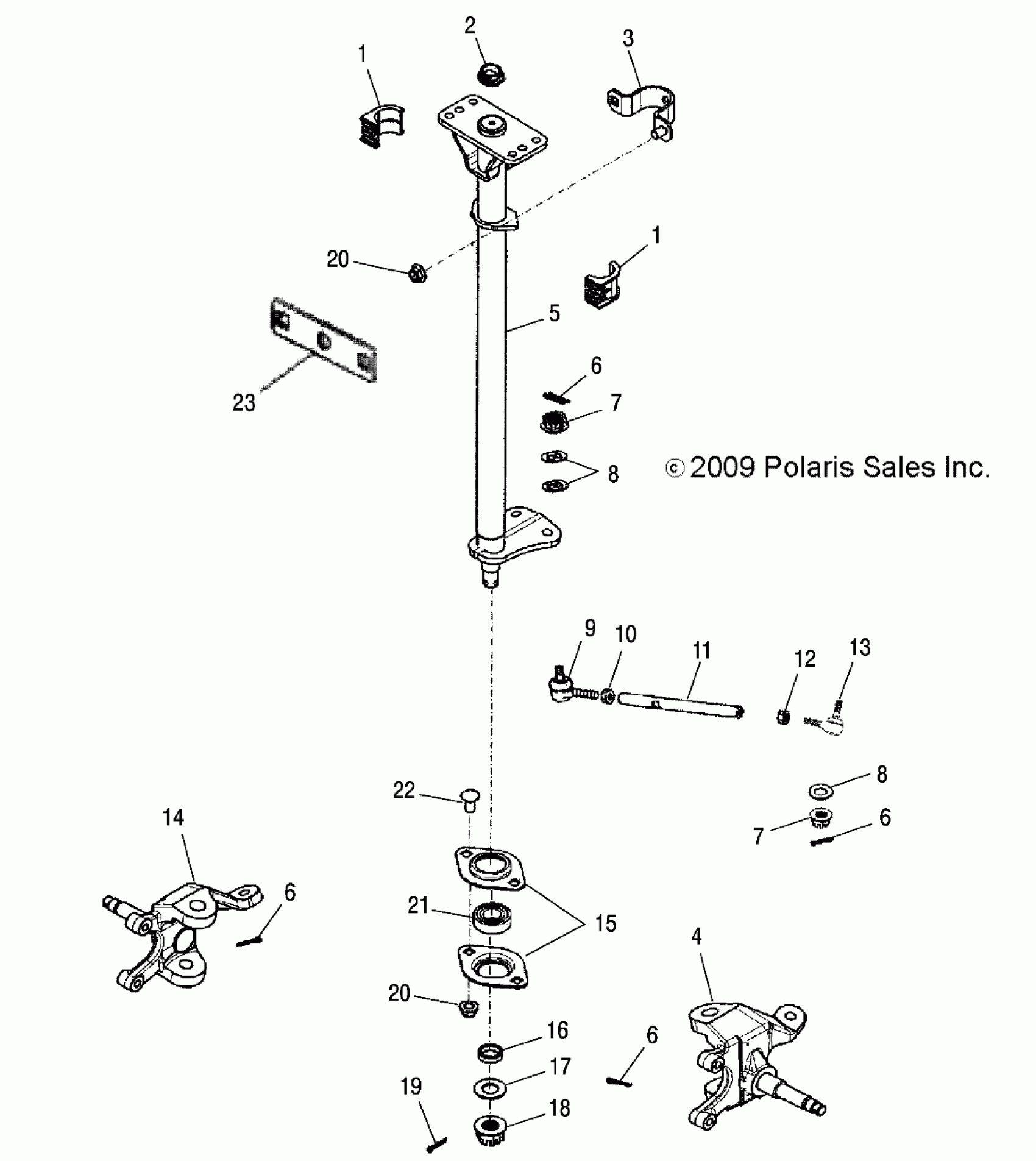

Polaris PHOENIX 200 - A14PB20AF STEERING, STEERING POST and TIE RODS - A14PB20AF (49ATVSTEERING10PHX) Diagram

#

Description
Price

1

BUSHING, STEERING, UPPER

0452709

$19.99

1

BUSHING, STEERING, UPPER

0452709

$19.99

2

CAP, RUBBER

0453125

$3.99

3

BRACKET, BUSHING, UPPER W/BOLTS

0454077

$35.99

4

ASM., KNUCKLE, LH

0454646

$343.99

5

POST, STEERING, BLACK [INCL. 2]

0454052-067

$251.99

6

PIN, COTTER

0450719

Unavailable

6

PIN, COTTER

0450719

Unavailable

6

PIN, COTTER

0450719

Unavailable

6

PIN, COTTER

0450719

Unavailable

7

NUT, CASTLE

0450502

$9.59

7

NUT, CASTLE

0450502

$9.59

8

WASHER

0450279

$3.19

8

WASHER

0450279

$3.19

9

ASM., END, TIE ROD, LH [INCL. 10]

0454743

$59.99

10

NUT, HEX

0453131

$4.79

11

TIE ROD

0453802

$43.99

12

NUT, JAM

0450224

$4.79

13

ASM., END, TIE ROD, RH [INCL. 12]

0454744

$59.99

14

ASM., KNUCKLE, RH

0454647

$343.99

15

FLANGETTE

0452707

$10.39

16

SPACER, RING

0452719

$8.79

17

WASHER

0452671

$3.99

18

NUT, CASTLE

0452669

$10.39

19

PIN, COTTER

0450395

$3.19

20

NUT

0453866

$1.59

20

NUT

0453866

$1.59

21

BEARING, BALL

0453978

$39.99

22

BOLT, CARRIAGE

0452776

$4.79

23

BRACKET, STEERING POST

0454053

$11.19
