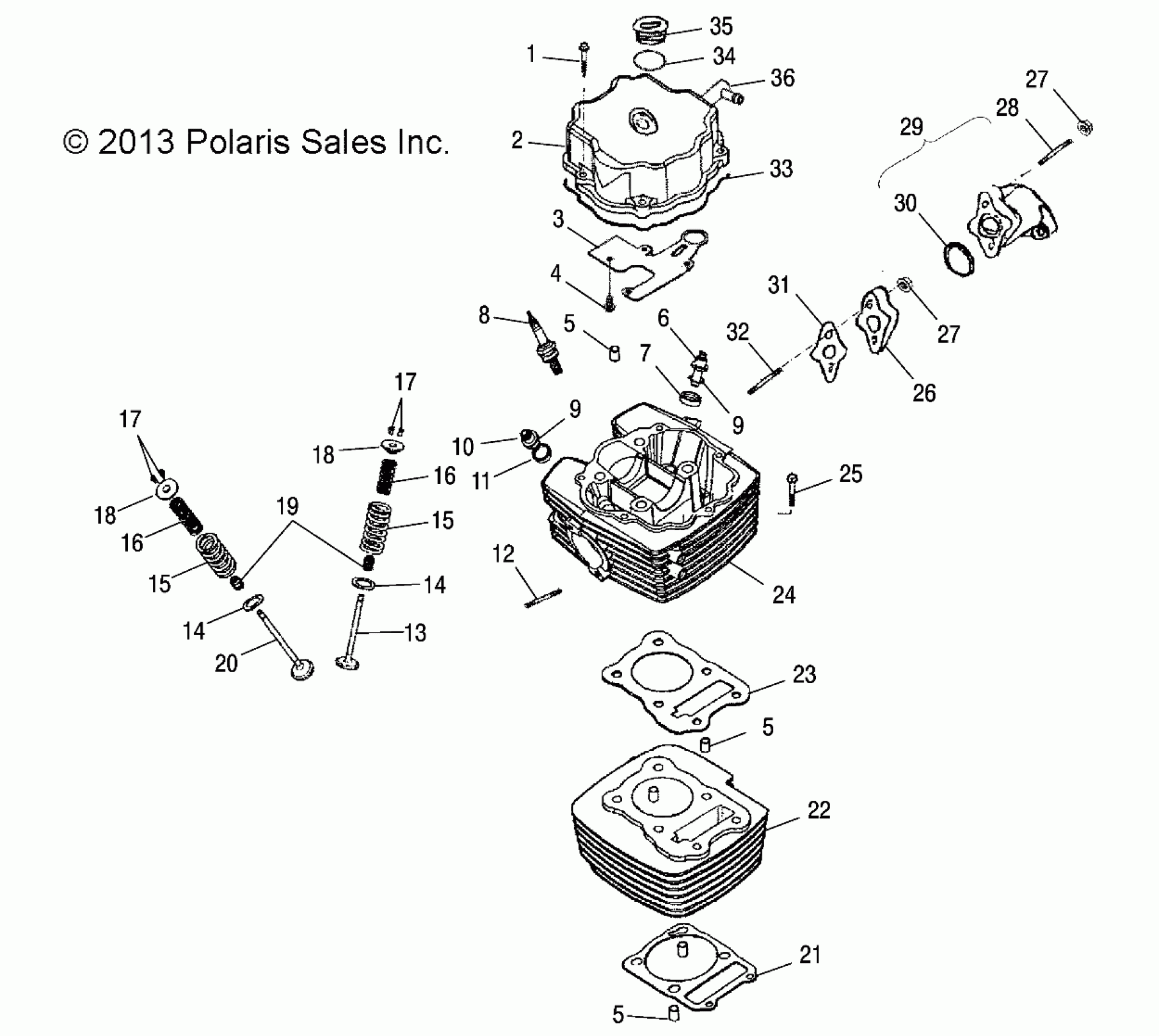

Polaris PHOENIX 200 - A14PB20AF ENGINE, CYLINDER HEAD - A14PB20AF (49ATVCYLINDERHD14PHX) Diagram

#

Description
Price

-

ASM., ENGINE W/O CARB

0454874

Unavailable

1

BOLT

0452400

$3.99

2

COVER, CYLINDER HEAD [INCL. 36]

0453750

Unavailable

3

BREATHER, CRANKCASE, LOWER

0453751

$12.79

4

SCREW

0451766

$3.19

5

PIN, DOWEL

0450142

$3.99

5

PIN, DOWEL

0450142

$3.99

5

PIN, DOWEL

0450142

$3.99

6

GUIDE, VALVE INTAKE

0452380

$23.99

7

SEAT, INTAKE

0452378

$27.99

8

PLUG, SPARK

0453034

$3.99

9

O-RING

0452382

$1.59

9

O-RING

0452382

$1.59

10

GUIDE, VALVE EXHAUST

0452381

$23.99

11

SEAT, EXHAUST

0452379

$23.99

12

BOLT, STUD

0452398

$3.99

13

VALVE, INTAKE

0452383

$79.99

14

SEAT, VALVE, SPRING, OUTER

0452388

$6.39

14

SEAT, VALVE, SPRING, OUTER

0452388

$6.39

15

SPRING, VALVE, OUTER

0452385

$7.99

15

SPRING, VALVE, OUTER

0452385

$7.99

16

SPRING, VALVE, INNER

0452386

$6.39

16

SPRING, VALVE, INNER

0452386

$6.39

17

CLIP, RETAINER

0452389

$7.19

17

CLIP, RETAINER

0452389

$7.19

18

RETAINER, VALVE, SPRING

0452387

$23.99

18

RETAINER, VALVE, SPRING

0452387

$23.99

19

SEAL, VALVE

0452390

$8.79

20

VALVE, EXHAUST

0452384

$63.99

21

GASKET, CYLINDER

0452376

Unavailable

22

CYLINDER

0452375

$271.99

23

GASKET

0452391

Unavailable

24

ASM., HEAD, CYLINDER [INCL. 6,7,9-11,13-20]

0454846

$457.59

25

BOLT

0452401

$4.79

26

INSULATOR, MANIFOLD

0452404

$12.79

27

NUT

0450880

$3.99

27

NUT

0450880

$3.99

28

BOLT, STUD

0452405

$3.99

29

ASM., MANIFOLD [INCL. 30]

0452396

$55.99

30

O-RING

0452397

$1.59

31

GASKET, MANIFOLD

0452403

Unavailable

32

BOLT, STUD

0452399

$4.35

33

GASKET-CYL HEAD

0452392

$23.99

34

O-RING

0452394

$1.59

35

CAP, HEAD COVER

0452393

$7.99

36

Breather, Crankcase, Lower

0452125

$10.39
