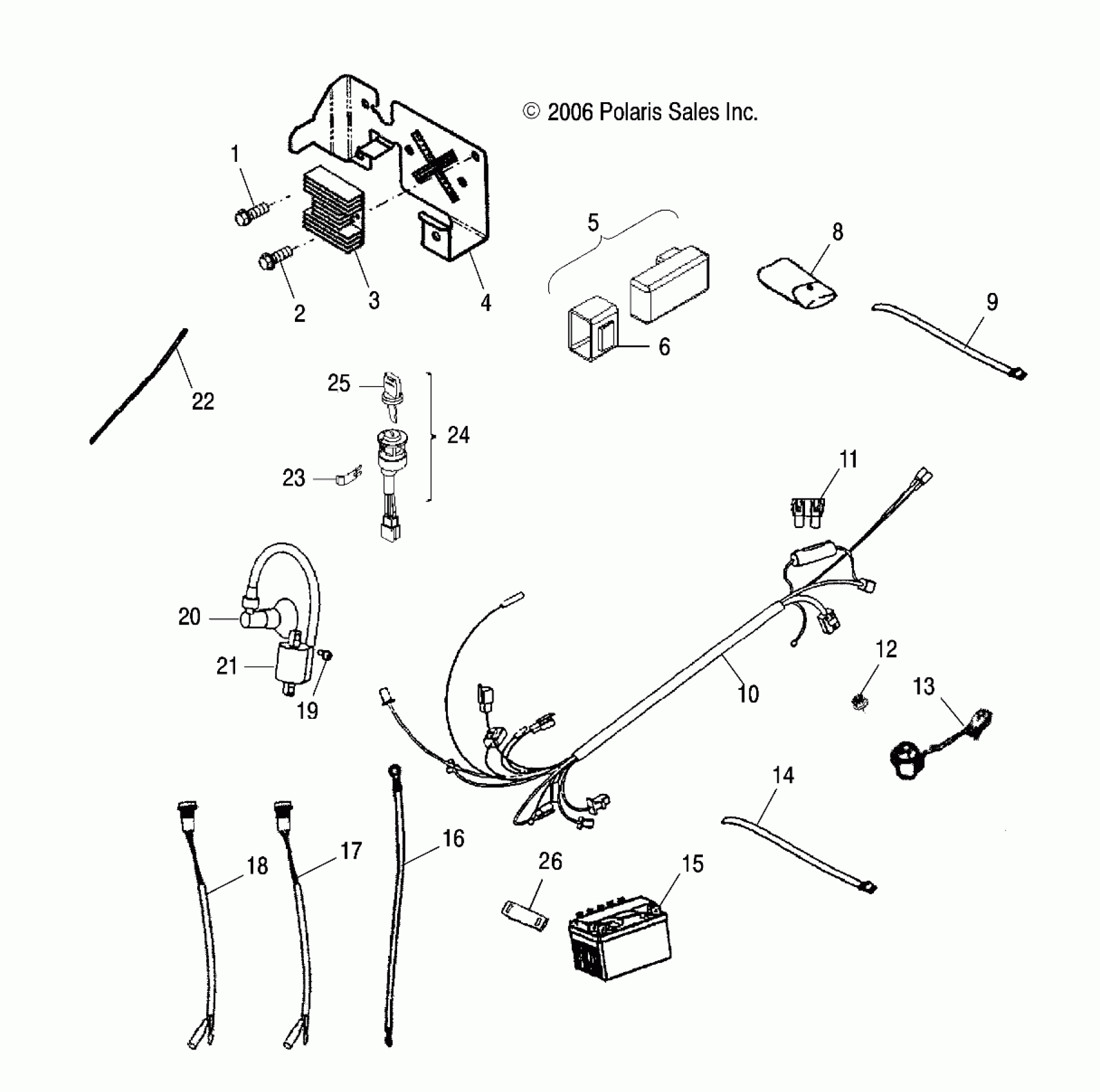

Polaris PHOENIX 200 - A14PB20AF ELECTRICAL PARTS - A14PB20AF (49ATVELECT08PHX) Diagram

#

Description
Price

1

Bolt

0452917

$3.99

2

Bolt

0450701

$1.49

3

RECTIFIER/REGULATOR-PHOENIX

0455311

$105.19

4

BRACKET, ELECTRICAL

0452764

$63.99

5

ASM., CDI [INCL. 6]

0454244

Unavailable

6

PAD, RUBBER

0453473

$23.99

8

ASM., POUCH, TOOL

0454245

$55.99

9

STRAP

0450721

$3.19

10

ASM-HARNESS,MAIN,PHOENIX

0455296

Unavailable

11

FUSE, MAIN HARNESS

0452744

$3.19

12

Nut, Flange

0450150

$1.49

13

Asm., Starter Relay

0452761

$83.99

14

STRAP

0450559

$2.39

15

BATTERY

4011434

$91.99

16

ASM., BATTERY CABLE

0452767

$47.99

17

INDICATOR, NEUTRAL

0454669

$31.99

18

INDICATOR, REVERSE

0454670

$23.99

19

BOLT

0452763

$3.19

20

CAP, SPARK PLUG

0453364

$35.99

21

ASM., IGNITION COIL

0452309

$103.99

22

CABLE, ETC, CONNECTING

0453144

$31.99

23

Clip, Main Switch

0450886

$5.59

24

Asm., Switch, Main [INCL. 23,25]

0455547

$71.99

25

KEY, BLANK, LH

0453372

$27.99

25

KEY, BLANK, RH

0453143

$13.59

26

STRAP, BATTERY, RUBBER

0452660

$8.79
