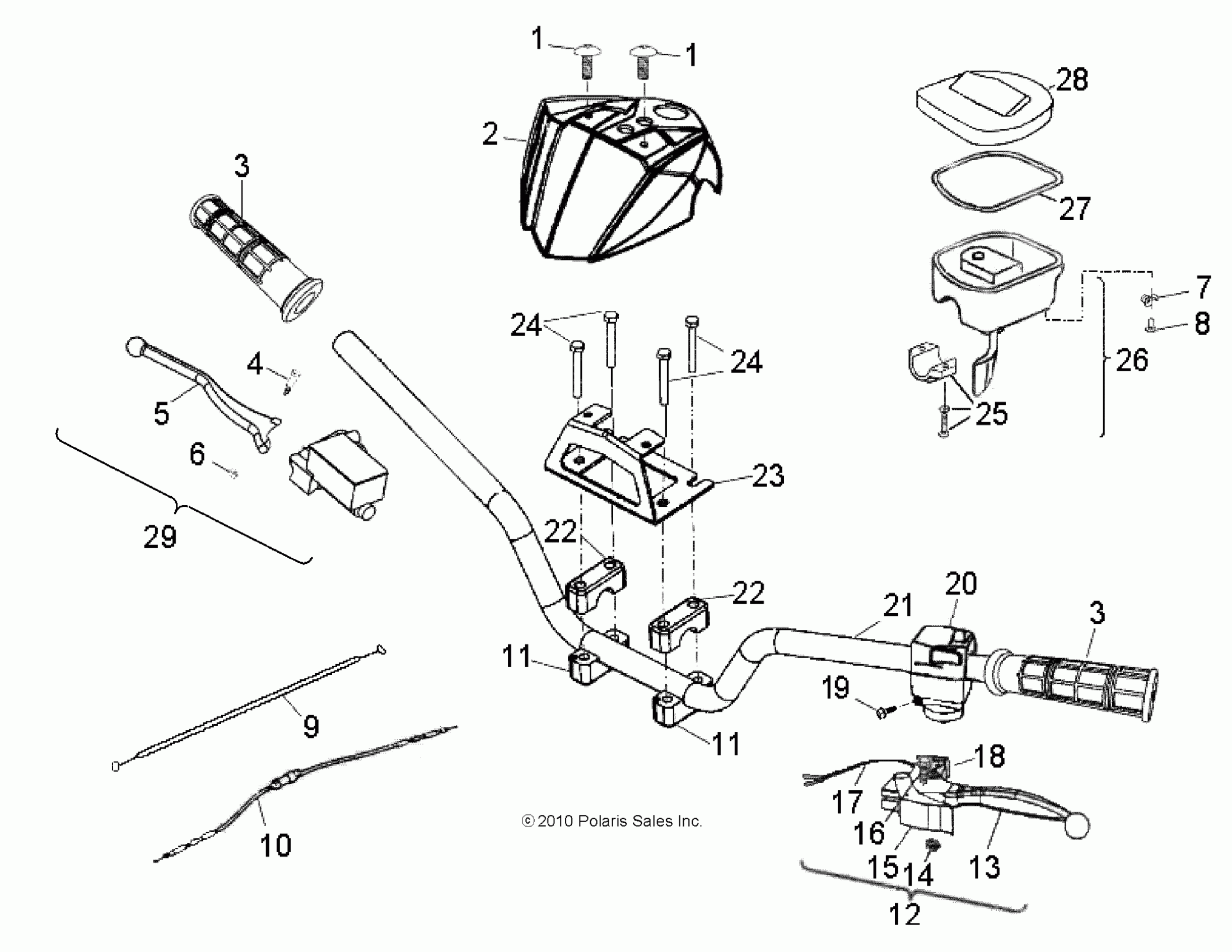

Polaris PHOENIX 200 - A13PB20AF STEERING, HANDLEBAR - A13PB20AF (49ATVHANDLEBAR11PHX) Diagram

#

Description
Price

1

BOLT

0450622

$2.38

1

BOLT

0450622

$2.38

2

POD-HANDLEBAR,PHX,B.BLUE

0455552-524

$32.37

3

GRIP, HANDLEBAR

0453370

$28.32

3

GRIP, HANDLEBAR

0453370

$28.32

4

BOLT

0453804

$4.76

5

LEVER, BRAKE, RH

0453109

$36.41

6

NUT

0453805

$3.17

7

LIMITER, THROTTLE

0454827

$39.99

8

SCREW

0450676

$1.59

9

CHOKE, CABLE, MANUAL

0453773

$48.56

10

CABLE, THROTTLE

0453099

$52.60

11

CLAMP, HANDLEBAR, LOWER

0452685

$34.90

11

CLAMP, HANDLEBAR, LOWER

0452685

$34.90

12

ASM., LEVER, BRAKE, LH

0454070

$89.03

13

LEVER, BRAKE, LH

0452691

$35.54

14

NUT

0450808

$2.38

15

LOCK, BRAKE, PARK

0453774

$69.84

16

BOLT, BRAKE LEVER

0450807

$7.14

17

SWITCH, SENSOR, BRAKE

0453286

$72.84

18

PERCH, LEVER, BRAKE

0454065

$36.41

19

BOLT

0453977

$3.97

20

ASM., SWITCH, LH

0453103

$170.99

21

HANDLEBAR

0453232

$72.84

22

CLAMP, HANDLEBAR, UPPER

0452688

$34.90

22

CLAMP, HANDLEBAR, UPPER

0452688

$34.90

23

BRACKET, POD

0452695

$48.56

24

BOLT

0453256

$5.56

24

BOLT

0453256

$5.56

25

ASM., THROTTLE CLAMP

----

Unavailable

26

Asm., Throttle Control, 2x4 [Incl. 25]

2010204

$59.52

27

O-RING

5411439

$2.41

28

COVER, THROTTLE CONTROL

5434113

$36.41

29

ASM., MASTER CYLINDER, RH [INCL. 4,5,6]

0455523

$165.94
