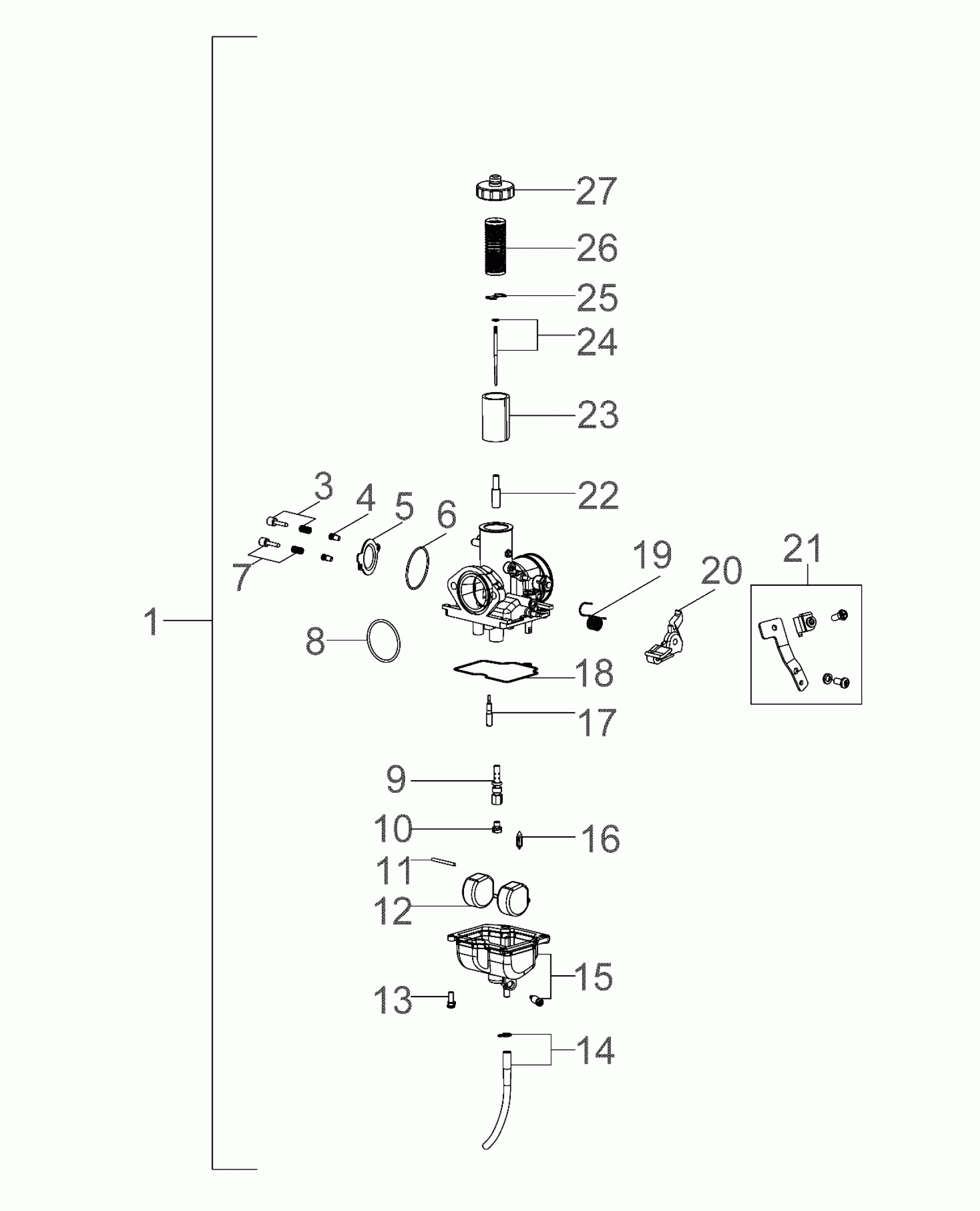

Polaris PHOENIX 200 - A13PB20AF ENGINE, CARBURETOR - A13PB20AF (49ATVCARB08PHX) Diagram

#

Description
Price

1

ASM., CARBURETOR [INCL. ALL]

0454911

Unavailable

3

ASM., SCREW, AIR

0454491

$7.19

4

ASM., SCREW

0452541

$3.19

5

COVER, DIAPHRAGM

0452547

$3.99

6

O-RING

0452550

$1.59

7

ASM., SCREW, IDLE

0452549

$5.59

8

O-RING

0452536

$1.59

9

VALVE, NEEDLE

0452545

$27.99

10

JET, MAIN

3131608

$23.99

11

PIN, FLOAT

0452534

$3.19

12

FLOAT

0452546

$35.99

13

ASM., SCREW

0452540

$3.19

14

ASM., DRAIN TUBE

0452552

$31.99

15

FLOAT, BODY

0452535

$63.99

16

VALVE, FLOAT

0452533

$27.99

17

JET, PILOT, #40

0453524

$31.99

18

GASKET, CARB, FLOAT BOWL

0453032

Unavailable

19

SPRING

0452543

$6.39

20

CHOKE, LEVER

0452538

$11.43

21

SUPPORT, CABLE

0453080

$31.99

22

NEEDLE, JET

0452539

$10.39

23

THROTTLE, VALVE, 3.5

0453525

$67.99

24

ASM., JET NEEDLE

0452551

$27.99

25

CLIP, NEEDLE [USE POSITION #4]

0452542

$3.99

26

SPRING

0453758

$4.79

27

ASM., CAP

0452544

$39.99
