- PHOENIX 200 - A10PB20AB/AD
ENGINE, CRANKCASE - A10PB20AB/AD (49ATVCRANKCASE10PHX)

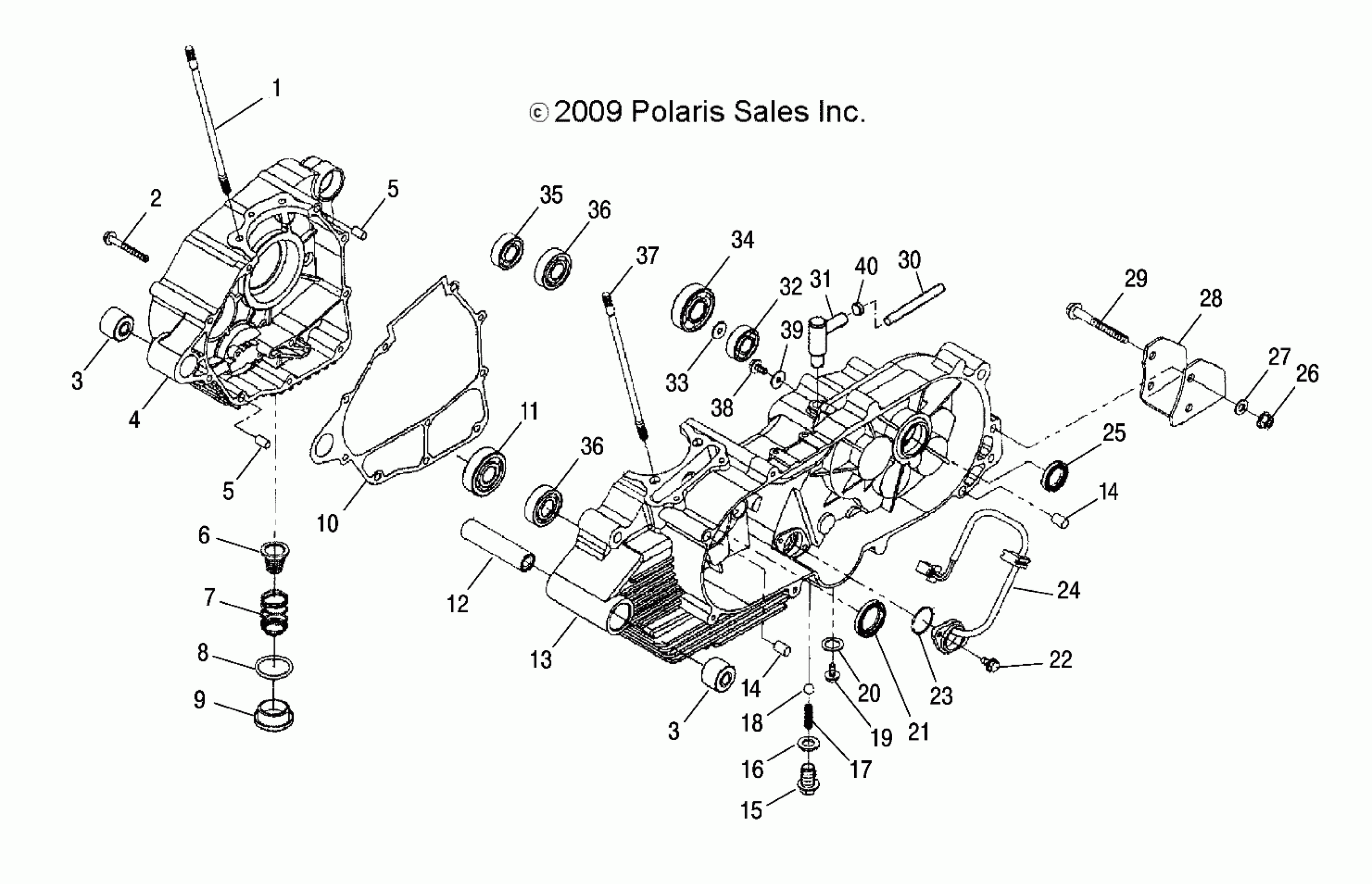

Polaris PHOENIX 200 - A10PB20AB/AD ENGINE, CRANKCASE - A10PB20AB/AD (49ATVCRANKCASE10PHX) Diagram
#
Description
Price
-
Asm., Engine w/o Carb
0454112
Unavailable
1
BOLT, STUD
0452335
$11.19
2
BOLT
0452344
Unavailable
3
BUSHING, RUBBER
0452319
$7.19
3
BUSHING, RUBBER
0452319
$7.19
4
CRANKCASE, RH
0454811
$223.99
5
PIN, DOWEL
0452342
$3.99
5
PIN, DOWEL
0452342
$3.99
6
SCREEN
0452369
$12.79
7
SPRING, SCREEN
0452370
$12.79
8
O-RING, DRAIN PLUG
0452371
$1.59
9
Cap, Oil Fill
0454689
Unavailable
10
GASKET
0452321
Unavailable
11
BEARING, BALL
0452345
$35.99
12
SPACER, COLLAR
0452320
$10.39
13
CRANKCASE, LH
0454812
$437.35
14
PIN, DOWEL
0450142
$3.99
14
PIN, DOWEL
0450142
$3.99
15
BOLT
0452137
$7.19
16
WASHER, FLAT
0452136
$3.99
17
SPRING, DETENT
0452135
Unavailable
18
BALL, STEEL
0452134
$4.79
19
BOLT, DRAIN PLUG
0452132
$4.79
20
WASHER, FLAT
0452133
$3.99
21
SEAL, OIL
0452341
$39.99
22
BOLT
0452138
$3.19
23
O-RING
0452129
$1.59
24
SWITCH
0452329
$35.99
25
SEAL, OIL
0452340
$11.99
26
NUT
0450268
$1.49
27
WASHER, FLAT
0452325
$3.99
28
BRACKET, MOTOR MOUNT
0452323
$43.99
29
BOLT
0452324
$6.39
30
HOSE, VENT
0452326
$6.39
31
Breather, Crankcase, Lower
0452125
$10.39
32
BEARING, NEEDLE
0452373
$35.99
33
WASHER, FLAT
0452374
$5.59
34
BEARING, BALL
0452349
$35.99
35
BEARING, MAIN TRANSMISSION SHAFT
0452156
$15.99
36
BEARING, BALL
0452348
$31.99
36
BEARING, BALL
0452348
$31.99
37
BOLT, STUD
0452336
$10.39
38
BOLT
0452330
$3.99
39
WASHER, FLAT
0452337
$3.99
40
Clip
0450054
$1.49
