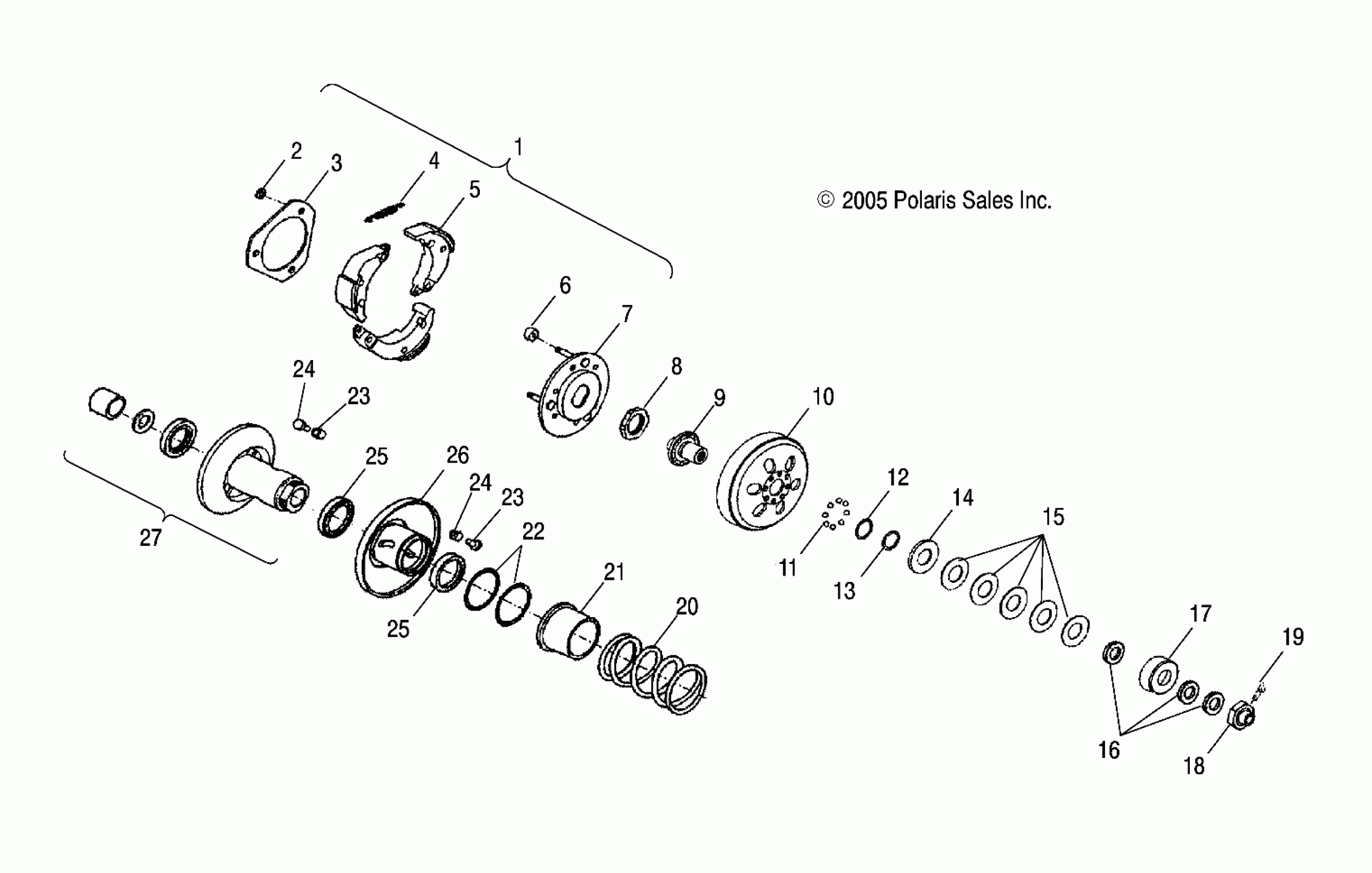

Polaris PHOENIX 200 - A10PB20AB/AD DRIVE TRAIN, SECONDARY CLUTCH - A10PB20AB/AD (49ATVCLUTCHDRIVEN08PHX) Diagram

#

Description
Price

-

ASM., DRIVEN CLUTCH [INCL. 1-8,20-27]

0452477

Unavailable

1

ASM., DRIVE CLUTCH [INCL. 2-7]

0452478

$164.43

2

Clip, Cir

0450052

Unavailable

3

Plate, Drive, Side

0452480

Unavailable

4

Spring, Clutch

0452481

$164.43

5

Weight, Clutch

0452482

$164.43

6

Bushing, Rubber

0452483

$164.43

7

Plate, Drive, Inner

0452479

$164.43

8

NUT

0452492

$8.99

9

HOLD, CAM

0452475

$121.02

10

CLUTCH, OUTER

0452495

$229.99

11

BALL, STEEL

0452498

$5.65

12

WASHER

0452476

$5.56

13

CLIP, CIR

0452497

$3.97

14

RETAINER, BALL

0452499

$47.62

15

WASHER, BELLEVILLE

0452500

$23.81

16

Washer, Gear

0452440

$4.76

17

GUIDE, CAM

0452501

$36.41

18

NUT, DRIVEN

0452502

$39.99

19

SCREW, SET

0452768

$3.97

20

SPRING, CLUTCH

0452490

$53.32

21

SEAL, COLLAR

0452491

$13.32

22

O-RING

0452494

$3.54

23

PIN, GUIDE

0452488

$16.99

23

PIN, GUIDE

0452488

$16.99

24

ROLLER, GUIDE

0452489

$16.44

24

ROLLER, GUIDE

0452489

$16.44

25

SEAL, DRIVEN

0452493

$11.32

25

SEAL, DRIVEN

0452493

$11.32

26

ASM., SHEAVE, MOVEABLE

0452487

$115.54

27

ASM., SHEAVE, DRIVEN [INCL. BEARINGS AND CLIP]

0452484

$142.21
