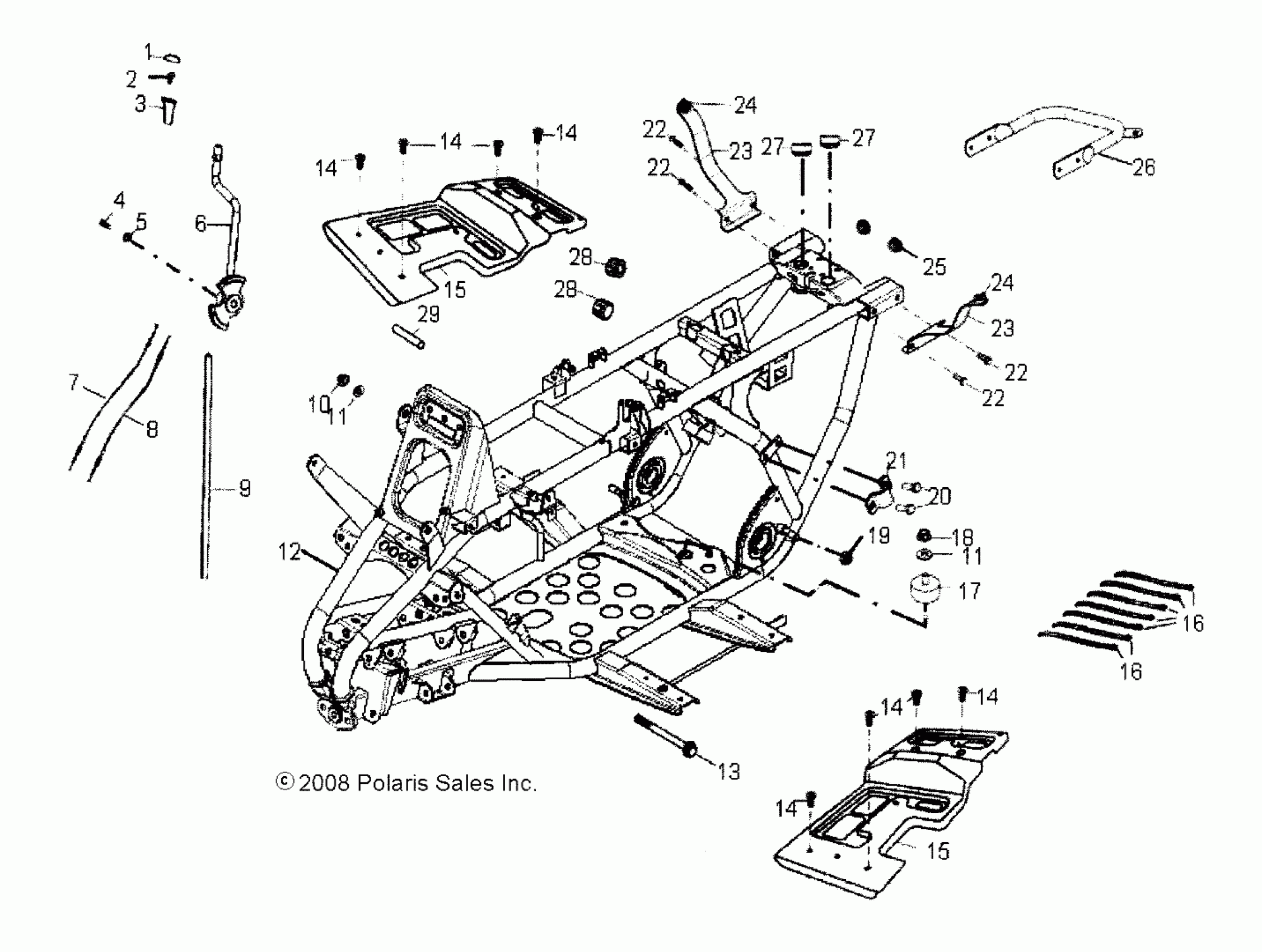

Polaris PHOENIX 200 - A09PB20AB/AD CHASSIS, FRAME - A09PB20AB/AD (49ATVFRAME09PHX) Diagram

#

Description
Price

1

COVER

0450967

$10.39

2

Bolt

0450309

Unavailable

3

KNOB, TRANSMISSION LEVER

0452168

$9.59

4

BOLT

0450298

$2.39

5

WASHER, FLAT

0452198

$3.19

6

LEVER, SHIFT

0454232

$83.99

7

CABLE, SHIFT

0454233

$63.99

8

CABLE, SHIFT

0454234

$47.99

9

TRIM, RUBBER

0452603

$6.39

10

NUT, LOCK

0450276

$3.99

11

WASHER

0450279

$3.19

11

WASHER

0450279

$3.19

12

ASM., FRAME, BLACK

0454235-067

$989.99

13

BOLT

0452599

$9.59

14

BOLT

0453242

$3.99

14

BOLT

0453242

$3.99

14

BOLT

0453242

$3.99

14

BOLT

0453242

$3.99

14

BOLT

0453242

$3.99

14

BOLT

0453242

$3.99

15

PLATE, FOOTWELL

0452594

$51.99

15

PLATE, FOOTWELL

0452594

$51.99

16

STRAP

0450559

$2.39

16

STRAP

0450559

$2.39

17

MOUNT, ENGINE

0452592

$51.99

18

Nut

0450882

Unavailable

19

NUT

0452799

$4.79

20

BOLT

0453762

$4.79

21

BRACKET, KICK START

0452602

$8.79

22

BOLT

0453126

$3.99

22

BOLT

0453126

$3.99

22

BOLT

0453126

$3.99

22

BOLT

0453126

$3.99

23

BRACKET

0452593

$47.99

23

BRACKET

0452593

$47.99

24

RUBBER, MOUNT

0450800

$3.19

24

RUBBER, MOUNT

0450800

$3.19

25

CAP, RUBBER

0453125

$3.99

26

BAR, GRAB, REAR, BLACK

0453261-067

$79.99

27

Rubber, Seat

0450290

$7.19

27

Rubber, Seat

0450290

$7.19

28

GROMMET, SEAT

0452591

$8.79

28

GROMMET, SEAT

0452591

$8.79

29

DAMPNER, FOOT BRAKE LEVER

0452596

$12.79
