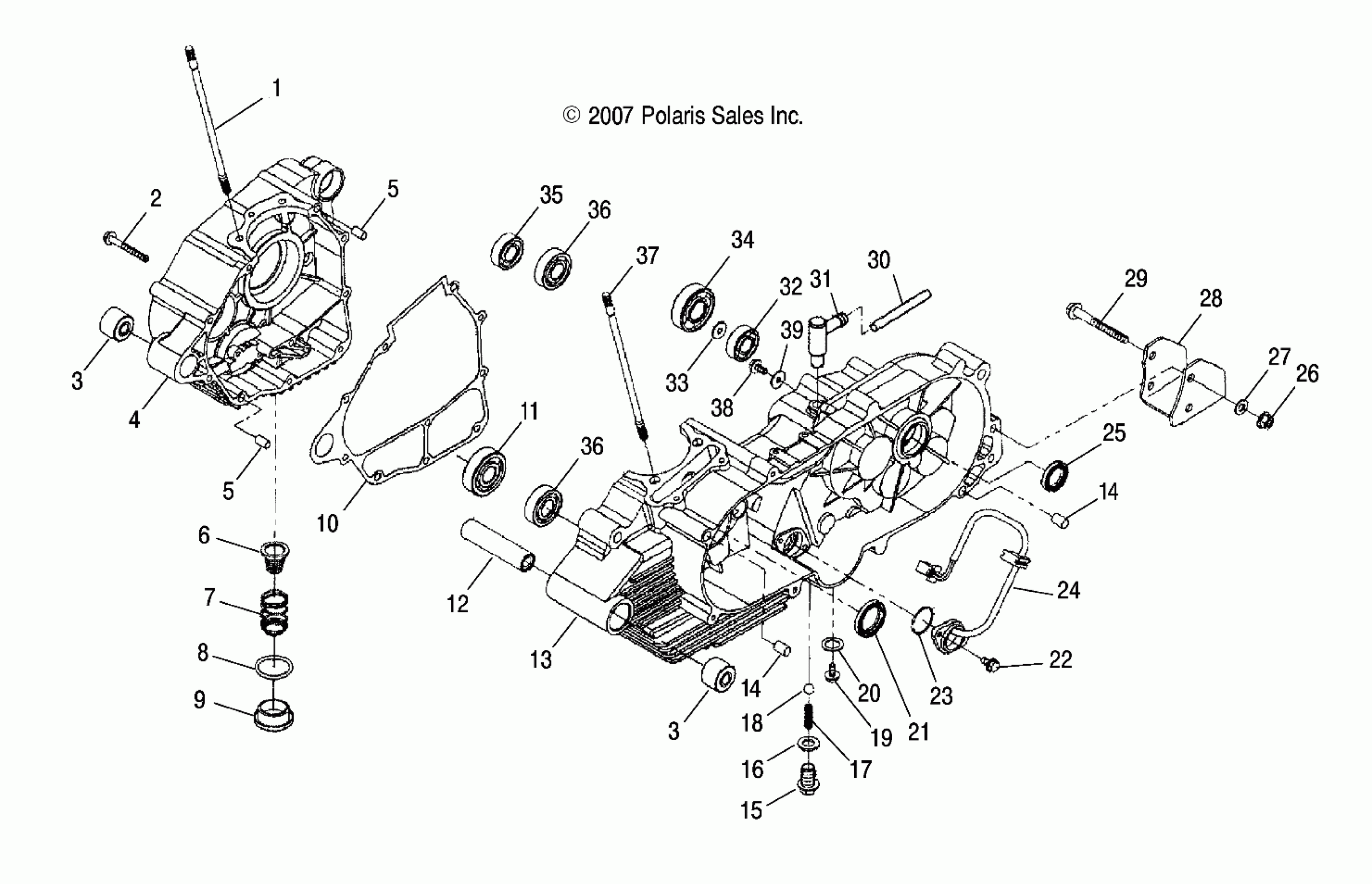

Polaris PHOENIX 200 - A08PB20AB/AD ENGINE, CRANKCASE - A08PB20AB/AD (49ATVCRANKCASE08PHX) Diagram

#

Description
Price

-

Asm., Engine w/o Carb

0454112

Unavailable

1

BOLT, STUD

0452335

$11.19

2

BOLT

0452344

Unavailable

3

BUSHING, RUBBER

0452319

$7.19

3

BUSHING, RUBBER

0452319

$7.19

4

Crankcase, RH

0452318

$205.99

5

PIN, DOWEL

0452342

$3.99

5

PIN, DOWEL

0452342

$3.99

6

SCREEN

0452369

$12.79

7

SPRING, SCREEN

0452370

$12.79

8

O-RING, DRAIN PLUG

0452371

$1.59

9

Plug, Drain, Oil

0452368

$23.99

10

GASKET

0452321

Unavailable

11

BEARING, BALL

0452345

$35.99

12

SPACER, COLLAR

0452320

$10.39

13

Crankcase, LH

0452322

$436.51

14

PIN, DOWEL

0450142

$3.99

14

PIN, DOWEL

0450142

$3.99

15

BOLT

0452137

$7.19

16

WASHER, FLAT

0452136

$3.99

17

SPRING, DETENT

0452135

Unavailable

18

BALL, STEEL

0452134

$4.79

19

BOLT, DRAIN PLUG

0452132

$4.79

20

WASHER, FLAT

0452133

$3.99

21

SEAL, OIL

0452341

$39.99

22

BOLT

0452138

$3.19

23

O-RING

0452129

$1.59

24

SWITCH

0452329

$35.99

25

SEAL, OIL

0452340

$11.99

26

NUT

0450268

$1.49

27

WASHER, FLAT

0452325

$3.99

28

BRACKET, MOTOR MOUNT

0452323

$43.99

29

BOLT

0452324

$6.39

30

HOSE, VENT

0452326

$6.39

31

Clamp

0450054

$1.49

32

BEARING, NEEDLE

0452373

$35.99

33

WASHER, FLAT

0452374

$5.59

34

BEARING, BALL

0452349

$35.99

35

BEARING, MAIN TRANSMISSION SHAFT

0452156

$15.99

36

BEARING, BALL

0452348

$31.99

36

BEARING, BALL

0452348

$31.99

37

BOLT, STUD

0452336

$10.39

38

BOLT

0452330

$3.99

39

WASHER, FLAT

0452337

$3.99
