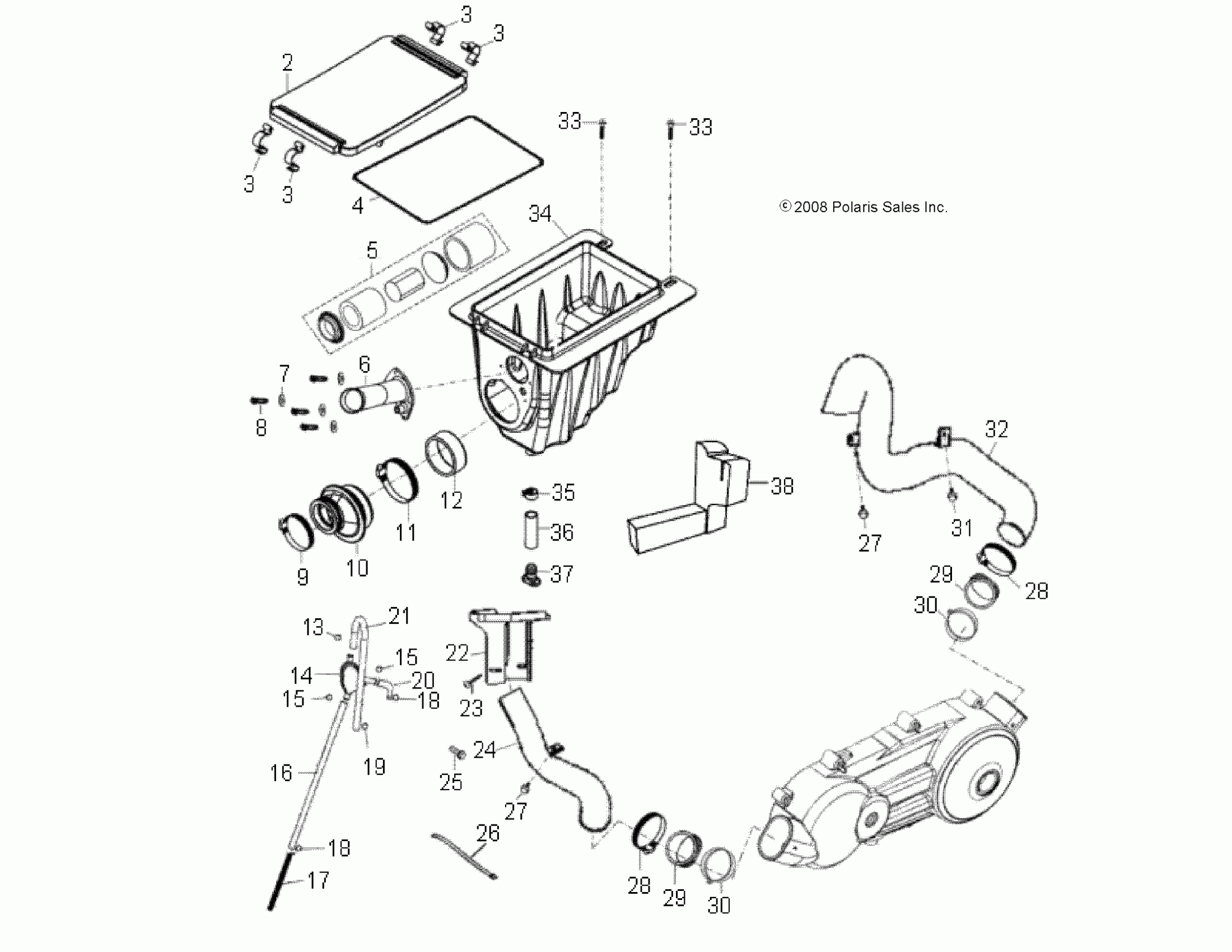

Polaris PHOENIX 200 - A08PB20AB/AD ENGINE, AIR INTAKE SYSTEM - A08PB20AA/AD (49ATVAIRBOX07PHX) Diagram

#

Description
Price

-

Asm., Air Box

0453084

Unavailable

2

Cover, Air Box

0452560

$35.99

3

Clip

0452565

$4.79

3

Clip

0452565

$4.79

3

Clip

0452565

$4.79

3

Clip

0452565

$4.79

4

Gasket

0452569

$10.39

5

FILTER, AIR CLEANER

0452306

Unavailable

6

DUCT, INLET

0453085

Unavailable

7

Washer, Flat

0453098

$3.99

8

Rivet

0453097

$3.19

9

Clamp

0452562

$7.99

10

Boot

0452563

$27.99

11

Clamp

0452561

$7.99

12

Duct

0452557

$23.99

13

Clip

0452796

$3.99

14

Separator, Oil

0453184

$63.99

15

Asm., Fuel Line Clip

0450865

$11.19

15

Asm., Fuel Line Clip

0450865

$11.19

16

Tube, Breather, Ventilated

0452794

$47.99

17

Spring

0452793

$7.19

18

Clip

0450054

$1.49

18

Clip

0450054

$1.49

19

Clip

0452795

$3.99

20

HOSE

0450363-083

$5.59

21

HOSE

0450363-475

$31.99

22

COVER, WATERPROOF

0452579

$31.99

23

SCREW

0451703

$3.99

24

DUCT, OUTLET

0452575

$79.99

25

Bolt

0450309

Unavailable

26

STRAP

0450559

$2.39

27

BOLT

0450824

$2.39

27

BOLT

0450824

$2.39

28

Clamp

0452578

$5.59

28

Clamp

0452578

$5.59

29

Boot, Duct

0453190

$13.59

29

Boot, Duct

0453190

$13.59

30

Clamp

0452577

$10.39

30

Clamp

0452577

$10.39

31

BOLT

0452216

$3.99

32

Duct, Outlet

0452576

$95.99

33

BOLT

0452216

$3.99

33

BOLT

0452216

$3.99

34

Box, Air

0452559

$127.99

35

Clamp

0452566

$4.79

36

Hose, Drain

0452567

$3.99

37

Plug, Trap

0452568

$12.79

38

Foam

0453760

$35.19
