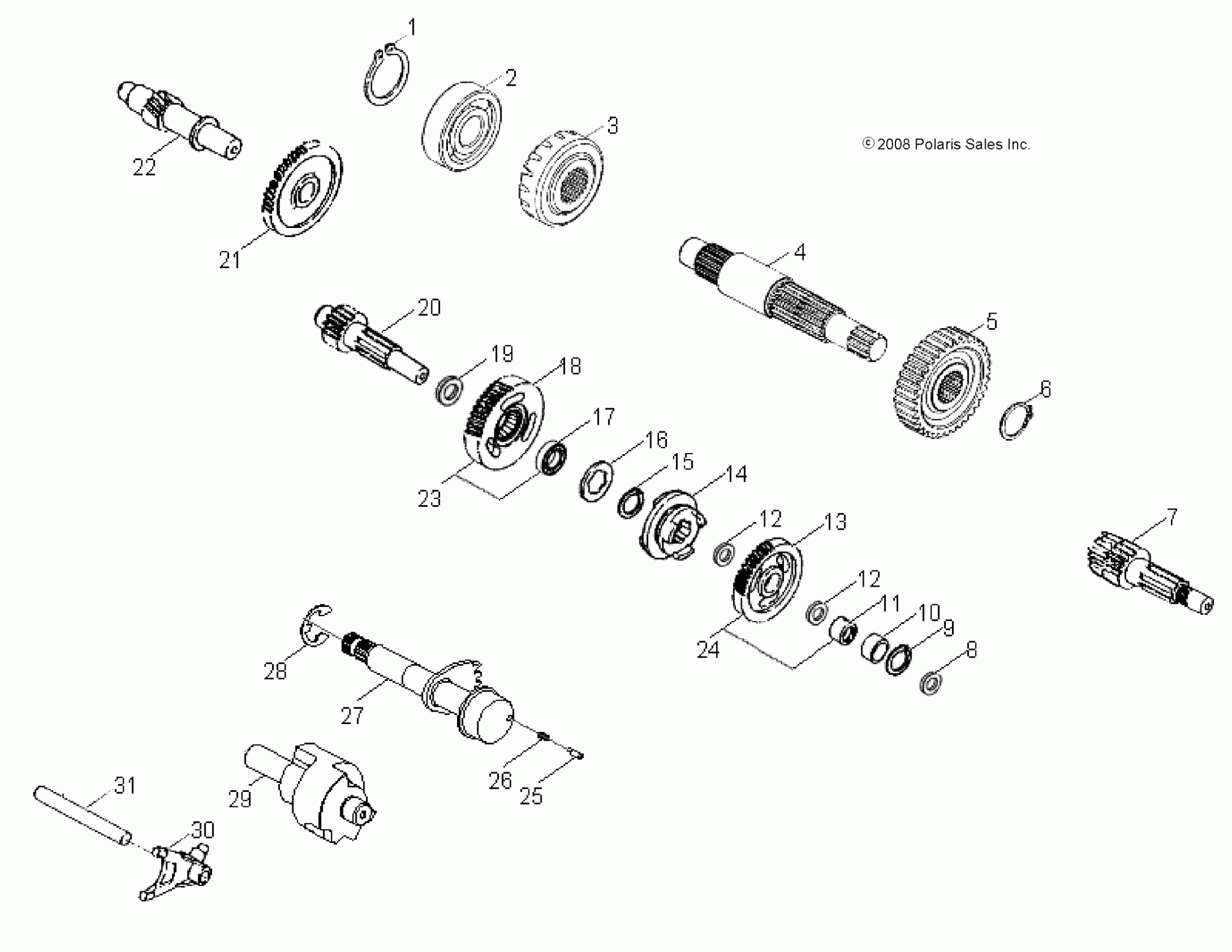

Polaris PHOENIX 200 - A08PB20AB/AD DRIVE TRAIN, TRANSMISSION - A08PB20AB/AD (49ATVTRANSMISSION07PHX) Diagram

#

Description
Price

1

RING, RETAINER

0452339

$3.97

2

BEARING, BALL

0452349

$35.71

3

GEAR, FINAL RING

0452531

$119.98

4

SHAFT

0452528

$93.08

5

Gear, Final

0453124

$119.98

6

CLIP, CIR

0453779

$4.76

7

SHAFT, DRIVE

0452525

$114.99

8

Washer, Plain

0453123

Unavailable

9

CLIP, CIR

0450187

$3.97

10

COLLAR, SHAFT

0453120

$23.81

11

BUSHING

0452516

$6.64

12

WASHER, FLAT

0452513

$5.22

12

WASHER, FLAT

0452513

$5.22

13

Gear

0453121

$97.76

14

RATCHET, SHIFT

0452517

$89.03

15

CLIP, CIR

0452789

$6.10

16

WASHER, SPLINE

0452518

$9.99

17

BEARING, NEEDLE

0452521

$18.99

18

Gear, Reverse

0452520

$80.94

19

WASHER, FLAT

0452522

$10.32

20

Shaft, Transmission

0453122

$106.65

21

GEAR, COUNTER

0452527

$109.27

22

SHAFT, COUNTER

0452526

$88.87

23

ASM., REVERSE GEAR [INCL. 17,18]

0452519

$145.70

24

Asm., Spur Gear [Incl. 11,13]

0452514

$97.76

25

SPRING, DRUM SENSOR

0452163

$8.08

26

ROLLER, DRUM SENSOR

0452162

$4.84

27

SPINDLE

0452160

$68.79

28

E-CLIP

0452161

$3.97

29

Drum, Gear Shift Asm.

0452159

$209.99

30

FORK, SHIFT

0452157

$64.75

31

SHAFT, GEAR SHIFT

0452158

$8.89
