- PHOENIX 200 - A08PB20AB/AD
DRIVE TRAIN, REAR DRIVE ASSEMBLY - A08PB20AB/AD (49ATVDRIVERR07SAW)

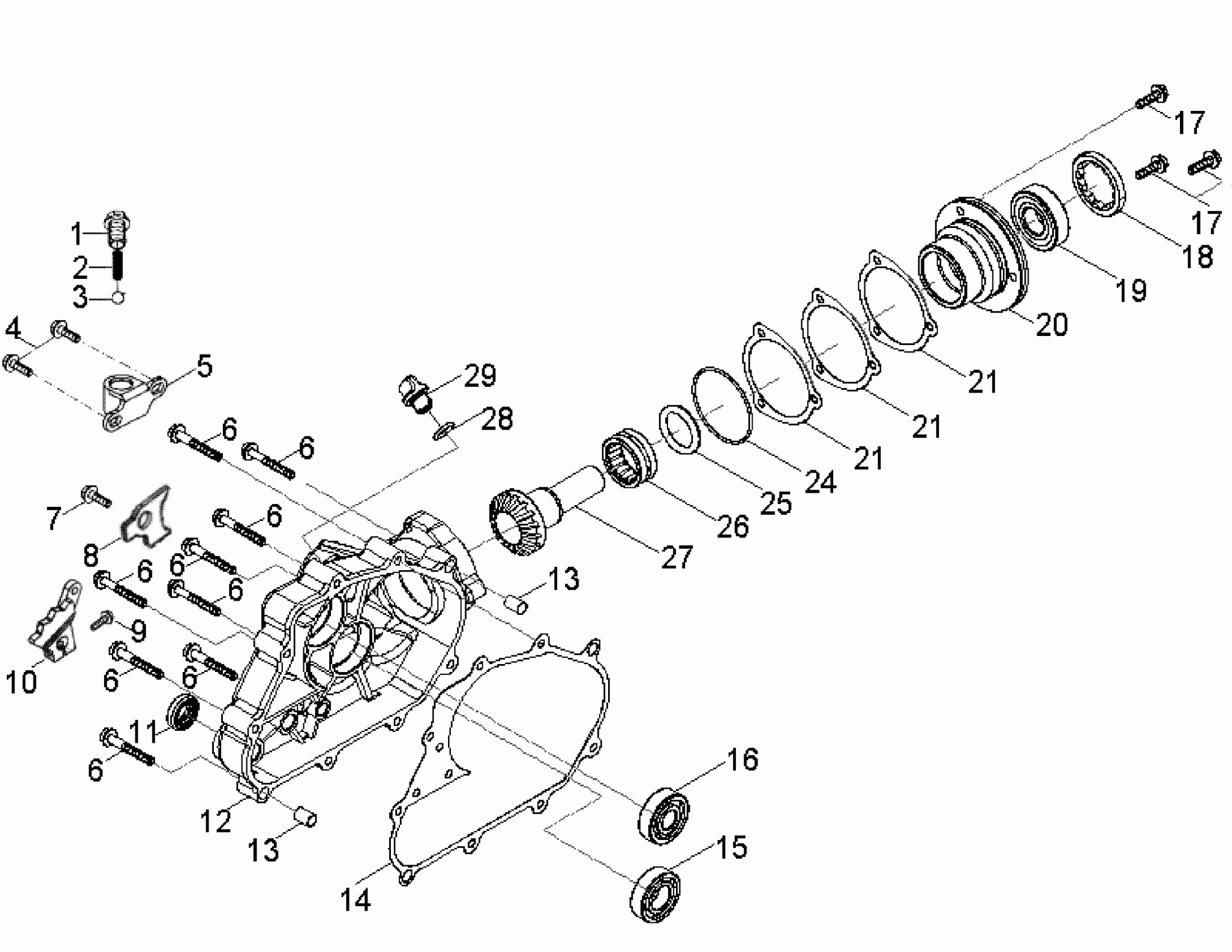

Polaris PHOENIX 200 - A08PB20AB/AD DRIVE TRAIN, REAR DRIVE ASSEMBLY - A08PB20AB/AD (49ATVDRIVERR07SAW) Diagram
#
Description
Price
1
Bolt
0452635
$12.21
2
Spring, Detent
0453033
$1.59
3
BALL, STEEL
0452134
$4.79
4
BOLT
0453814
$3.99
5
Housing
0452634
Unavailable
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
6
BOLT
0452343
$3.99
7
BOLT
0453505
$3.99
8
RETAINER, SIGHT GLASS
0453245
$4.79
9
BOLT
0450189
$1.49
10
Detent
0452633
$71.10
11
SEAL, OIL
0452175
$11.99
12
Cover, Transmission
0452332
Unavailable
13
PIN, DOWEL
0450142
$3.99
13
PIN, DOWEL
0450142
$3.99
14
GASKET, TRANSMISSION COVER
0452334
Unavailable
15
BEARING, BALL, ID 20MM
0452346
$31.99
16
BEARING, BALL, ID 15MM
0452347
$31.99
17
BOLT
0452350
$3.99
17
BOLT
0452350
$3.99
18
NUT, LOCK
0452355
$27.99
19
BEARING, BALL
0452354
$43.99
20
COLLAR, GEAR SHAFT
0452351
$87.99
21
SHIM, SET
0452352
$12.79
21
SHIM, SET
0452352
$12.79
21
SHIM, SET
0452352
$12.79
24
O-RING
0452353
$2.39
25
SEAL, OIL
0452357
$15.99
26
BEARING, NEEDLE, ID 30MM
0452358
$71.99
27
GEAR, SHAFT, OUTPUT
0452356
$103.99
28
O-RING
0452394
$1.59
29
PLUG, OIL
0451813
$5.59
