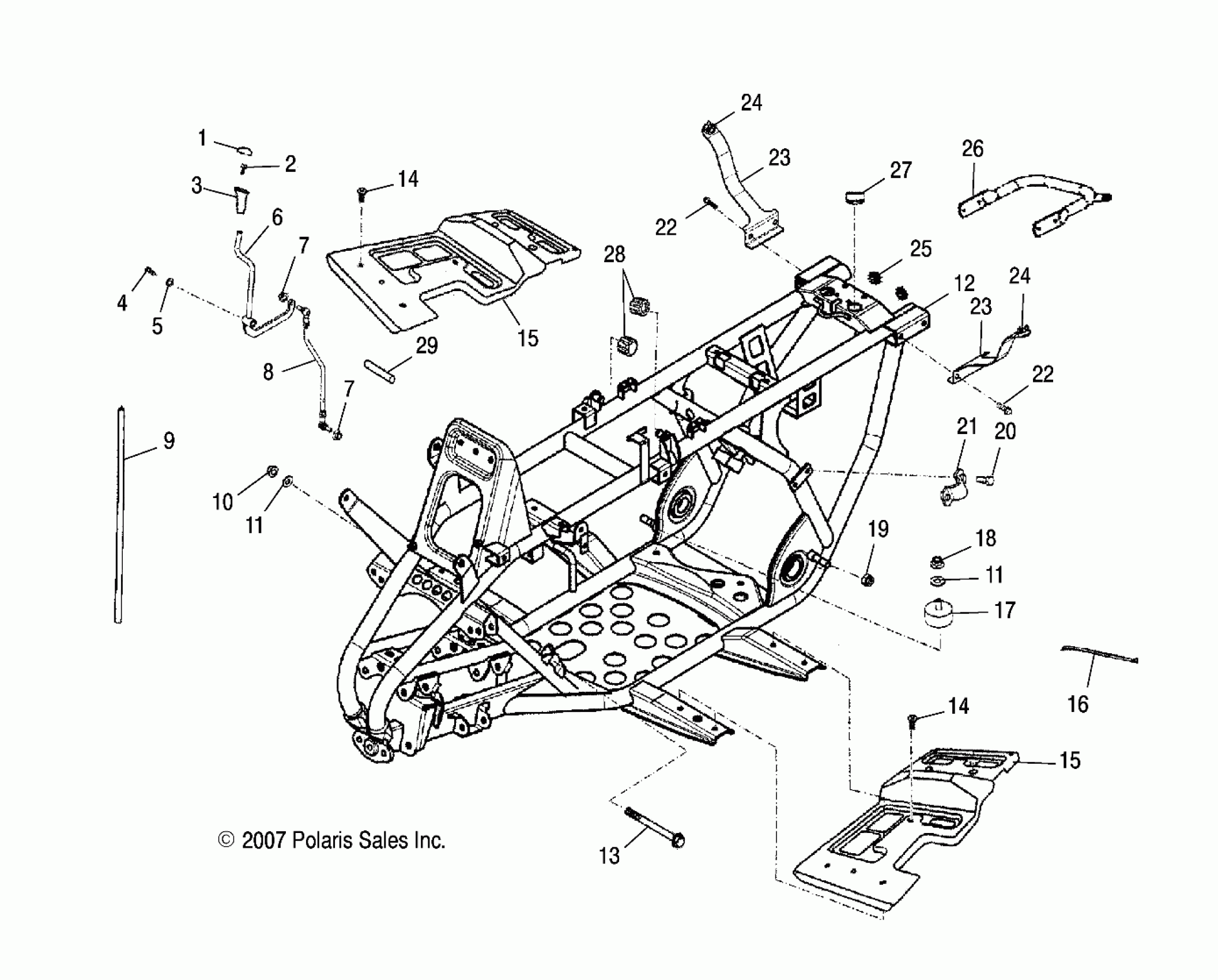

Polaris PHOENIX 200 - A08PB20AB/AD CHASSIS, FRAME - A08PB20AB/AD (49ATVFRAME08PHX) Diagram

#

Description
Price

1

COVER

0450967

$11.32

2

Bolt

0450309

$3.97

3

KNOB, TRANSMISSION LEVER

0452168

$9.70

4

BOLT

0450298

$2.38

5

WASHER, FLAT

0452198

$3.17

6

Lever, Shift

0452601

Unavailable

7

NUT

0450268

$0.79

7

NUT

0450268

$0.79

8

Linkage, Shift

0452600

Unavailable

9

TRIM, RUBBER

0452603

$7.27

10

NUT, LOCK

0450276

$3.97

11

WASHER

0450279

$3.17

11

WASHER

0450279

$3.17

12

Asm., Frame, Black

0454020-067

$971.41

13

BOLT

0452599

$11.99

14

BOLT

0453242

$3.97

14

BOLT

0453242

$3.97

15

PLATE, FOOTWELL

0452594

$57.76

15

PLATE, FOOTWELL

0452594

$57.76

16

STRAP

0450559

$2.41

17

MOUNT, ENGINE

0452592

$52.60

18

Nut

0450882

$1.59

19

NUT

0452799

$4.76

20

BOLT

0453762

$4.76

21

BRACKET, KICK START

0452602

$8.89

22

BOLT

0453126

$3.97

22

BOLT

0453126

$3.97

23

BRACKET

0452593

$48.56

23

BRACKET

0452593

$48.56

24

RUBBER, MOUNT

0450800

$3.17

24

RUBBER, MOUNT

0450800

$3.17

25

CAP, RUBBER

0453125

$4.03

26

BAR, GRAB, REAR, BLACK

0453261-067

$84.98

27

Rubber, Seat

0450290

$7.14

28

GROMMET, SEAT

0452591

$9.59

29

DAMPNER, FOOT BRAKE LEVER

0452596

$15.22
