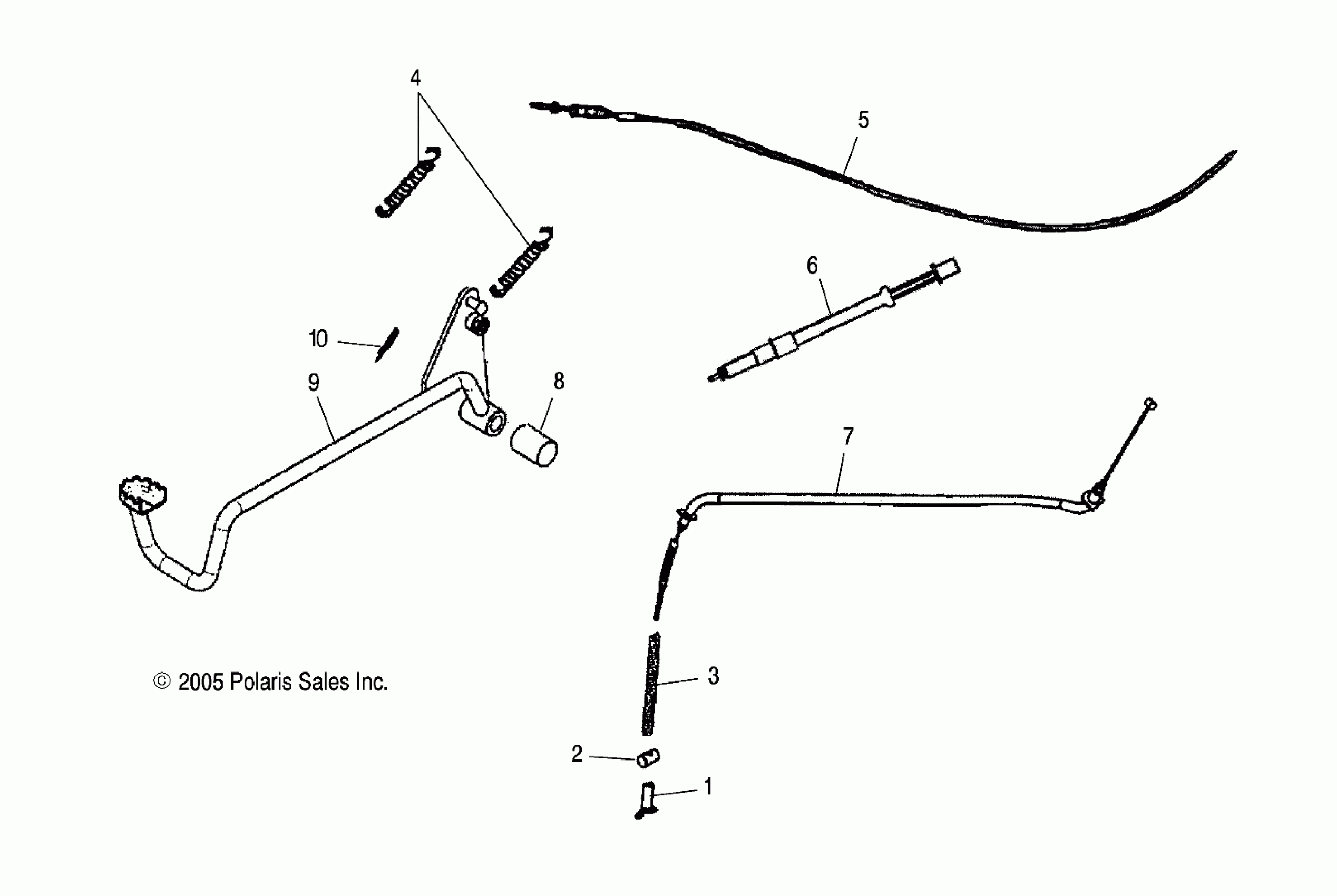

Polaris PHOENIX 200 - A08PB20AB/AD BRAKES, REAR - A08PB20AB/AD (49ATVBRAKERR08PHX) Diagram

#

Description
Price

1

NUT, BRAKE CABLE, REAR

0453095

$7.14

2

SHAFT, THRU, REAR

0453094

$3.97

3

SPRING, RETAINING

0453192

$4.84

4

Spring, Brake Lever

0452686

$5.65

5

CABLE, HAND BRAKE, REAR

0453771

$57.76

6

SWITCH, BRAKE

0453015

$47.49

7

CABLE, FOOT BRAKE, REAR

0453772

$44.43

8

BUSHING

0453274

$5.56

9

Lever, Brake, Foot

0452874

$57.76

10

PIN, COTTER

0450719

$3.17
