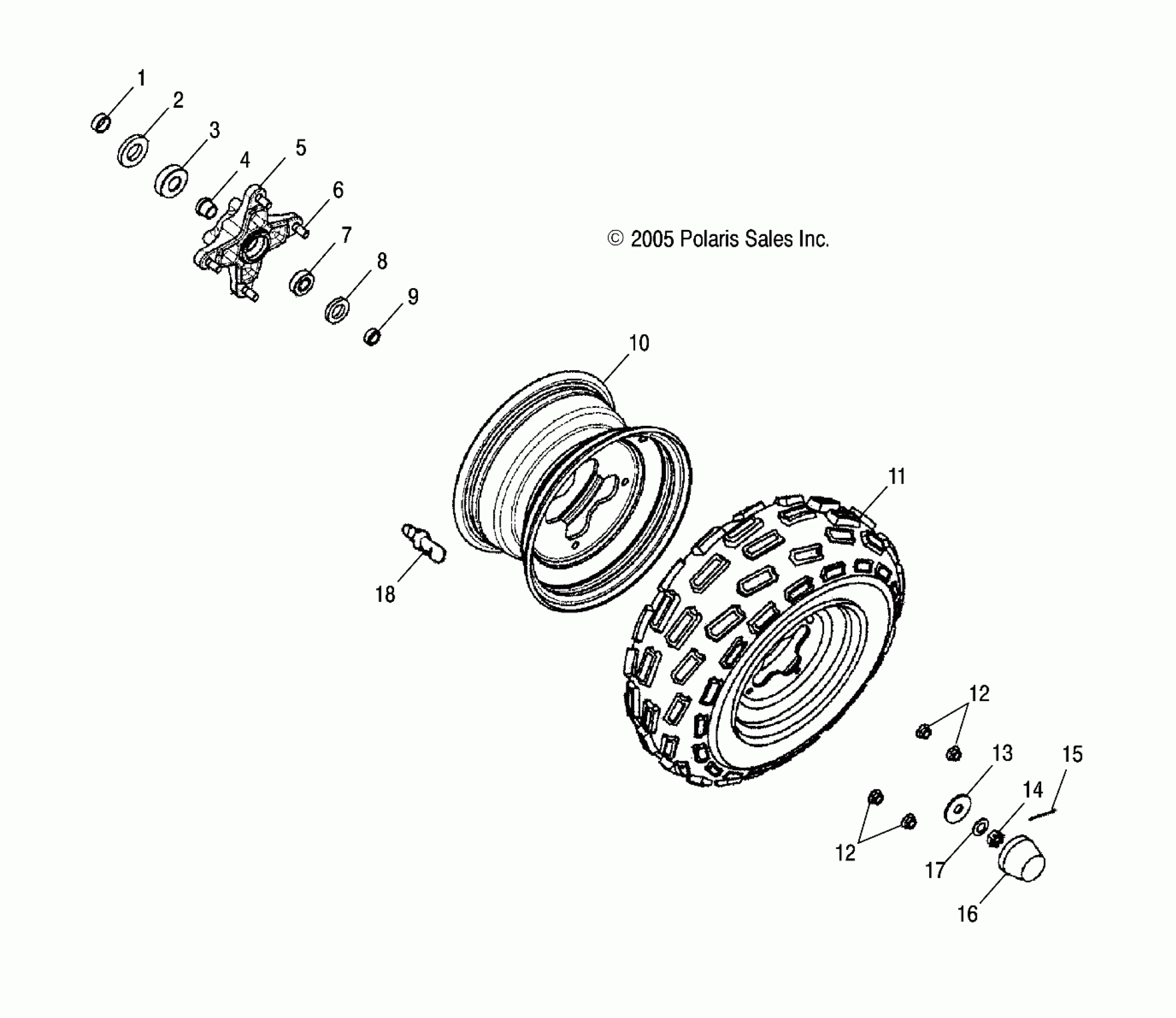

Polaris PHOENIX 200 - A06PB20AA WHEEL, FRONT - A06PB20AA/AB/AC/LE (4999202449920244B10) Diagram

#

Description
Price

1

SPACER, COLLAR, INSIDE

0453005

$6.39

2

SEAL, OIL, OUTSIDE

0453008

$11.99

3

BEARING, BALL

0453009

$31.99

4

SPACER, COLLAR, CENTER

0453006

$6.39

5

Hub, Front, LH

0452273

Unavailable

6

BOLT, STUD, WHEEL

0453054

$7.19

6

Bolt, Stud, Wheel [LE]

0453206

Unavailable

7

BEARING, BALL

0453004

$31.99

8

SEAL, OIL

0453003

$11.99

9

SPACER, COLLAR, OUTSIDE

0453007

$6.39

10

Rim, Front [LE]

1520841

Unavailable

10

Rim, Front

0453000

Unavailable

11

TIRE, DURO, 21X7-10

0452786

$71.99

12

Nut, Lock

0450882

Unavailable

12

Nut, Lock

0450882

Unavailable

13

WASHER, FLAT

0453001

$4.79

14

NUT

0453002

$7.99

15

PIN, COTTER

0450395

$3.19

16

CAP, HUB

0452661

$15.19

17

WASHER

0452663

$4.39

18

VALVE-RIM [LE]

1525017

$5.59

18

VALVE, RIM

0450401

$7.19
