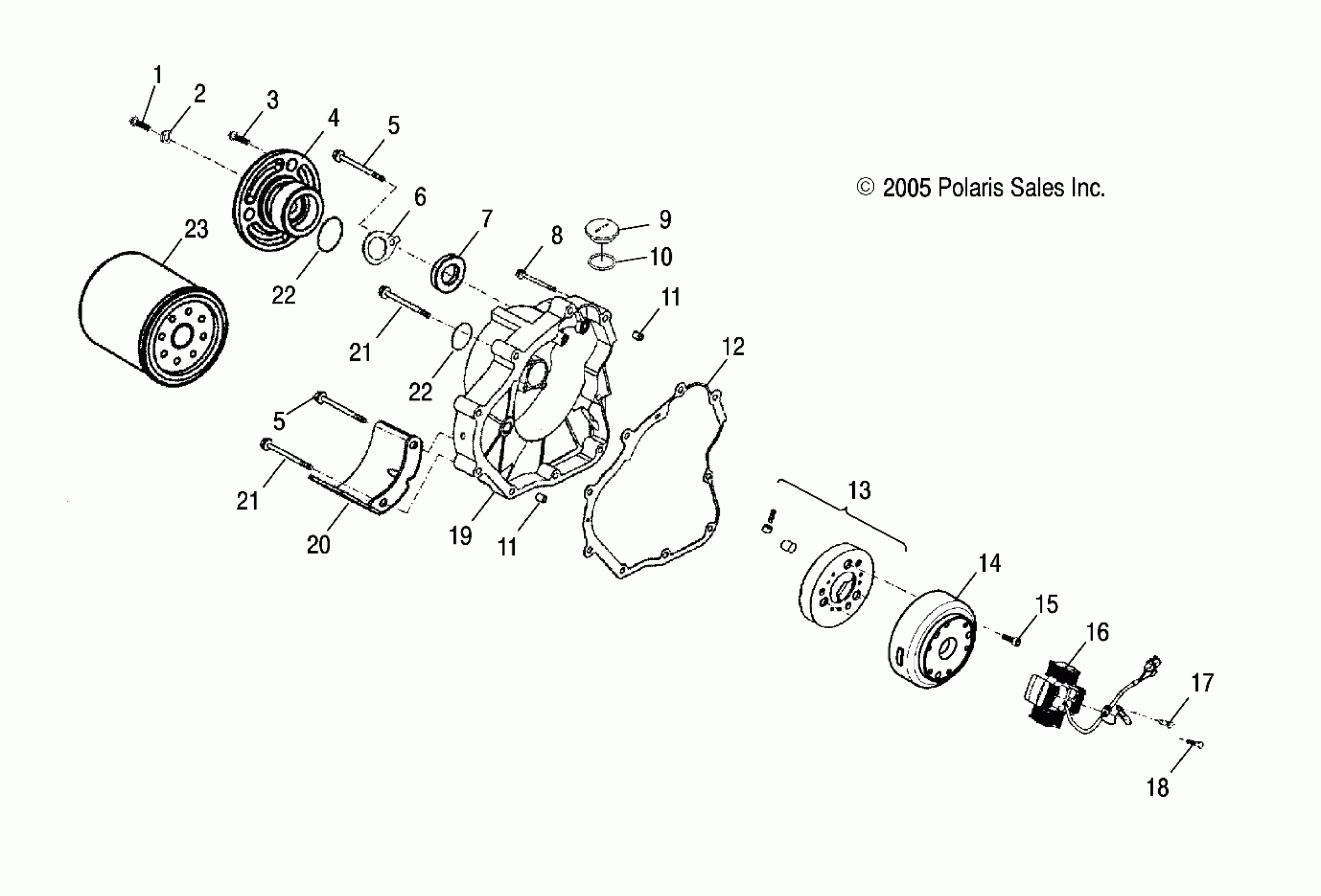

Polaris PHOENIX 200 - A06PB20AA CRANKCASE COVER, RH - A06PB20AA/AB/AC/LE (4999202449920244A08) Diagram

#

Description
Price

1

BOLT

0452463

$3.99

2

WASHER, FLAT, COPPER

0452464

$3.99

3

BOLT

0452413

$3.99

4

CAP, COVER, RH

0452458

$39.99

5

BOLT

0452330

$3.99

6

RETAINER, SIGHT GLASS

0452637

$7.99

7

Asm., Sight Glass

0452333

$13.99

8

BOLT

0452343

$3.99

9

CAP

0452460

$8.79

10

O-RING

0452461

$1.59

11

PIN, DOWEL

0452342

$3.99

11

PIN, DOWEL

0452342

$3.99

12

GASKET, COVER

0452447

Unavailable

13

ASM., ONE WAY CLUTCH

0452450

$103.99

14

Flywheel

0452448

Unavailable

15

BOLT

0452457

$27.99

16

Stator

0452449

Unavailable

17

SCREW

0452456

$3.19

18

BOLT W/WASHER

0453029

$4.79

19

COVER, CRANKCASE, RH

0452446

$227.99

20

SHIELD

0452636

$10.39

21

BOLT

0452401

$4.79

21

BOLT

0452401

$4.79

22

O-RING

0452459

$4.79

22

O-RING

0452459

$4.79

23

FILTER, OIL

0452462

Unavailable
