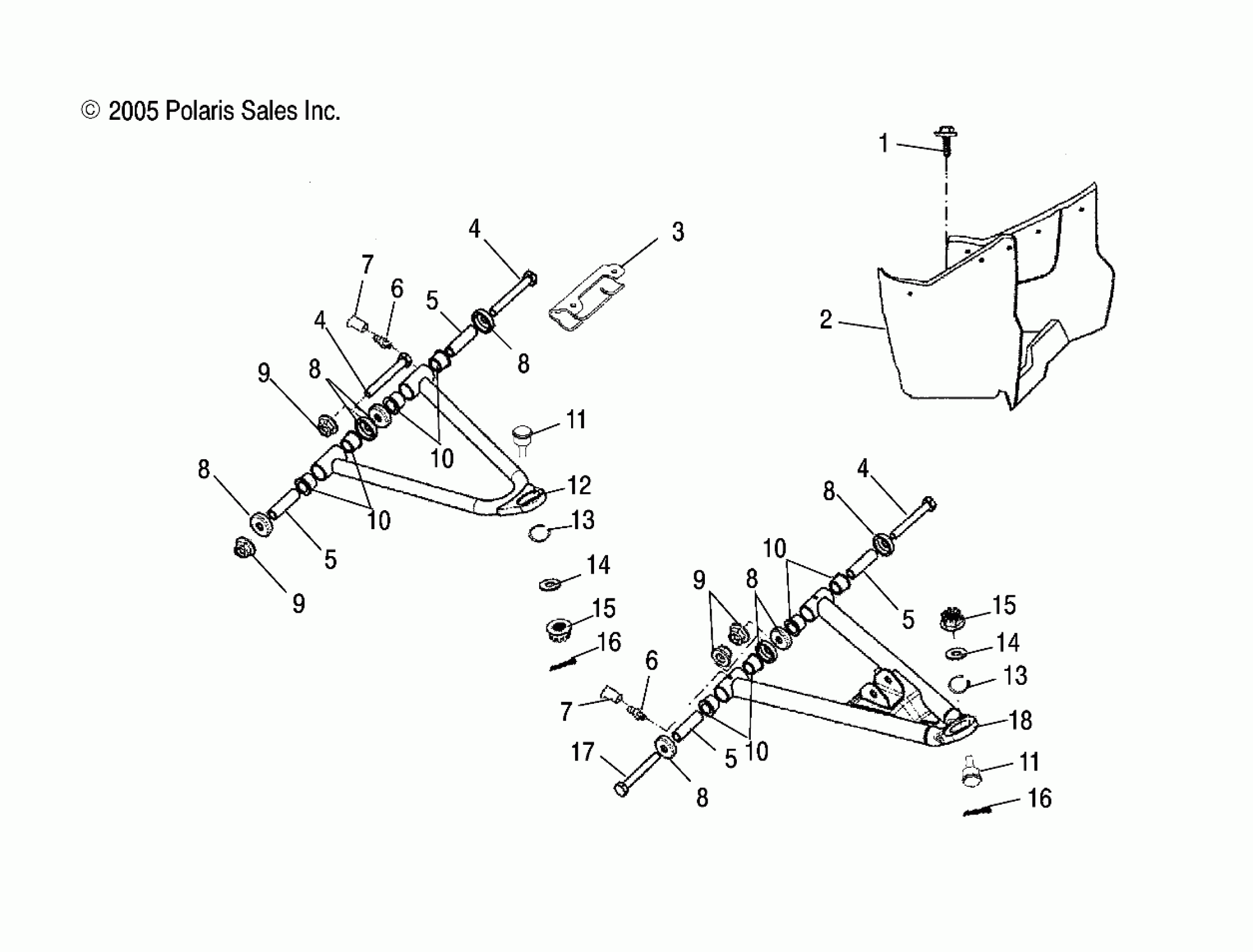

Polaris PHOENIX 200 - A06PB20AA CONTROL ARM and FOOTREST - A06PB20AA/AB/AC/LE (4999202449920244B05) Diagram

#

Description
Price

1

BOLT, HEX

0452215

$3.99

2

Footrest, LH

0453107

$131.99

2

Footrest, RH

0453106

$131.99

3

Retainer, Brake Line, Front

0453079

$27.99

4

Bolt

0452626

$4.79

4

Bolt

0452626

$4.79

4

Bolt

0452626

$4.79

5

Spacer

0452625

$8.79

5

Spacer

0452625

$8.79

5

Spacer

0452625

$8.79

5

Spacer

0452625

$8.79

6

Valve, Grease

0450320

$5.59

6

Valve, Grease

0450320

$5.59

7

Cap, Rubber

0450321

$3.19

7

Cap, Rubber

0450321

$3.19

8

Cap, Rubber

0451762

$8.79

8

Cap, Rubber

0451762

$8.79

8

Cap, Rubber

0451762

$8.79

8

Cap, Rubber

0451762

$8.79

8

Cap, Rubber

0451762

$8.79

8

Cap, Rubber

0451762

$8.79

9

Nut

0450249

$3.99

9

Nut

0450249

$3.99

9

Nut

0450249

$3.99

10

Bushing

0451763

Unavailable

10

Bushing

0451763

Unavailable

10

Bushing

0451763

Unavailable

10

Bushing

0451763

Unavailable

11

Joint, Ball

7081190

$48.40

11

Joint, Ball

7081190

$48.40

12

A-Arm, Upper, LH

0452624

Unavailable

12

A-Arm, Upper, RH

0452623

$150.06

13

Ring, Snap

0452630

Unavailable

13

Ring, Snap

0452630

Unavailable

14

WASHER

0450279

$3.19

14

WASHER

0450279

$3.19

15

NUT

0450502

$9.59

15

NUT

0450502

$9.59

16

PIN, COTTER

0450719

Unavailable

16

PIN, COTTER

0450719

Unavailable

17

Bolt

0451764

$10.39

18

A-Arm, Lower, LH

0452622

Unavailable

18

A-Arm, Lower, RH

0452621

Unavailable
