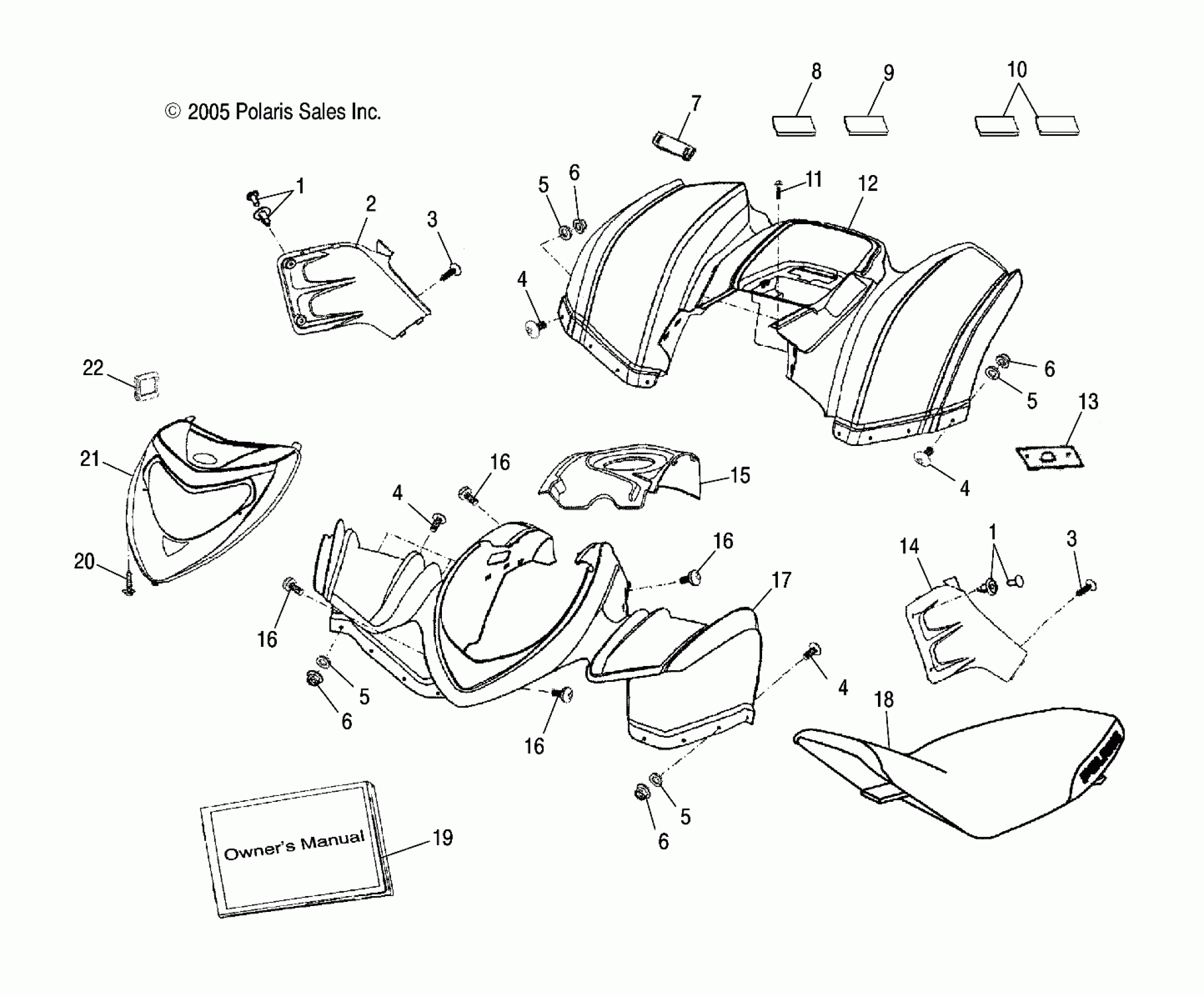

Polaris PHOENIX 200 - A06PB20AA CAB/SEAT - A06PB20AA/AB/AC/LE (4999202449920244B07) Diagram

#

Description
Price

1

RIVET, PLASTIC

0451076

$1.19

1

RIVET, PLASTIC

0451076

$1.19

2

PANEL, SIDE, RH, BLACK

0452653-070

$157.84

3

SCREW

0451703

$3.97

3

SCREW

0451703

$3.97

4

BOLT

0450622

$2.38

4

BOLT

0450622

$2.38

4

BOLT

0450622

$2.38

4

BOLT

0450622

$2.38

5

WASHER, FLAT

0450710

$1.19

5

WASHER, FLAT

0450710

$1.19

5

WASHER, FLAT

0450710

$1.19

5

WASHER, FLAT

0450710

$1.19

6

NUT

0450741

$3.17

6

NUT

0450741

$3.17

6

NUT

0450741

$3.17

6

NUT

0450741

$3.17

7

STRAP, BATTERY, RUBBER

0452660

$8.89

8

Rubber, Battery

0450346

$2.41

9

RUBBER, BATTERY

0452778

$20.22

10

RUBBER, BATTERY

0452779

$20.22

11

BOLT

0452215

$3.97

12

Cab, Rear, Indy Red

0453113-293

Unavailable

12

Cab, Rear, Sonic Blue

0453113-341

Unavailable

12

Cab, Rear, Black Metallic

0453113-177

$253.97

13

Pad, Protector

0450345

$44.51

14

PANEL, SIDE, LH, BLACK

0452651-070

$157.84

15

Cover, Fuel Tank, Black

0453111-070

$113.32

15

Cover, Fuel Tank, Black Metallic [LE]

0453111-177

$81.75

16

BOLT

0450824

$2.38

16

BOLT

0450824

$2.38

16

BOLT

0450824

$2.38

16

BOLT

0450824

$2.38

17

Cab, Front, Indy Red

0453112-293

Unavailable

17

Cab, Front, Sonic Blue

0453112-341

Unavailable

17

Cab, Front, Black Metallic

0453112-177

Unavailable

18

SEAT

0453083

$445.22

18

Asm., Seat, Black/Silver [LE]

0453552

Unavailable

19

Manual, Owners, '06 Phoenix 200

9920243

$14.99

20

SCREW

0450040

$3.17

21

Cover, Headlight, Black

0452650-070

$80.94

21

Cover, Headlight, Silver [LE]

0452650-473

$68.08

22

Boot, Shift, Rubber

0452662

$24.27
