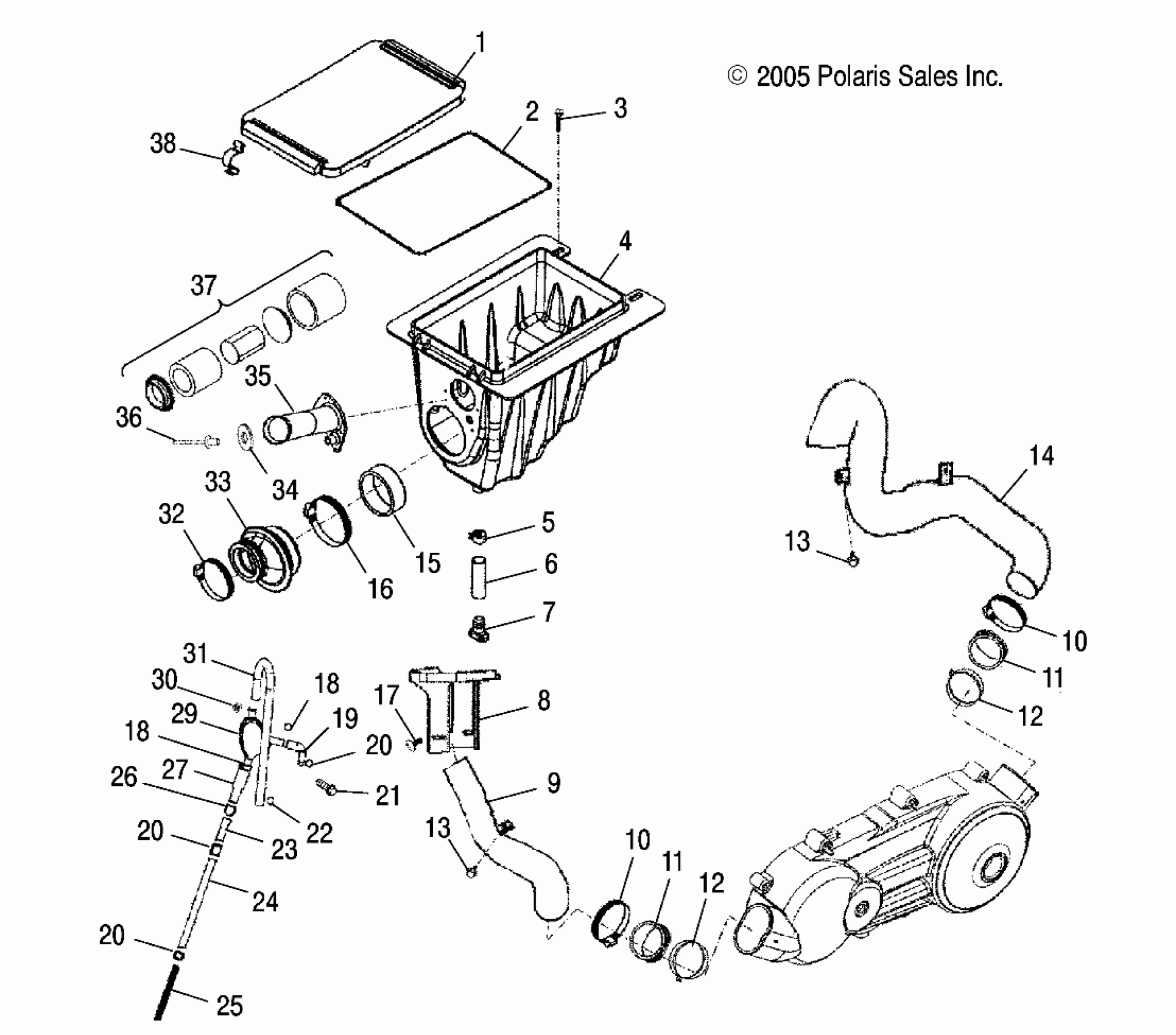

Polaris PHOENIX 200 - A06PB20AA AIR CLEANER - A06PB20AA/AB/AC/LE (4999202449920244B01) Diagram

#

Description
Price

-

Asm., Air Box [Incl. 1-7,15,16,32-38]

0453084

Unavailable

-

Asm., Breather Tube [Incl. 18-31]

0452570

Unavailable

1

Cover, Air Box

0452560

$35.99

2

Gasket

0452569

$10.39

3

Bolt

0450340

Unavailable

4

Box, Air

0452559

$127.99

5

Clamp

0452566

$4.79

6

Hose, Drain

0452567

$3.99

7

Plug, Trap

0452568

$12.79

8

Cover, Duct, Inlet

0452579

$31.99

9

Duct, Inlet, Clutch

0452575

$79.99

10

Clamp

0452578

$5.59

10

Clamp

0452578

$5.59

11

Boot, Duct

0453190

$13.59

11

Boot, Duct

0453190

$13.59

12

Clamp

0452577

$10.39

12

Clamp

0452577

$10.39

13

BOLT

0450824

$2.39

13

BOLT

0450824

$2.39

14

Duct, Outlet

0452576

$95.99

15

Duct

0452557

$23.99

16

Clamp

0452561

$7.99

17

Bolt

0450667

$5.59

18

Asm., Fuel Line Clip

0450865

$11.19

18

Asm., Fuel Line Clip

0450865

$11.19

19

Tube, Breather, Inlet [If built after 3/21/05]

0450363-083

$5.59

19

Tube, Breather, Inlet [If built before 3/21/05]

0452572

Unavailable

20

Clip

0450054

$1.49

20

Clip

0450054

$1.49

20

Clip

0450054

$1.49

21

Bolt

0450309

Unavailable

22

Clip

0452795

$3.99

23

Fitting, Plastic [If built before 3/21/05]

0453186

Unavailable

24

Tube, Breather, Ventilated

0452794

$47.99

25

Spring

0452793

$7.19

26

Clip, Retaining [If built before 3/21/05]

0453188

Unavailable

27

Tube, Oil Separator [If built before 3/21/05]

0453189

$8.08

29

Separator, Oil [If built after 3/21/05]

0453184

$63.99

29

Separator, Oil [If built before 3/21/05]

0452307

Unavailable

30

Nut, Flange

0450880

$3.99

31

Tube, Breather, Outlet [If built after 3/21/05]

0450363-475

$31.99

31

Tube, Breather, Outlet [If built before 3/21/05]

0452573

Unavailable

32

Clamp

0452562

$7.99

33

Boot

0452563

$27.99

34

Washer, Flat

0453098

$3.99

35

Duct, Air Box

0453085

Unavailable

36

Rivet

0453097

$3.19

37

Element, Air Cleaner

0452306

Unavailable

38

Clip

0452565

$4.79
