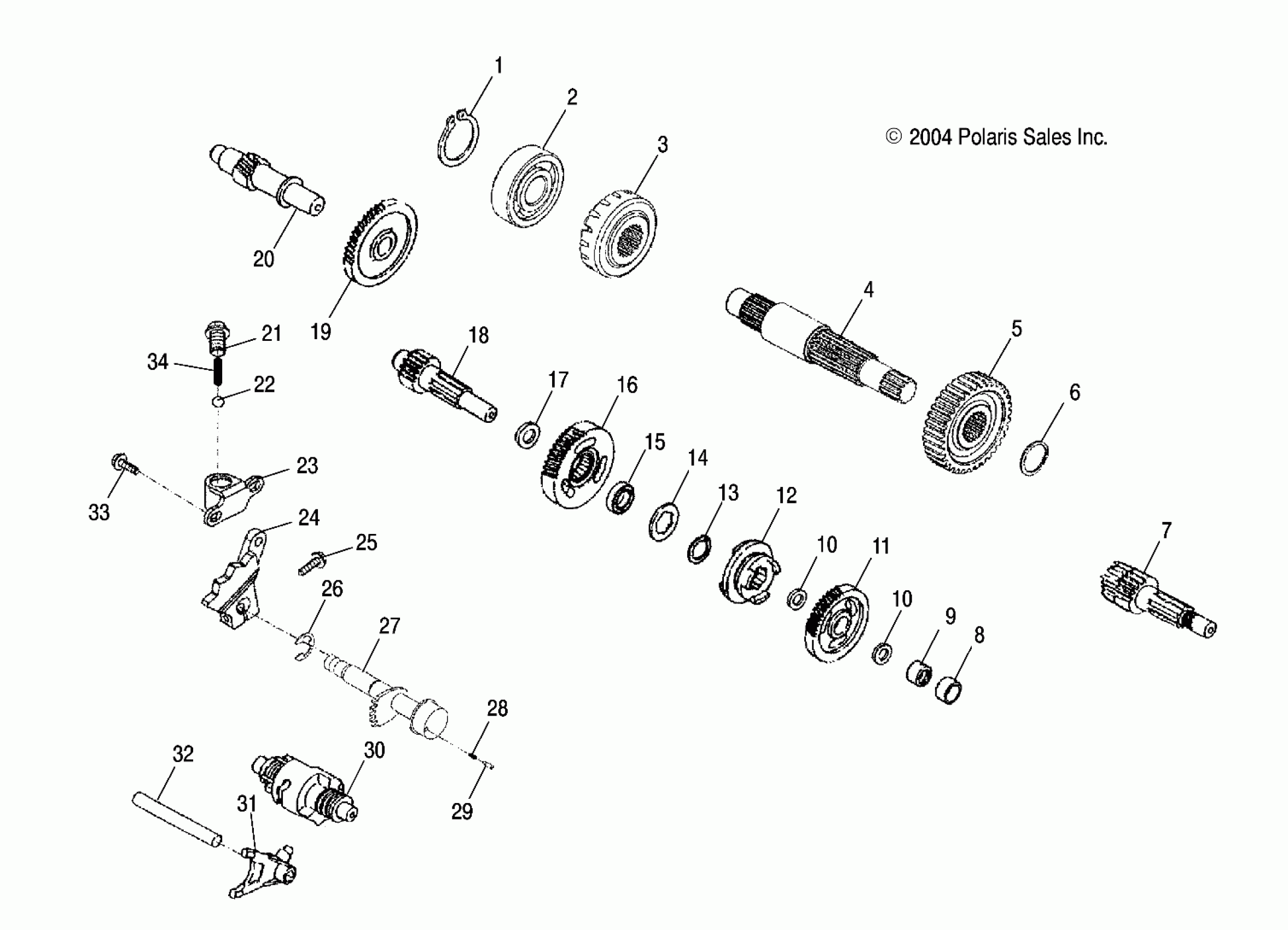

Polaris PHOENIX 200 - A05PB20AA TRANSMISSION - A05PB20AA/AB/AC/AD (4999659965A13) Diagram

#

Description
Price

-

Asm., Reverse Gear [Incl. 15,16]

0452519

$135.99

-

Asm., Spur Gear [Incl. 9,11]

0452514

Unavailable

1

Ring, Retainer

0452789

$5.59

2

BEARING, BALL

0452349

$35.99

3

GEAR, FINAL RING

0452531

$103.99

4

SHAFT

0452528

$91.99

5

GEAR

0452530

$103.99

6

CLIP, CIR

0452529

$1.59

7

SHAFT, DRIVE

0452525

$91.99

8

Collar, Shaft

0452512

Unavailable

9

BUSHING

0452516

$6.15

10

WASHER, FLAT

0452513

$4.79

10

WASHER, FLAT

0452513

$4.79

11

Gear, Spur

0452515

Unavailable

12

RATCHET, SHIFT

0452517

$83.99

13

CLIP, RETAINER

0452339

$3.99

14

WASHER, SPLINE

0452518

$7.99

15

BEARING, NEEDLE

0452521

$15.99

16

Gear, Reverse

0452520

$76.89

17

WASHER, FLAT

0452522

$10.39

18

Shaft, Transmission

0452523

$94.99

19

GEAR, COUNTER

0452527

$103.99

20

SHAFT, COUNTER

0452526

$79.99

21

Bolt, Detent

0452635

$12.21

22

BALL, STEEL

0452134

$4.79

23

Housing

0452634

Unavailable

24

Detent

0452633

$71.10

25

BOLT

0452400

$3.99

26

E-CLIP

0452161

$3.99

27

SPINDLE

0452160

$63.99

28

SPRING, DRUM SENSOR

0452162

$3.99

29

ROLLER, DRUM SENSOR

0452163

$7.19

30

Drum, Gear Shift Asm.

0452159

$159.99

31

FORK, SHIFT

0452157

$59.99

32

SHAFT, GEAR SHIFT

0452158

$8.79

33

BOLT

0452330

$3.99

34

Spring

0452135

Unavailable
