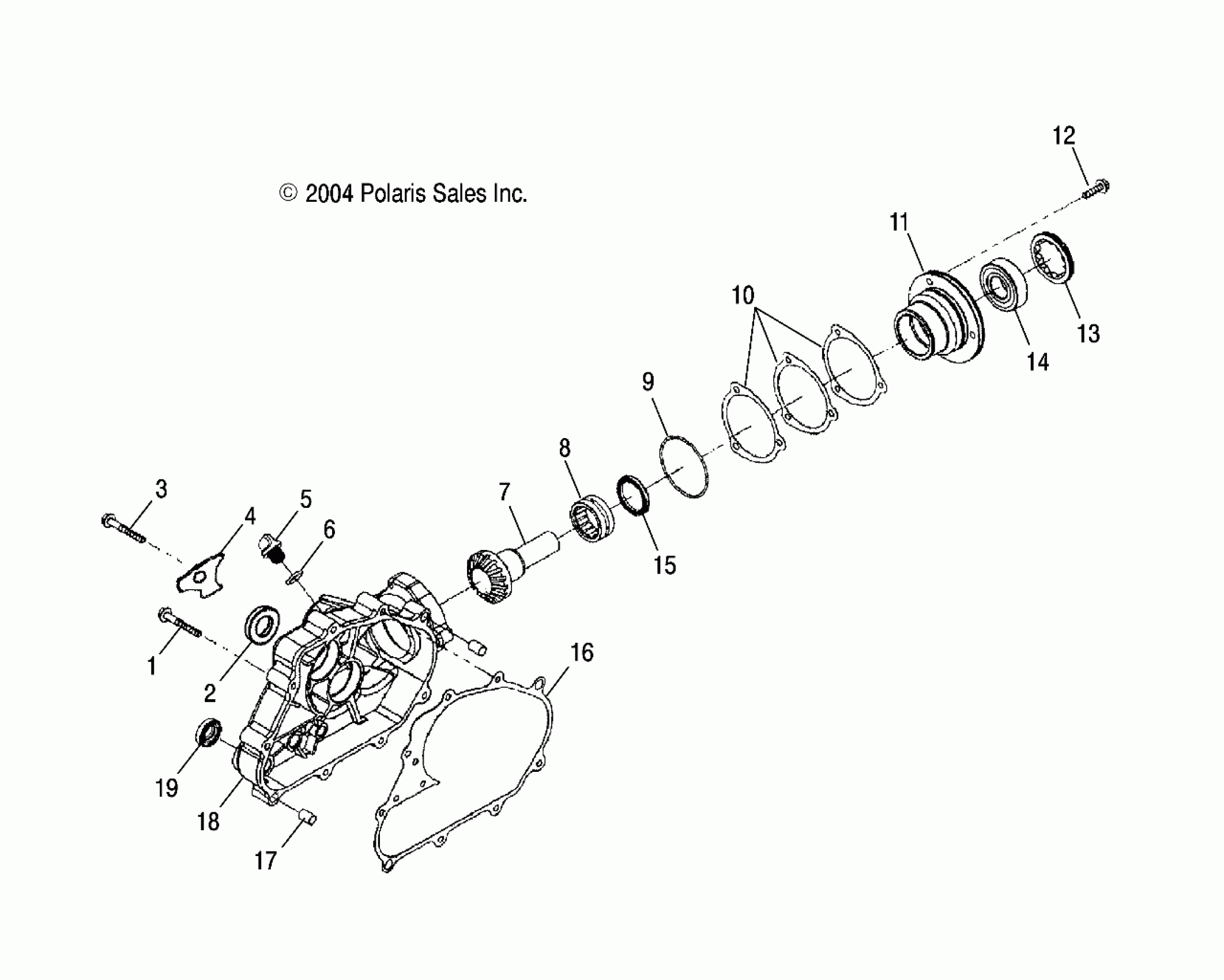

Polaris PHOENIX 200 - A05PB20AA DRIVE ASSEMBLY, REAR - A05PB20AA/AB/AC/AD (4999659965A06) Diagram

#

Description
Price

1

BOLT

0452343

$3.99

2

Asm., Sight Glass

0452333

$13.99

3

BOLT

0452330

$3.99

4

RETAINER, SIGHT GLASS

0453245

$4.79

5

PLUG, OIL

0451813

$5.59

6

O-Ring

0450154

Unavailable

7

GEAR, SHAFT, OUTPUT

0452356

$103.99

8

BEARING, NEEDLE, ID 30MM

0452358

$71.99

9

O-RING

0452353

$2.39

10

SHIM, SET

0452352

$12.79

11

COLLAR, GEAR SHAFT

0452351

$87.99

12

BOLT

0452350

$3.99

13

NUT, LOCK

0452355

$27.99

14

BEARING, BALL

0452354

$43.99

15

SEAL, OIL

0452357

$15.99

16

GASKET, TRANSMISSION COVER

0452334

Unavailable

17

PIN, DOWEL

0450142

$3.99

18

Cover, Transmission

0452332

Unavailable

19

SEAL, OIL

0452175

$11.99
