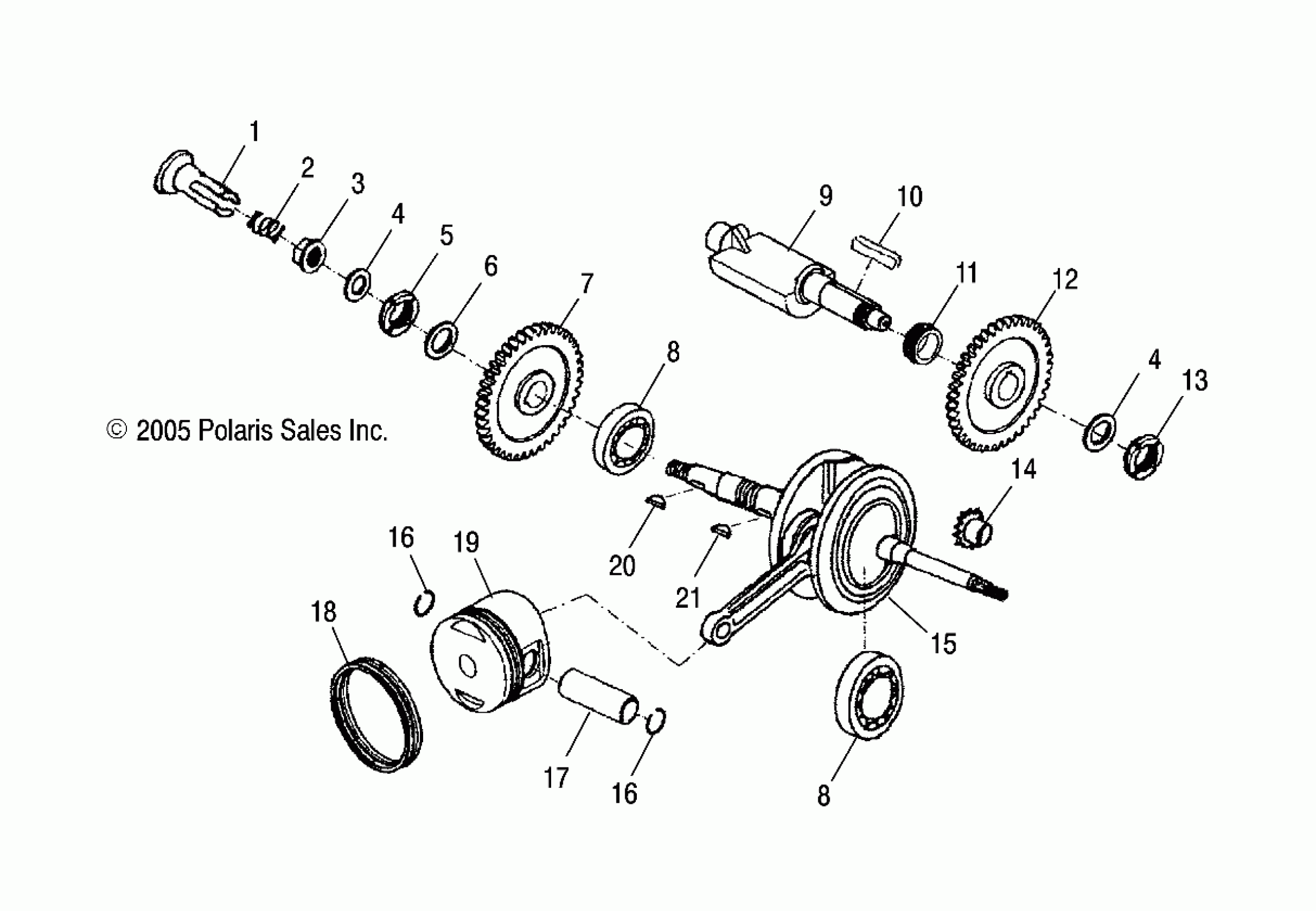

Polaris PHOENIX 200 - A05PB20AA CRANKSHAFT and PISTON - A05PB20AA/AB/AC/AD (4999202449920244A04) Diagram

#

Description
Price

1

TUBE, OIL, CRANKSHAFT

0452445

Unavailable

2

Spring, Oil

0452444

$4.79

3

Nut, Flange

0452442

$7.99

4

WASHER

0450264

$3.99

4

WASHER

0450264

$3.99

5

Nut, Lock

0452441

$7.19

6

Washer, Gear

0452440

$4.79

7

Gear, Balance

0452434

$83.99

8

Bearing, Ball

0452427

$47.99

8

Bearing, Ball

0452427

$47.99

9

Shaft, Balance

0452435

$67.99

10

KEY, WOODRUFF

0452439

$7.99

11

SPROCKET, OIL PUMP

0452436

$39.99

12

GEAR, BALANCE, DRIVEN

0452437

$71.99

13

NUT, LOCK

0452438

$7.19

14

Sprocket, Timing

0452428

Unavailable

15

Kit, Crankshaft

0452426

Unavailable

16

Clip, Piston Pin

0452443

$3.99

16

Clip, Piston Pin

0452443

$3.99

17

Pin, Piston

0452433

$23.99

18

Ring [Set]

0452431

$59.99

19

Piston

0452432

$103.99

20

KEY, WOODRUFF

0452429

$5.59

21

Key, Woodruff

0452430

$6.65
