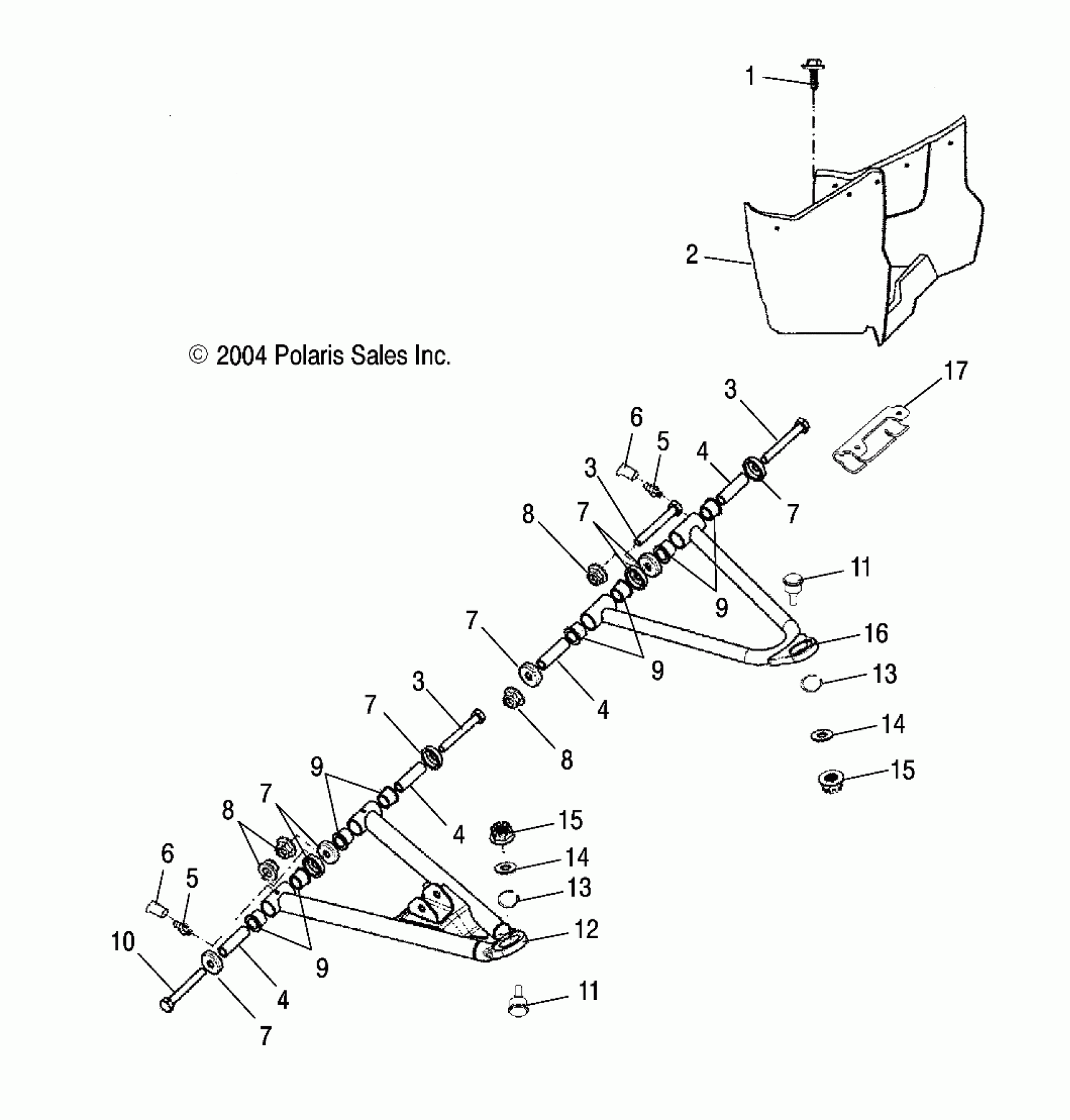

Polaris PHOENIX 200 - A05PB20AA CONTROL ARM and FOOTREST - A05PB20AA/AB/AC/AD (4999659965B05) Diagram

#

Description
Price

1

BOLT, HEX

0452215

$3.97

2

Footrest, LH

0452628

$164.99

2

Footrest, RH

0452627

$128.99

3

Bolt

0452626

$5.69

3

Bolt

0452626

$5.69

3

Bolt

0452626

$5.69

4

Spacer

0452625

$8.73

4

Spacer

0452625

$8.73

4

Spacer

0452625

$8.73

4

Spacer

0452625

$8.73

5

Valve, Grease

0450320

$6.46

5

Valve, Grease

0450320

$6.46

6

Cap, Rubber

0450321

Unavailable

6

Cap, Rubber

0450321

Unavailable

7

Cap, Rubber

0451762

$8.89

7

Cap, Rubber

0451762

$8.89

7

Cap, Rubber

0451762

$8.89

7

Cap, Rubber

0451762

$8.89

7

Cap, Rubber

0451762

$8.89

7

Cap, Rubber

0451762

$8.89

8

Nut

0450249

$3.97

8

Nut

0450249

$3.97

8

Nut

0450249

$3.97

9

Bushing

0451763

$10.32

9

Bushing

0451763

$10.32

9

Bushing

0451763

$10.32

9

Bushing

0451763

$10.32

10

Bolt

0451764

$10.32

11

Joint, Ball

7081190

$48.40

11

Joint, Ball

7081190

$48.40

12

A-Arm, Lower, LH

0452622

Unavailable

12

A-Arm, Lower, RH

0452621

Unavailable

13

Ring, Snap

0452630

$4.76

13

Ring, Snap

0452630

$4.76

14

WASHER

0450279

$3.17

14

WASHER

0450279

$3.17

15

NUT

0450502

$9.52

15

NUT

0450502

$9.52

16

A-Arm, Upper, LH

0452624

Unavailable

16

A-Arm, Upper, RH

0452623

$150.06

17

Retainer, Brake Line, Front

0453079

$27.78
