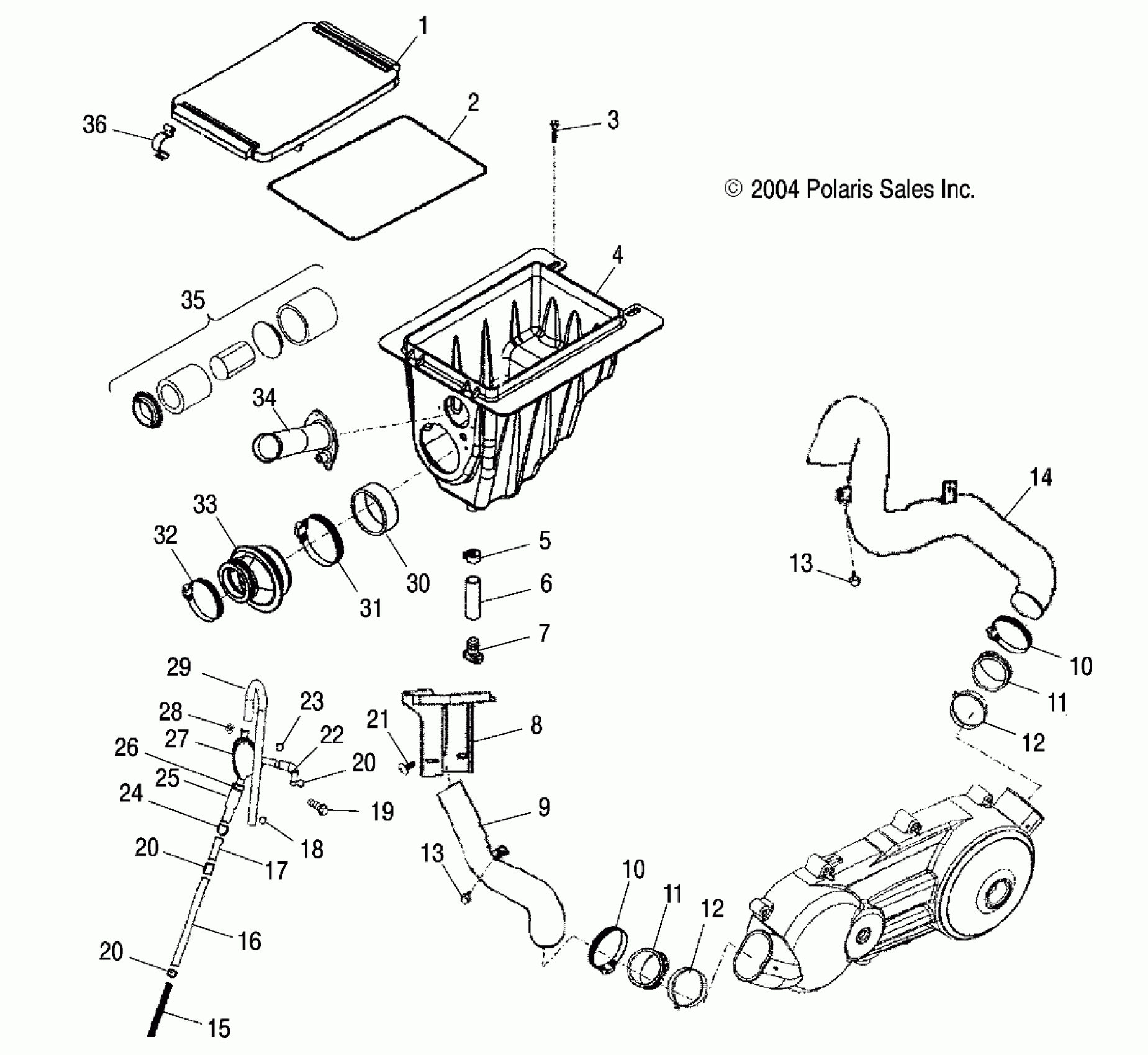

Polaris PHOENIX 200 - A05PB20AA AIR CLEANER - A05PB20AA/AB/AC/AD (4999659965B01) Diagram

#

Description
Price

-

Asm., Air Box [Incl. 1-7,30-36]

0453084

Unavailable

-

Asm., Breather Tube [Incl. 15-20,22-29]

0452570

Unavailable

1

Cover, Air Box

0452560

$35.99

2

Gasket

0452569

$10.39

3

Bolt

0450340

Unavailable

4

Box, Air

0452559

$127.99

5

Clamp

0452566

$4.79

6

Hose, Drain

0452567

$3.99

7

Plug, Trap

0452568

$12.79

8

Cover, Duct, Inlet

0452579

$31.99

9

Duct, Inlet, Clutch

0452575

$79.99

10

Clamp

0452578

$5.59

10

Clamp

0452578

$5.59

11

Boot, Duct

0452574

Unavailable

11

Boot, Duct

0452574

Unavailable

12

Clamp

0452577

$10.39

12

Clamp

0452577

$10.39

13

BOLT

0450824

$2.39

13

BOLT

0450824

$2.39

14

Duct, Outlet

0452576

$95.99

15

Spring

0452793

$7.19

16

Tube, Breather, Ventilated

0452794

$47.99

17

Fitting, Plastic

0453186

Unavailable

18

Clip

0452795

$3.99

19

Bolt

0450701

$1.49

20

Clip

0450054

$1.49

20

Clip

0450054

$1.49

20

Clip

0450054

$1.49

21

Bolt

0450667

$5.59

22

Tube, Breather, Inlet

0452572

Unavailable

23

Clip

0452796

$3.99

24

Clip, Retaining

0453188

Unavailable

25

Tube, Oil Separator

0453189

$8.08

26

Clip, Retaining

0453187

Unavailable

27

Separator, Oil

0452307

Unavailable

28

Nut, Flange

0450880

$3.99

29

Tube, Breather, Outlet

0452573

Unavailable

30

Duct

0452557

$23.99

31

Clamp

0452561

$7.99

32

Clamp

0452562

$7.99

33

Boot

0452563

$27.99

34

Inlet, Air Box

0453085

Unavailable

35

Element, Air Cleaner

0452306

Unavailable

36

Clip

0452565

$4.79
