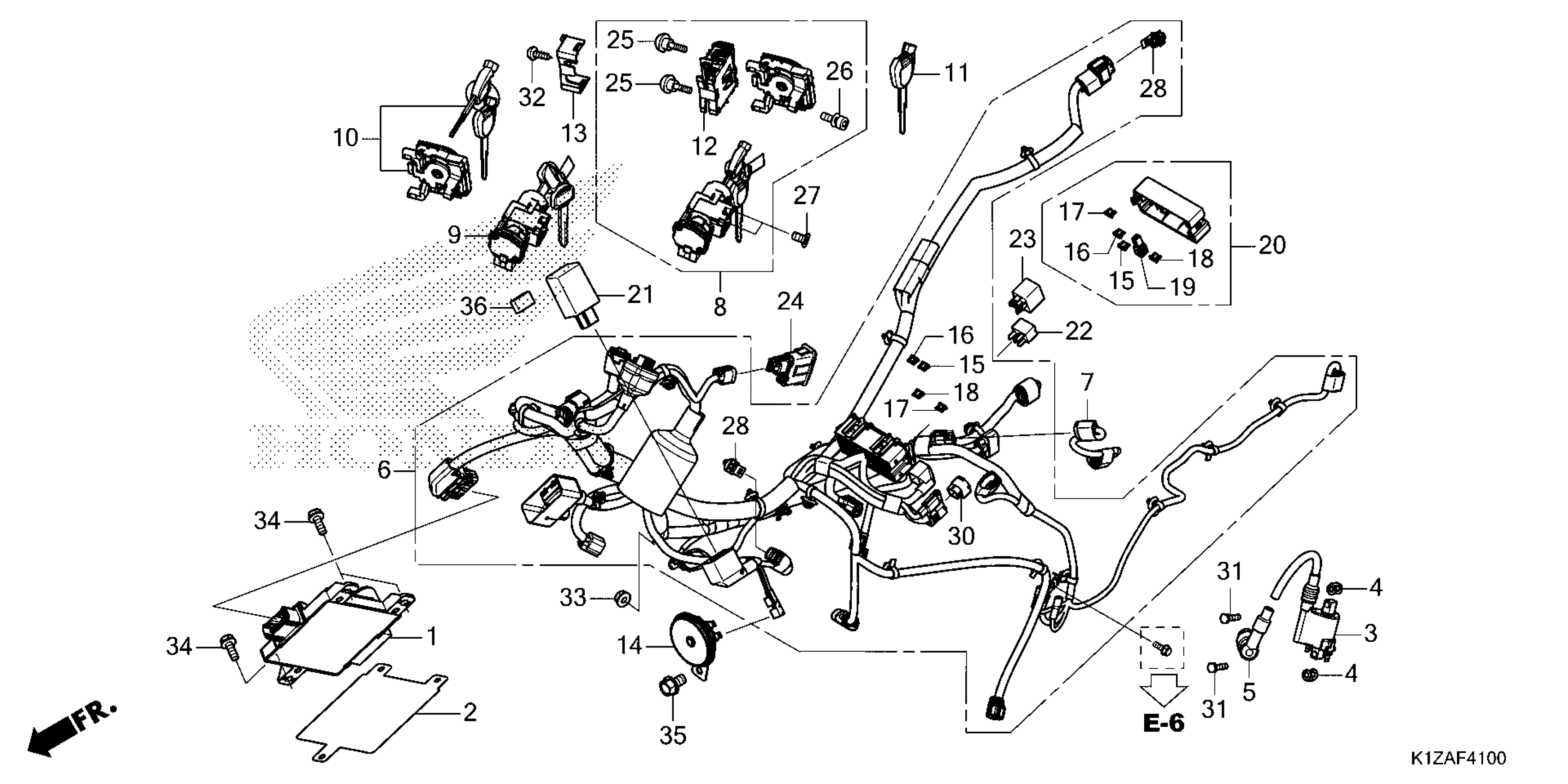

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 WIRE HARNESS Diagram

#

Description
Price

1

CONTROL UNIT, ENGINE

30400-K1Z-AC1

$109.94

2

COVER, ENGINE CONTROL UNIT

30401-K1Z-J10

$1.49

3

COIL COMP (MP39)

30510-K1Z-J51

$8.67

4

SPACER, IGNITION COIL

30520-GFM-900

$2.61

5

CAP ASSY., NOISE SUPPRESSOR

30700-K0R-V01

$5.01

6

WIRE HARNESS

32100-K1Z-AC0

$171.22

7

SUB-HARNESS

32104-K1Z-J50

$2.20

8

SWITCH, COMB&LOCK

35100-K97-A02

$46.56

9

SWITCH COMP

35101-K97-A01

$36.03

10

SHUTTER, KEY

35110-K35-V02

$22.69

11

KEY, BLANK (V0KEYTOP2REPORDER) (NOT AVAILABLE) | (Optional).

35121-K35-V00

Unavailable

12

SWITCH ASSY., FUEL LID & SEAT OPENER

35190-K97-B01

$6.98

13

COVER, CABLE

35191-K27-V01

$1.92

14

HORN (LOW)

38120-K1Y-DC1

$10.12

15

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

16

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

17

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

18

FUSE, BLADE (30A)

38221-SNA-A81

$2.49

19

PULLER, MINI FUSE

38235-SNA-A01

$3.84

20

COVER ASSY., POWER BOX

38255-K1Y-J11

$5.75

21

RELAY

38301-MLL-H01

$53.75

22

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$13.02

23

RELAY, POWER (PANASONIC)

38502-KWN-701

$34.93

24

CHARGER UNIT (TYPEC)

38940-K1Y-DC1

$16.57

25

SCREW, SCREEN SETTING

90101-MT4-000

$1.79

26

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

27

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.84

28

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

30

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

31

BOLT, HEX. (6X22)

92101-06022-4J

$4.19

32

SCREW, TAPPING (4X12)

93901-24320

$1.49

33

NUT, FLANGE (6MM)

94050-06080

$1.49

34

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

35

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

36

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01
