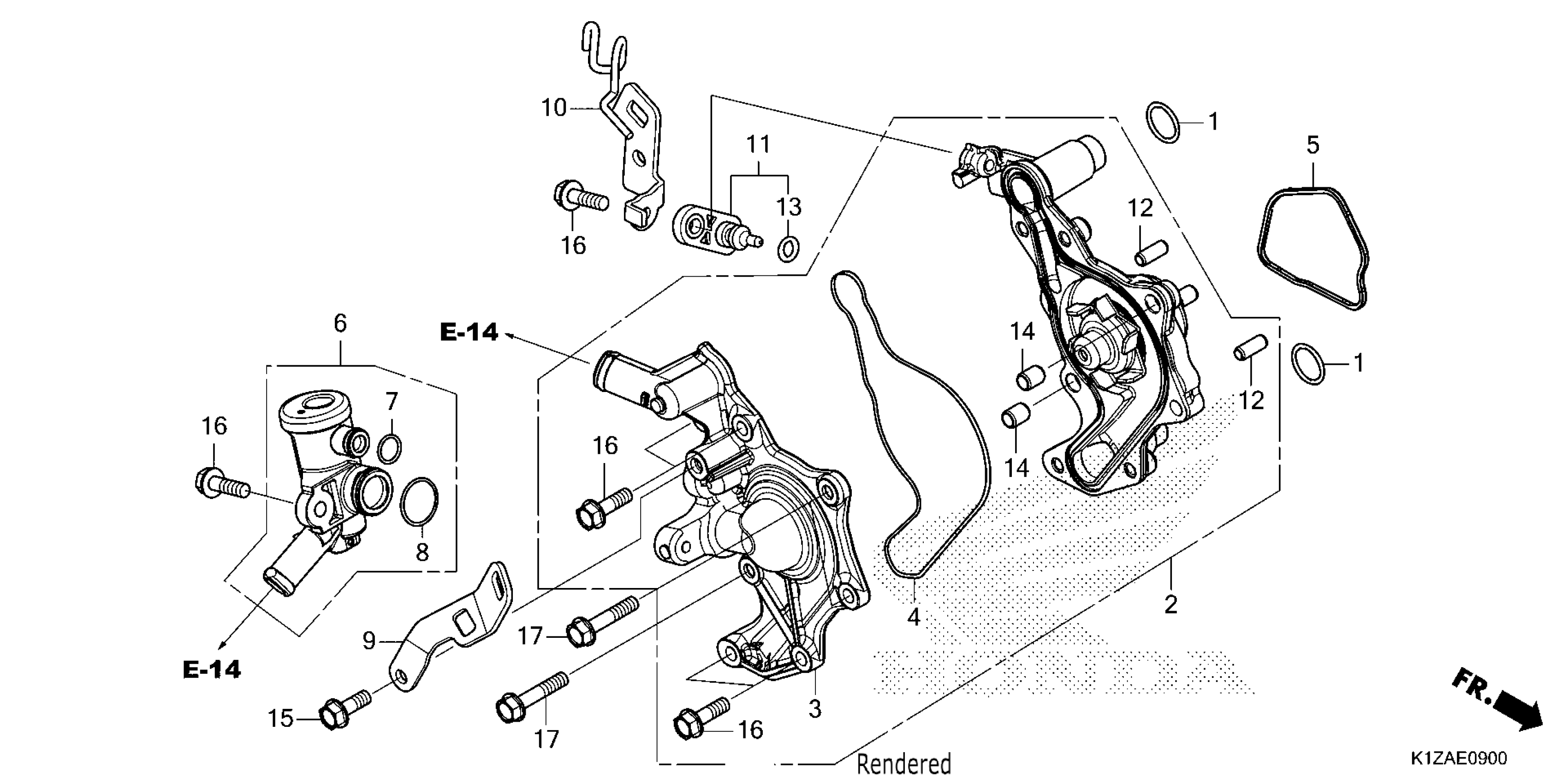

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 WATER PUMP Diagram

O-RING (15.4X2)

12207-KWN-900

$1.49

WATER PUMP ASSY.

19200-K3V-N00

$28.82

COVER, WATER PUMP

19221-K3V-N00

$7.20

GASKET, WATER PUMP COVER

19226-K0R-V00

$1.49

GASKET, WATER PUMP BODY

19227-K0R-V01

$1.49

THERMOSTAT ASSY.

19300-K1N-V01

$24.77

O-RING (10.2X1.5)

19381-K1N-V01

$1.49

O-RING

19381-KWN-900

$1.93

STAY, ENGINE SUB-HARNESS

32115-K1Z-J10

$1.49

STAY, ENGINE HARNESS

32963-K1Z-J10

$1.49

SENSOR ASSY., WATER TEMPERATURE

37870-K1N-V01

$4.87

PIN, DOWEL (6X15)

90702-MG8-000

$2.97

O-RING

91304-K1N-V01

$27.49

PIN A, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
