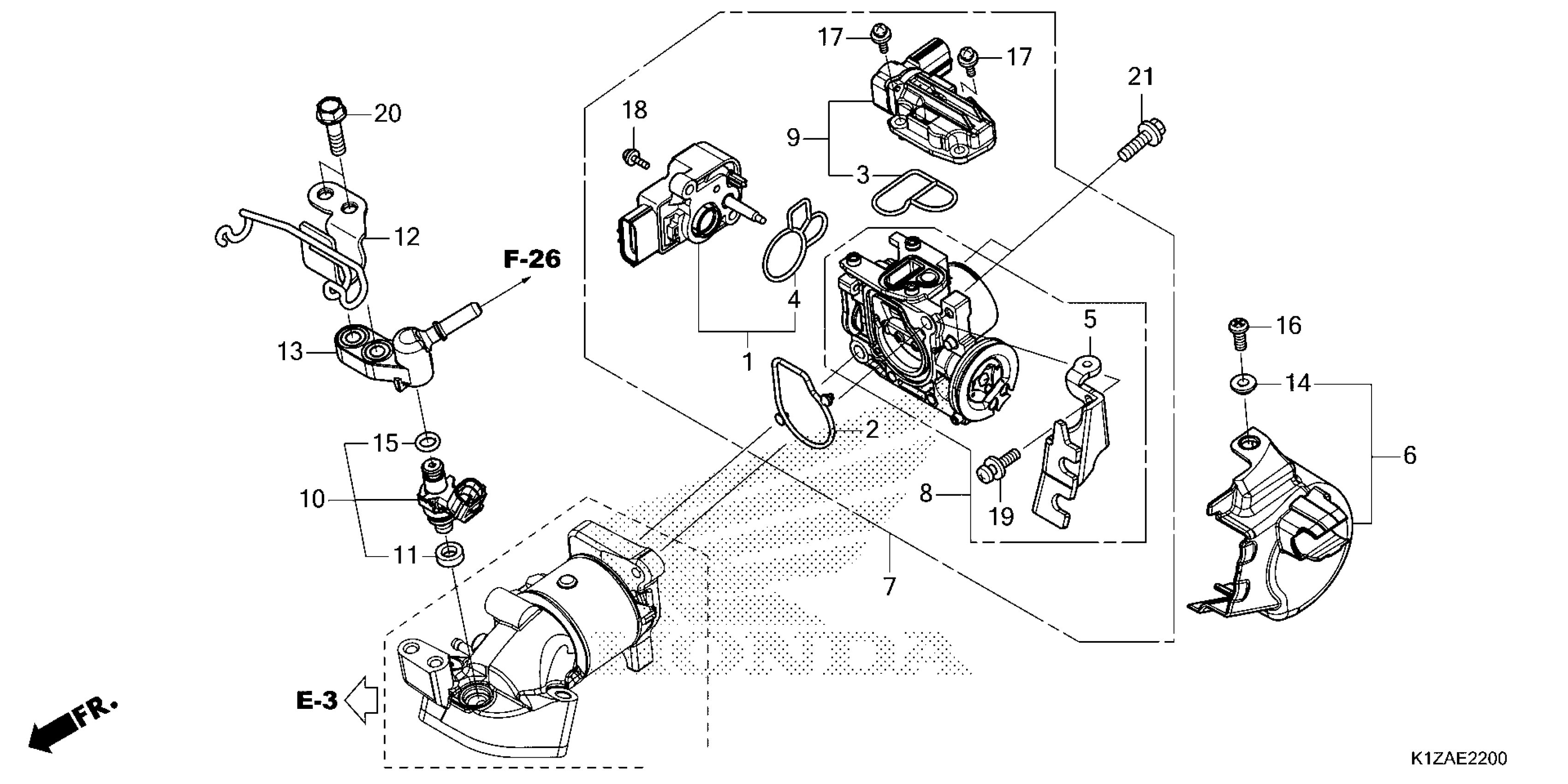

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 THROTTLE BODY@FUEL INJECTOR Diagram

SENSOR SET (NOT AVAILABLE)

16060-K0P-D61

$40.80

O-RING, THROTTLE BODY

16075-K0R-V01

$2.08

O-RING

16076-K0R-V01

$2.28

O-RING

16077-K0P-D01

$1.49

STAY, WIRE

16169-K0R-V01

$7.05

COVER, THROTTLE BODY

16305-K1Y-J70

$1.49

BODY ASSY., THROTTLE

16400-K0R-V41

$80.44

BODY SET

16410-K0R-V41

$32.06

VALVE SET, IDLE AIR CONTROL

16430-K0R-V01

$74.44

INJECTOR ASSY., FUEL

16450-K0S-V01

$29.83

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

CLAMP, BREATHER TUBE

17219-K0R-V00

$3.13

JOINT, INJECTOR

17560-K0R-V00

$6.31

COLLAR, THROTTLE BODY COVER

61106-K1Z-CA0

$1.49

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

SCREW, PAN (5X12)

93500-05012-0H

$1.49

SCREW-WASHER (4X10)

93891-04010-08

$1.49

SCREW-WASHER (4X10) This part replaces 93891-04010-18.

93891-04010-08

$1.49

SCREW-WASHER (4X16)

93891-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93891-04016-18.

93891-04016-08

$1.49

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X22) This part replaces 95801-06022-00.

95701-06022-00

$1.80

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
