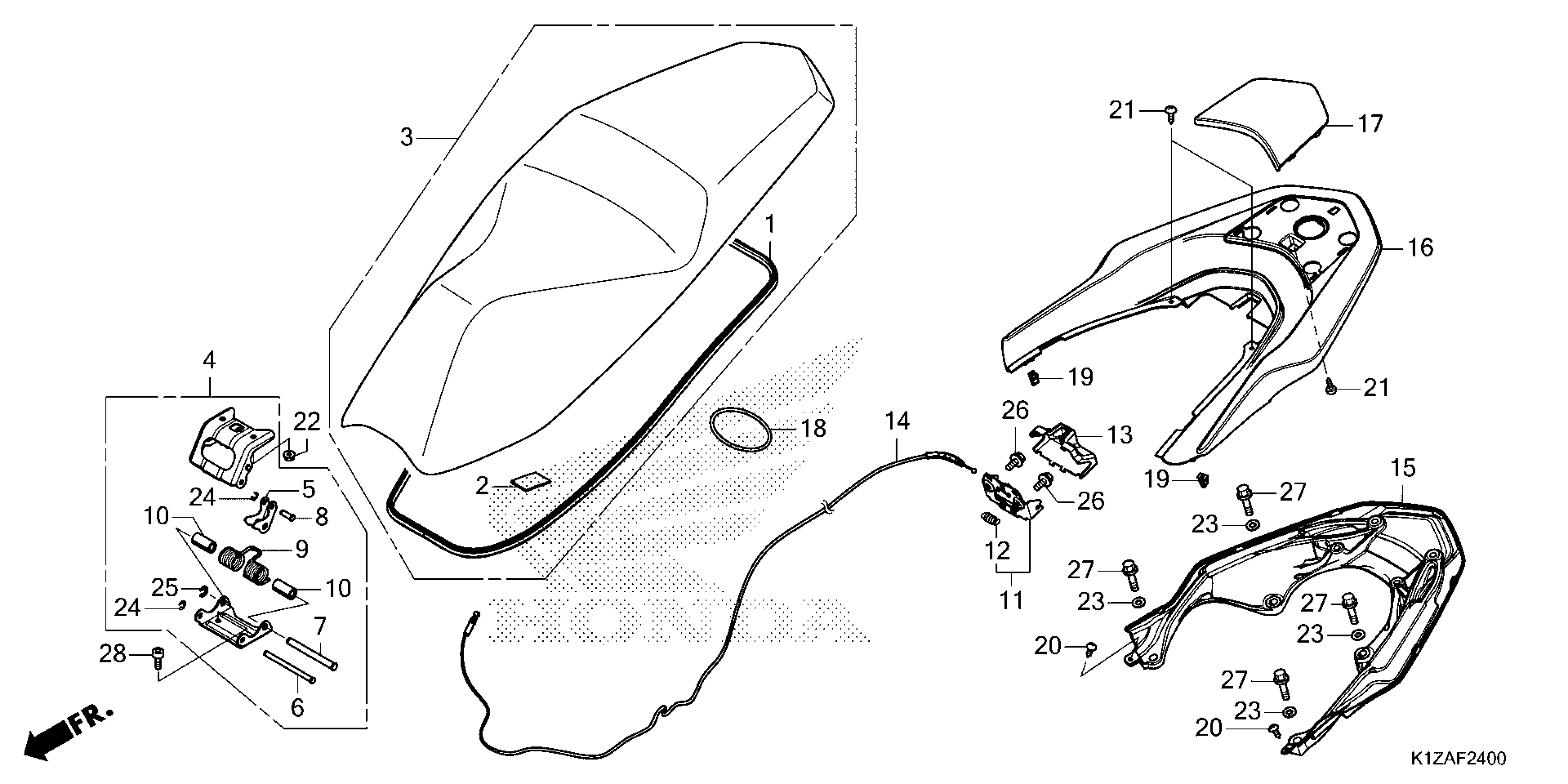

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 SEAT Diagram

#

Description
Price

1

RUBBER, SEAL

77115-K1Z-J10

$3.54

2

CUSHION, HELMET

77116-K0R-V00

$1.49

3

SEAT, DOUBLE (TYPE1)

77200-K1Y-DC0ZA

$48.08

4

HINGE ASSY., SEAT

77210-K97-T00

$40.48

5

LINK A, SEAT HINGE

77213-K97-T00

$1.49

6

PIN A, SEAT HINGE

77215-K97-T00

$3.64

7

PIN B, SEAT HINGE

77216-K97-T00

$5.02

8

PIN C, SEAT HINGE

77217-K97-T00

$2.69

9

SPG, SEAT HINGE

77218-K97-T00

$7.38

10

COLLAR, SEAT HINGE

77219-K97-T00

$1.49

11

CATCH, SEAT

77230-K35-V00

$5.10

12

SPRING, SEAT LOCK

77234-K35-V00

$1.49

13

COVER, SEAT CATCH

77237-K35-V00

$1.49

14

CABLE, SEAT LOCK

77240-K1Z-J11

$3.90

15

GRAB RAIL, RR.

84100-K1Z-J10

$38.64

16

COVER *NHD01P*

84151-K1Z-J10A3

$23.63

16

COVER *NHC60P*

84151-K1Z-J10YV

$23.63

17

LID *NHD01P*

84152-K1Z-J10A3

$6.56

17

LID *NHC60P*

84152-K1Z-J10YV

$6.56

18

BAND, TOOL

89012-KZL-930

$1.49

19

CLIP, SNAP FITTING (PO)

90666-K59-A11

$1.49

20

SCREW, TAPPING (4X16)

93903-34420

$1.49

21

SCREW, TAPPING (4X16)

93903-34480

$1.49

22

NUT, FLANGE (6MM)

94050-06080

$1.49

23

WASHER, PLAIN (8MM)

94101-08800

$1.93

24

E-RING (4MM) (NOT AVAILABLE)

94540-04017

$2.34

25

E-RING (6MM)

94540-06017

$2.90

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

27

BOLT, FLANGE (8X30)

95701-08030-08

$1.49

28

BOLT, SOCKET (6X12)

96600-06012-08

$1.74
