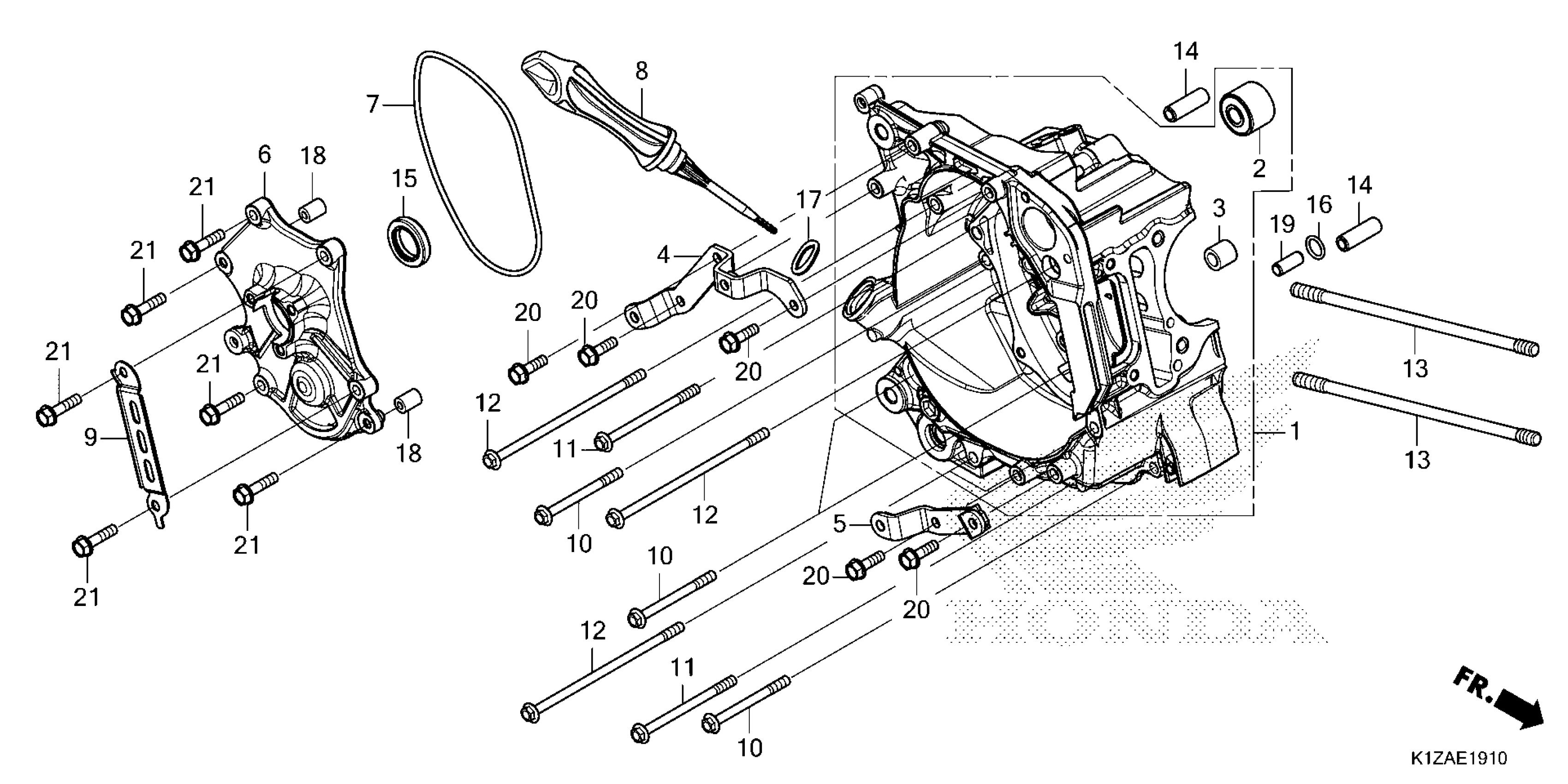

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 RIGHT CRANKCASE Diagram

CRANKCASE, R.

11100-K1N-V00

$91.62

BUSH, ENGINE HANGER RUBBER

11103-K0J-N00

$7.65

BUSH, MAIN STAND

11205-GBC-300

$0.73

PLATE, RIGIDITY (UPPER)

11320-K0R-V00

$1.84

PLATE, RIGIDITY (LOWER)

11330-K0R-V00

$1.29

BASE, STATOR

11361-K3V-N00

$5.66

GASKET, STATOR BASE

11363-K0R-V00

$0.88

DIPSTICK, OIL

15651-K1Y-DC0

$1.96

CLAMP, ALTERNATOR WIRE

32961-K0R-V00

$0.56

BOLT, FLANGE (6X65) (LNSH)

90006-K0R-V00

Unavailable

BOLT, FLANGE (6X80) (LNSH)

90007-K0R-V00

$0.38

BOLT, FLANGE (6X130) (LNSH)

90008-K0R-V00

$0.53

BOLT A, STUD (8X209.2)

90031-K0R-V00

$1.26

BOLT A (8X209.2)

90031-K1Y-DC0

$0.97

PIN, DOWEL SPECIAL (6.3X10X30)

90702-KWN-900

$1.26

OIL SEAL (20.8X32X6) (ARAI)

91201-K35-J01

$2.21

OIL SEAL (20.8X32X6)

91201-K59-A11

$2.18

O-RING (8MM)

91303-001-010

$2.24

O-RING (18X3)

91307-035-000

$2.75

PIN A, DOWEL (8X10)

94301-08100

$2.62

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

BOLT, FLANGE (6X25)

95701-06025-00

$1.66
