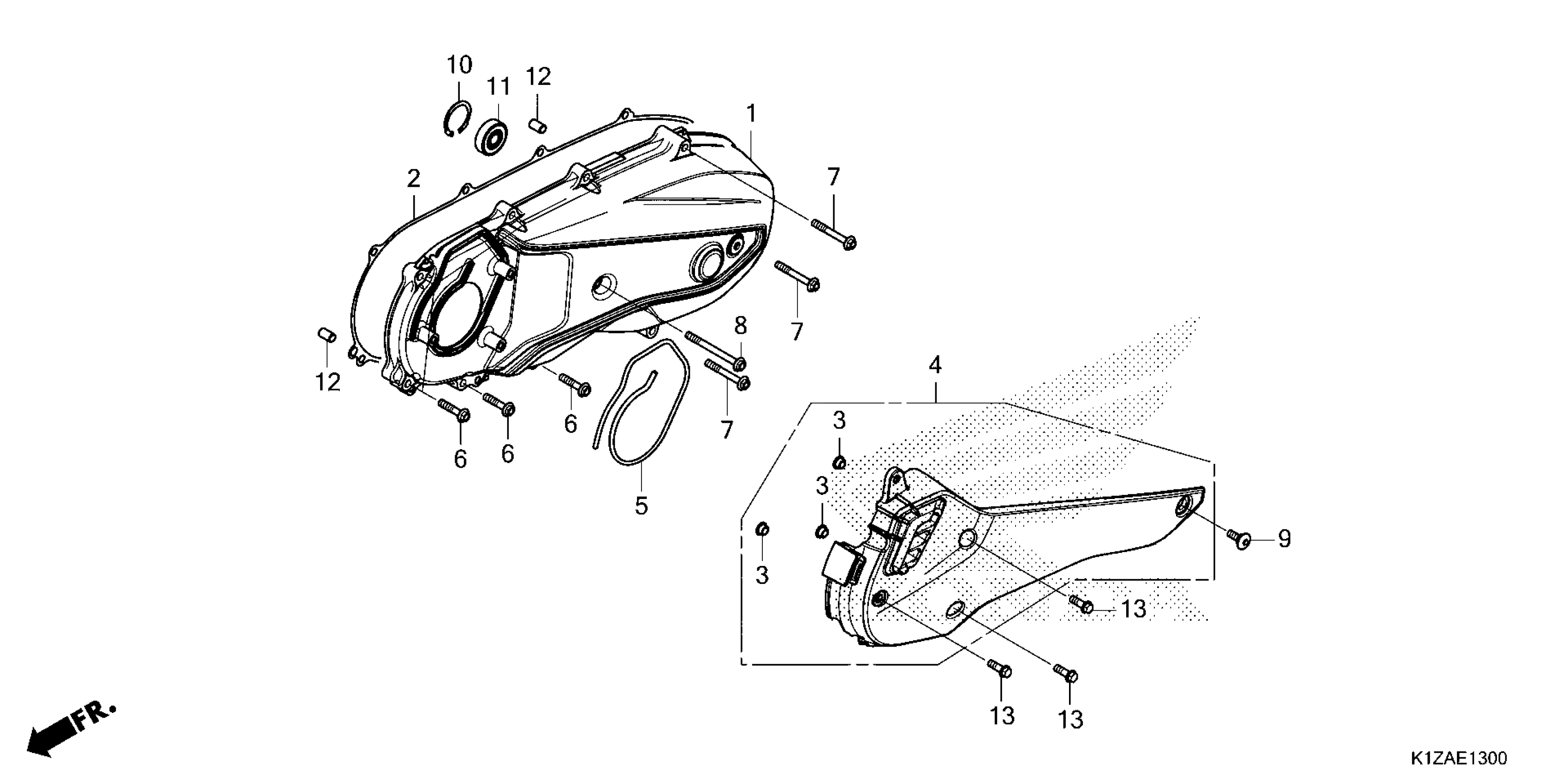

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 LEFT SIDE COVER Diagram

COVER, L. SIDE

11341-K1Y-DC0

$29.38

GASKET, L. COVER (NICHIAS)

11395-K1N-V01

$2.01

COLLAR

19416-KEY-900

$0.72

DUCT, L. COVER

19640-K1Z-J10

$6.11

SEAL, L. COVER

19649-K01-900

$6.51

BOLT, FLANGE (6X28) (LNSH)

90004-K0R-V00

Unavailable

BOLT, FLANGE (6X45) (LNSH)

90004-K1Z-J10

$0.41

BOLT, FLANGE (6X65) (LNSH)

90006-K0R-V00

Unavailable

BOLT, SOCKET (6X18)

90101-K29-900

$2.99

CIRCLIP (INNER) (32MM)

90652-KVB-900

$0.57

BEARING (6002UU) (NSK)

91005-K1Z-J10

$36.65

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62

BOLT, FLANGE (6X18)

96001-06018-07

$1.16
