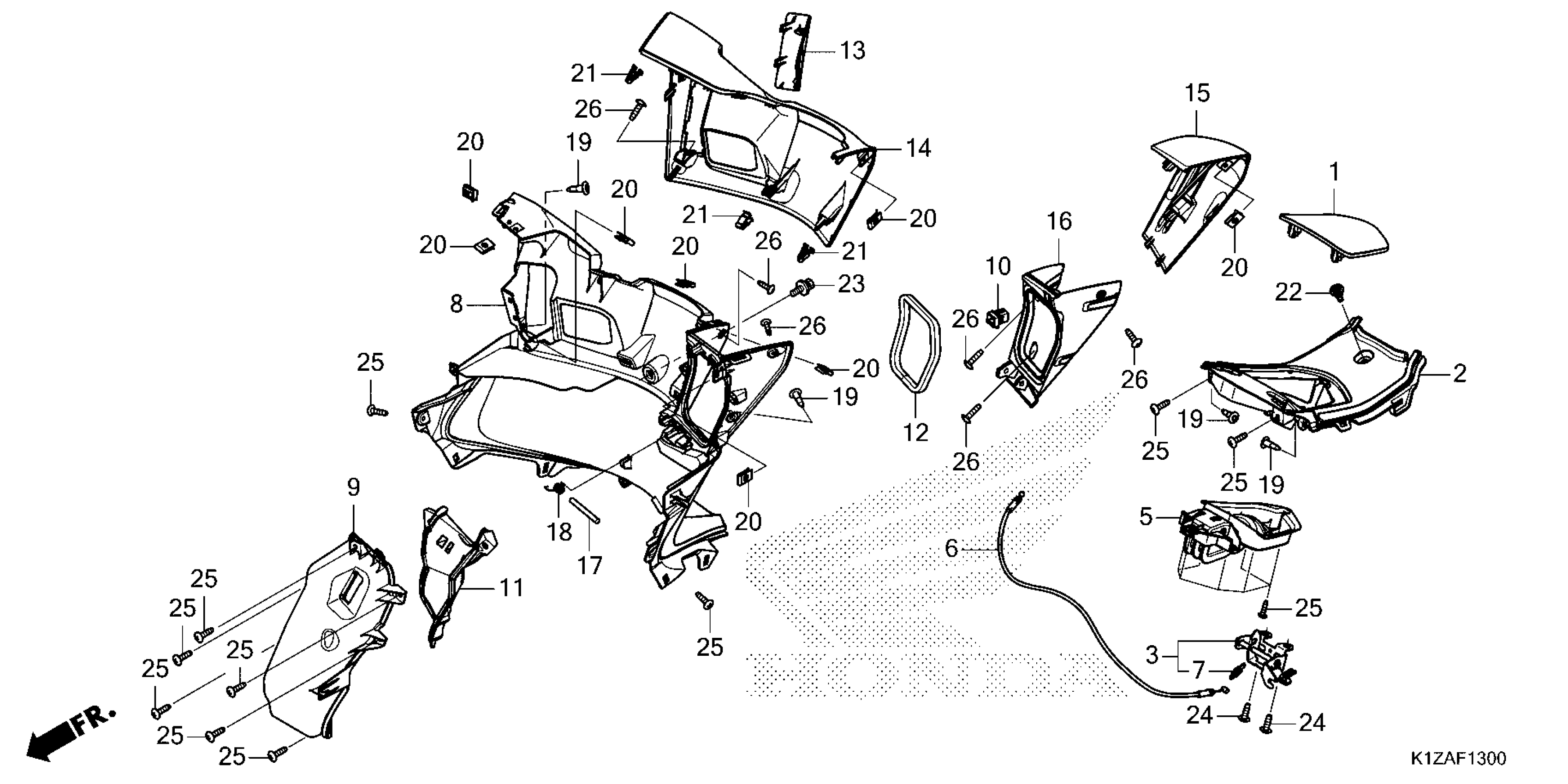

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 INNER COVER Diagram

#

Description
Price

1

LID, FUEL *NH1*

64405-K1Y-DC0ZA

$0.68

2

COVER, CENTER *NH1*

64410-K1Y-DC0ZA

$1.25

3

LOCK ASSY., FUEL LID

64440-K1Y-DC0

$2.21

5

HINGE ASSY,FUEL

64450-K1Z-J12

$16.47

6

CABLE, FUEL LID

64455-K1Z-J11

$2.16

7

SPRING

64443-K1Y-DC0

$0.40

8

COVER (INNER) *NH1*

81131-K1Y-DC0ZA

$5.93

9

POCKET (INNER)

81132-K1Z-B00

$2.63

10

LATCH, BOX (INNER)

81133-K1J-D01

$3.06

11

COVER, HINGE

81133-K1Y-DC0

$0.94

12

SEAL, BOX (INNER)

81136-K97-T00

$2.18

13

LID *NHC60P*

81137-K1Y-DC0ZB

$3.21

13

LID *NHD01P*

81137-K1Y-DC0ZJ

$3.21

14

OUTER *NHC60P*

81140-K1Y-DC0ZB

$31.62

14

OUTER *NHD01P*

81140-K1Y-DC0ZJ

$31.62

15

LID, POCKET *NHC60P*

81141-K1Y-DC0ZB

$6.75

15

LID, POCKET *NHD01P*

81141-K1Y-DC0ZJ

$6.75

16

BASE (INNER) *NH1*

81143-K1Y-DC0ZA

$1.49

17

PIN, POCKET (INNER)

81144-K97-T00

$2.18

18

SPG, POCKET (INNER)

81293-K97-T00

$2.25

19

RIVET, PUSH (6MM)

90116-K3V-N01

$0.13

20

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

21

CLIP, SNAP FITTING (PO)

90666-K59-A11

Unavailable

22

SCREW, PAN (5X11.5)

91509-GE2-760

$2.19

23

BOLT-WASHER (6X12)

93404-06012-07

$1.50

23

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.50

24

SCREW, TAPPING (5X16)

93903-25320

$0.84

25

SCREW, TAPPING (4X16)

93903-34420

$0.76

26

SCREW, TAPPING (4X16)

93903-34480

$0.84
