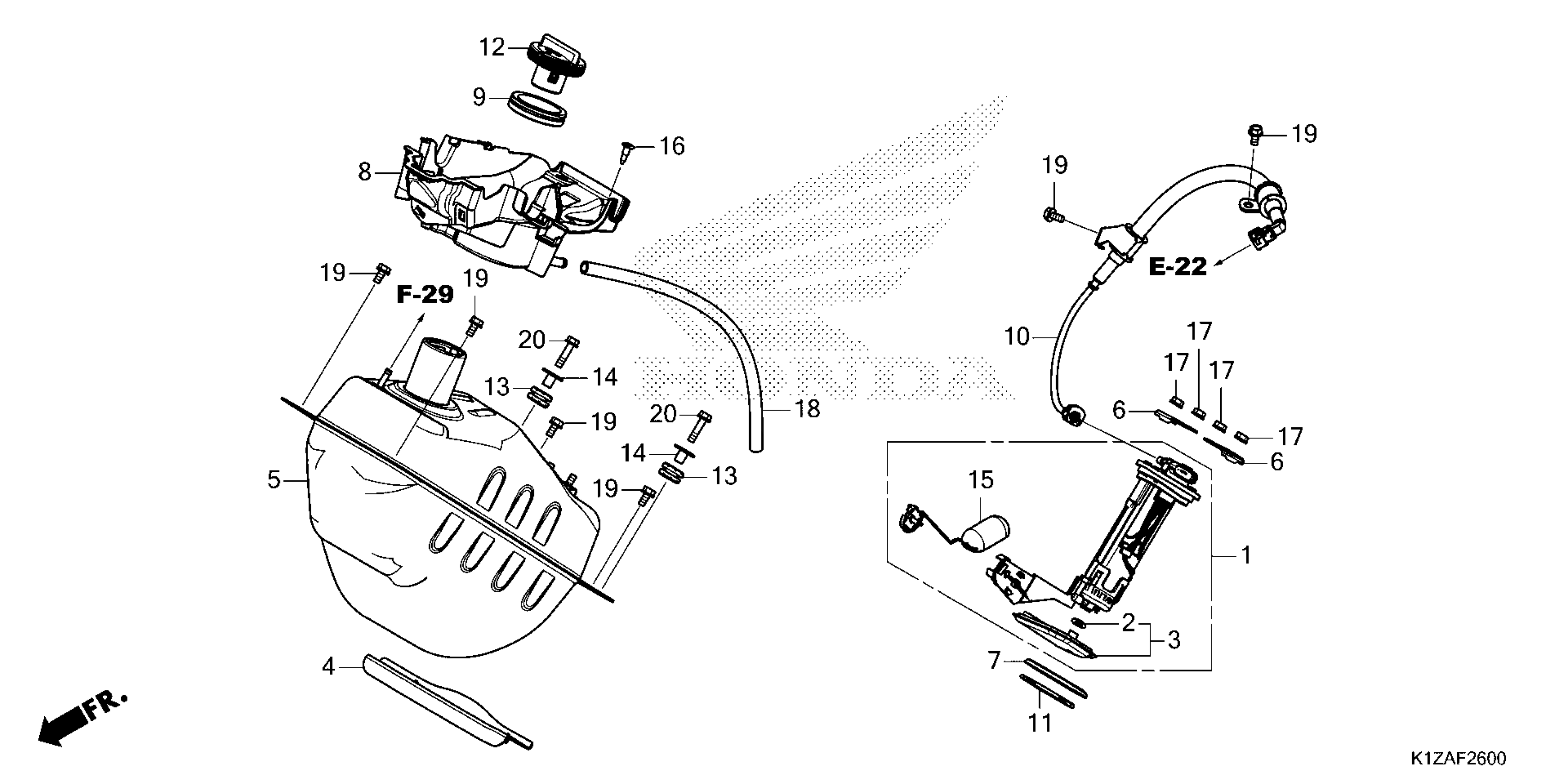

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 FUEL TANK Diagram

PUMP UNIT, FUEL

16700-K1Y-DC1

$44.75

O-RING (P5)

16706-K0J-N01

$1.49

FILTER SET

16707-K0W-NA1

$9.15

PLATE, FUEL TANK

17506-K1Z-J10

$2.16

TANK, FUEL

17510-K1Z-J10

$57.18

RETAINER, FUEL PUMP

17517-GGL-J00

$7.36

DUST SEAL

17518-GHB-603

$1.85

TRAY, FUEL

17525-K1Z-J10

$2.11

RUBBER, FUEL SEAL

17527-K35-V00

$1.49

HOSE, FUEL FEED

17570-K1Z-J11

$34.38

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$9.32

CAP, FUEL FILLER

17620-K66-V02

$8.82

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.49

COLLAR, TAILLIGHT

33707-K04-930

$1.49

FUEL UNIT

37800-K1Y-DC1

$11.37

RIVET, PUSH (6MM)

90116-K3V-N01

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
