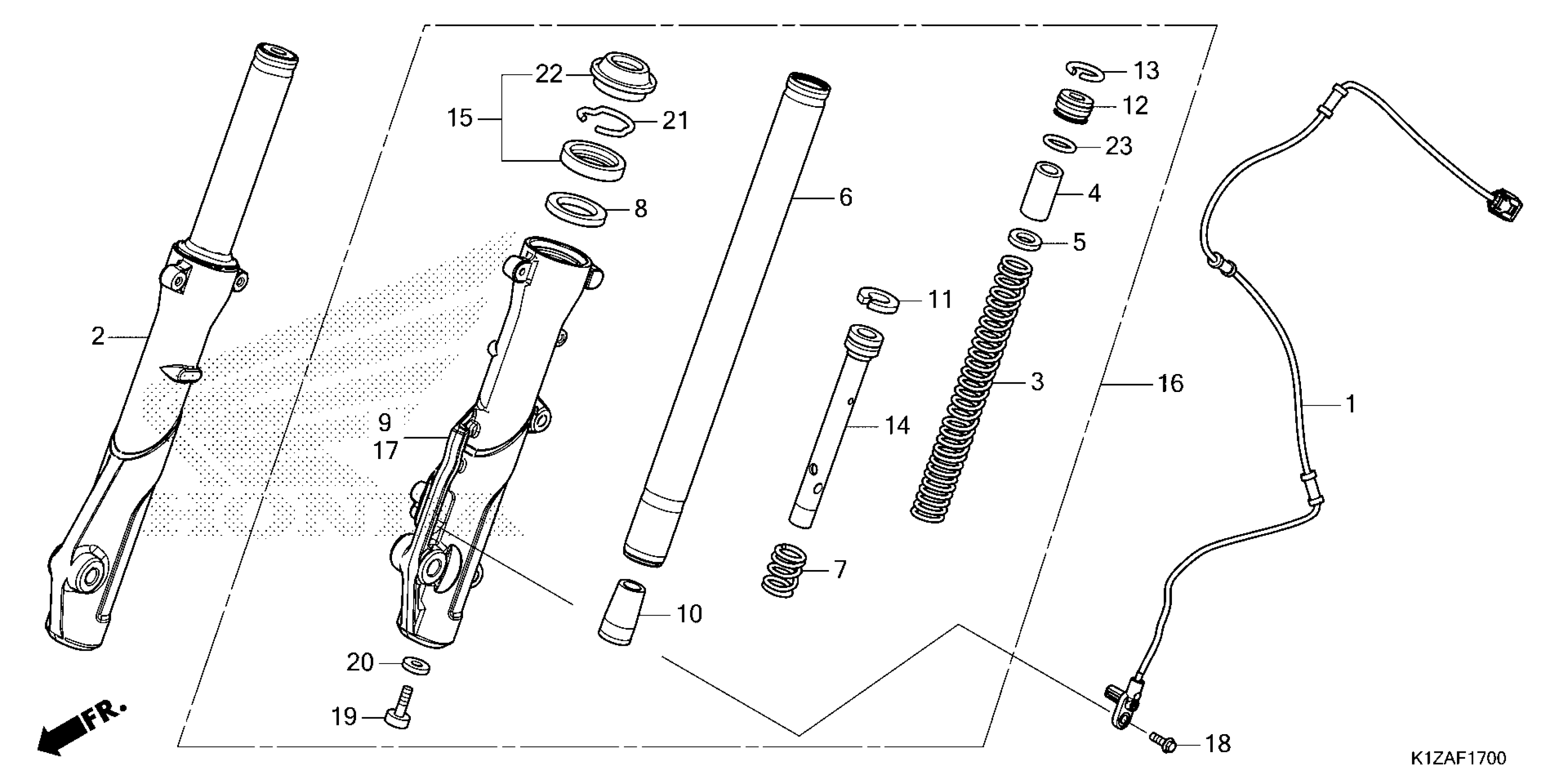

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 FRONT FORK Diagram

SENSOR, FR.

38520-K1Z-J51

$13.52

FORK ASSY., R. FR.

51400-K1Y-DC1

$58.68

SPRING, FR. FORK (SHOWA)

51401-K1Z-J11

$2.25

COLLAR, SPRING

51402-K97-T01

$1.49

PLATE, SPRING JOINT

51403-KW6-961

$1.49

PIPE, FR. FORK (SHOWA)

51410-K1Z-J11

$27.90

SPRING, FR. FORK REBOUND

51412-GC4-003

$6.61

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.60

CASE COMP, FR. R

51420-K96-T01

$31.36

PIECE, OIL LOCK

51432-K1N-V01

$1.49

PIECE, OIL LOCK

51432-K2P-VE1

$1.60

RING, PISTON

51437-GS3-003

$7.79

SEAT, SPRING (UPPER)

51454-K3M-T01

$1.49

RING, STOPPER (SHOWA)

51456-355-003

$7.08

PIPE, SEAT (SHOWA)

51470-K1Z-J11

$3.61

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$21.04

FORK ASSY., L. FR.

51500-K1Y-DC1

$63.16

CASE COMP, FR. L

51520-K1Y-D51

$38.02

BOLT, FLANGE (6X18)

90105-K77-V10

$1.49

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$5.13

DUST SEAL (SHOWA)

91254-GAA-003

$17.00

O-RING (21.8X2.4)

91356-K1N-V01

$1.49
