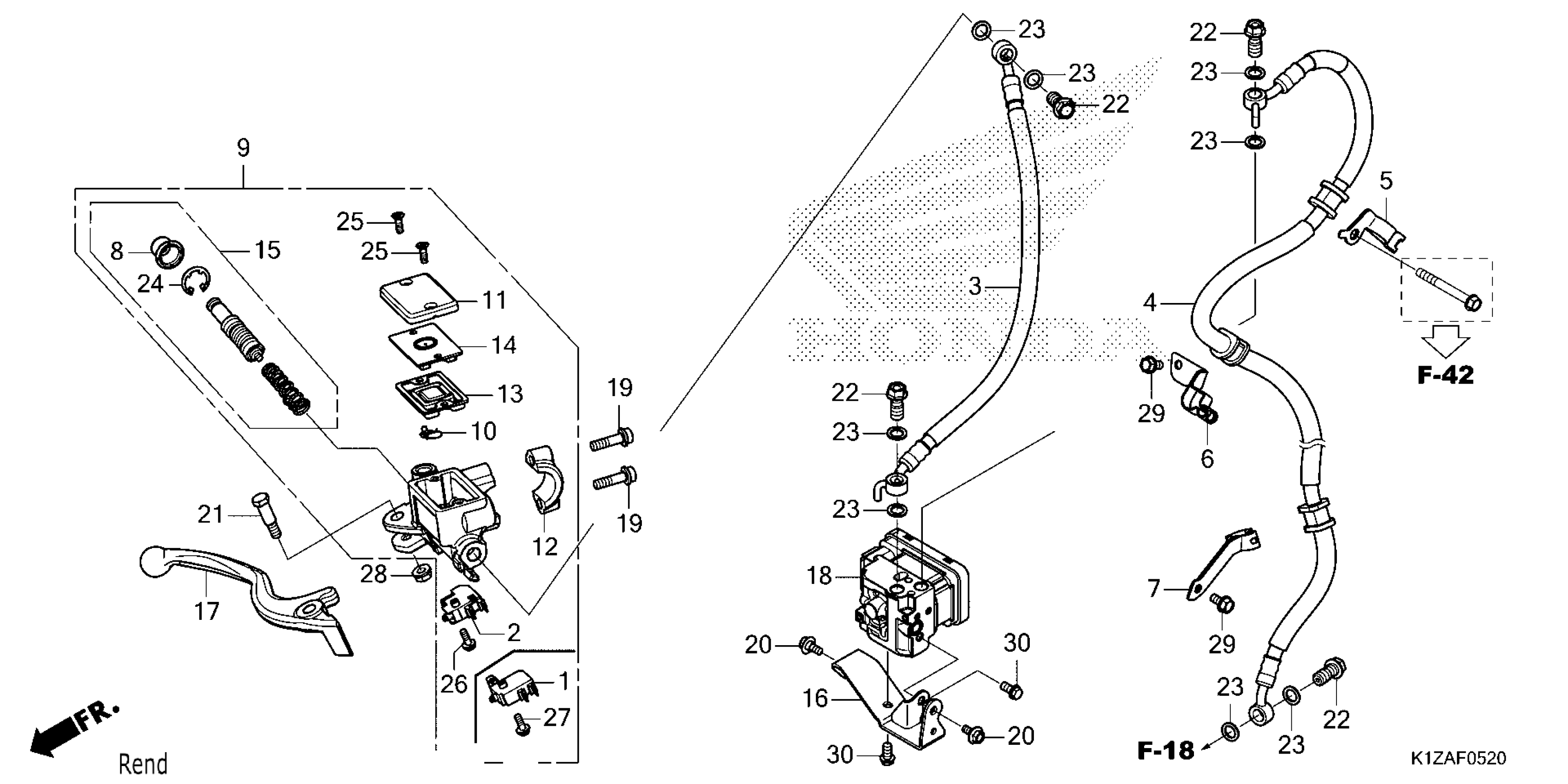

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH, FR. STOP

35340-K1Y-DC1

$3.97

2

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

3

HOSE COMP A, FR. BRK

45126-K1Y-J51

$10.40

4

HOSE COMP B, FR. BRK

45127-K1Y-J51

$16.97

5

CLAMP A, FR. BRK HSE

45156-K1Y-DC0

$0.65

6

CLAMP B, FR. BRK HSE

45157-K1Y-DC0

$0.91

7

CLAMP C, FR. BRK HSE

45158-K1Z-N50

$0.79

8

BOOT

45504-410-003

$11.17

9

M/CYL SUB-ASSY, FR.

45510-K1Y-DC1

$45.63

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-K35-V01.

45510-K36-305

$57.51

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-K36-305

$57.51

10

PROTECTOR

45512-MA6-006

$4.09

11

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

12

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

13

DIAPHRAGM

45520-GE2-006

$8.57

14

PLATE, DIAPHRAGM

45521-K21-901

$2.10

15

MASTER CYLINDER SET

45530-471-831

$36.42

16

STAY, ABS MODULATOR

50316-K97-J10

$8.07

17

LEVER, R. HANDLEBAR

53175-KWN-901

$28.46

18

MODULATOR ASSY.

57110-K1Y-DC1

$384.24

19

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$0.82

20

BOLT, FLANGE (6MM)

90111-162-000

$2.66

21

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

22

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

23

WASHER, OIL BOLT

90545-300-000

$5.79

24

CIRCLIP

90651-MA5-671

$2.38

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

26

SCREW-WASHER (4X12)

93893-04012-07

$1.32

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

27

SCREW-WASHER (4X12)

93893-04012-08

$1.32

27

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.32

28

NUT, FLANGE (6MM)

94050-06000

$0.60

29

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.79
