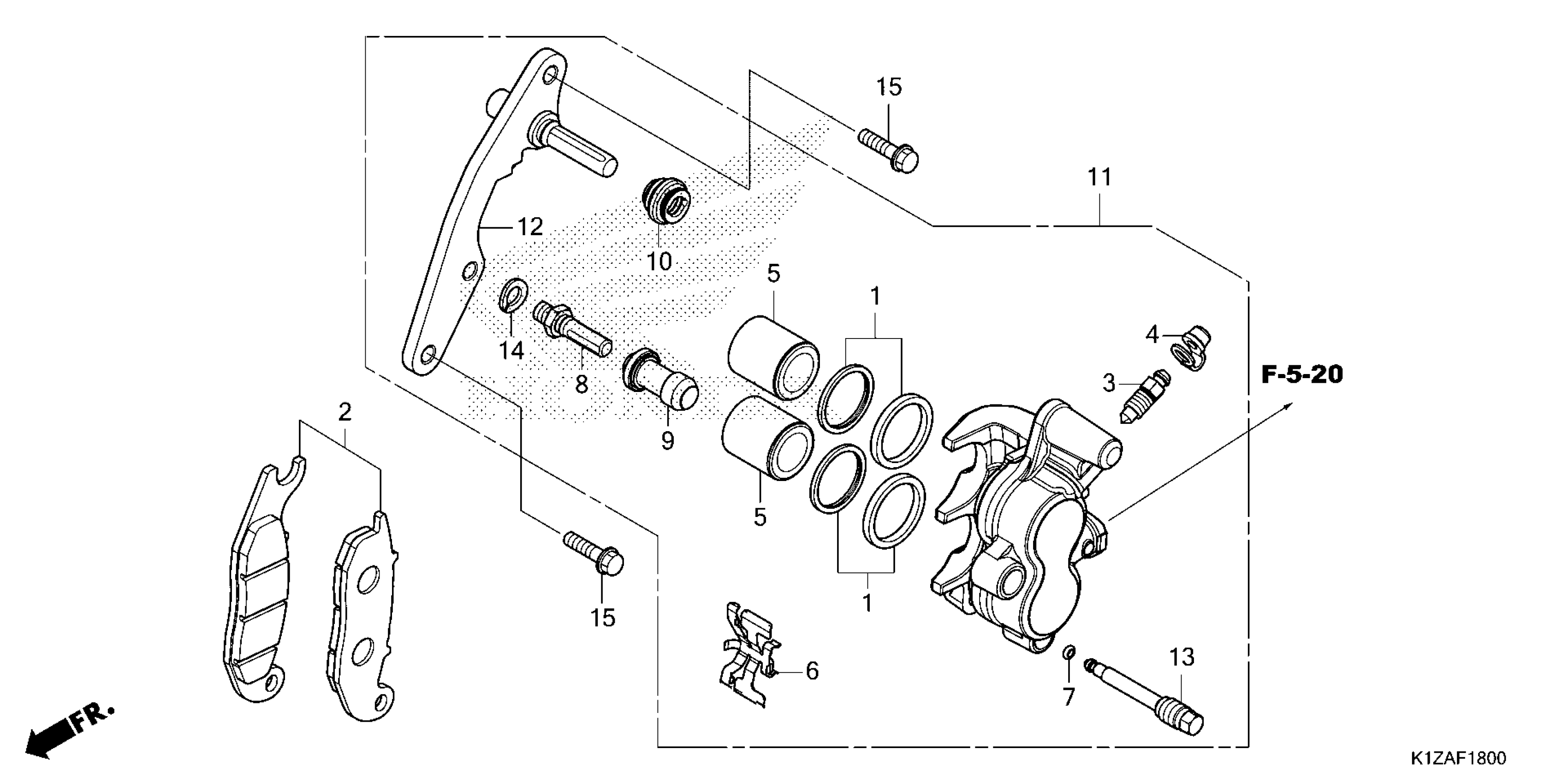

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

PAD SET, FR. BRAKE (NISSIN)

06455-K84-902

$9.31

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-GE2-006

$43.05

SPRING, PAD

45108-KPH-951

$1.97

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-K1Z-J11

$59.79

BRACKET SUB-ASSY., FR. CALIPER

45190-K1N-V11

$18.30

PIN, HANGER

45215-KPH-951

$2.92

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

BOLT, FLANGE (8X28)

90131-K1N-V00

$1.49
