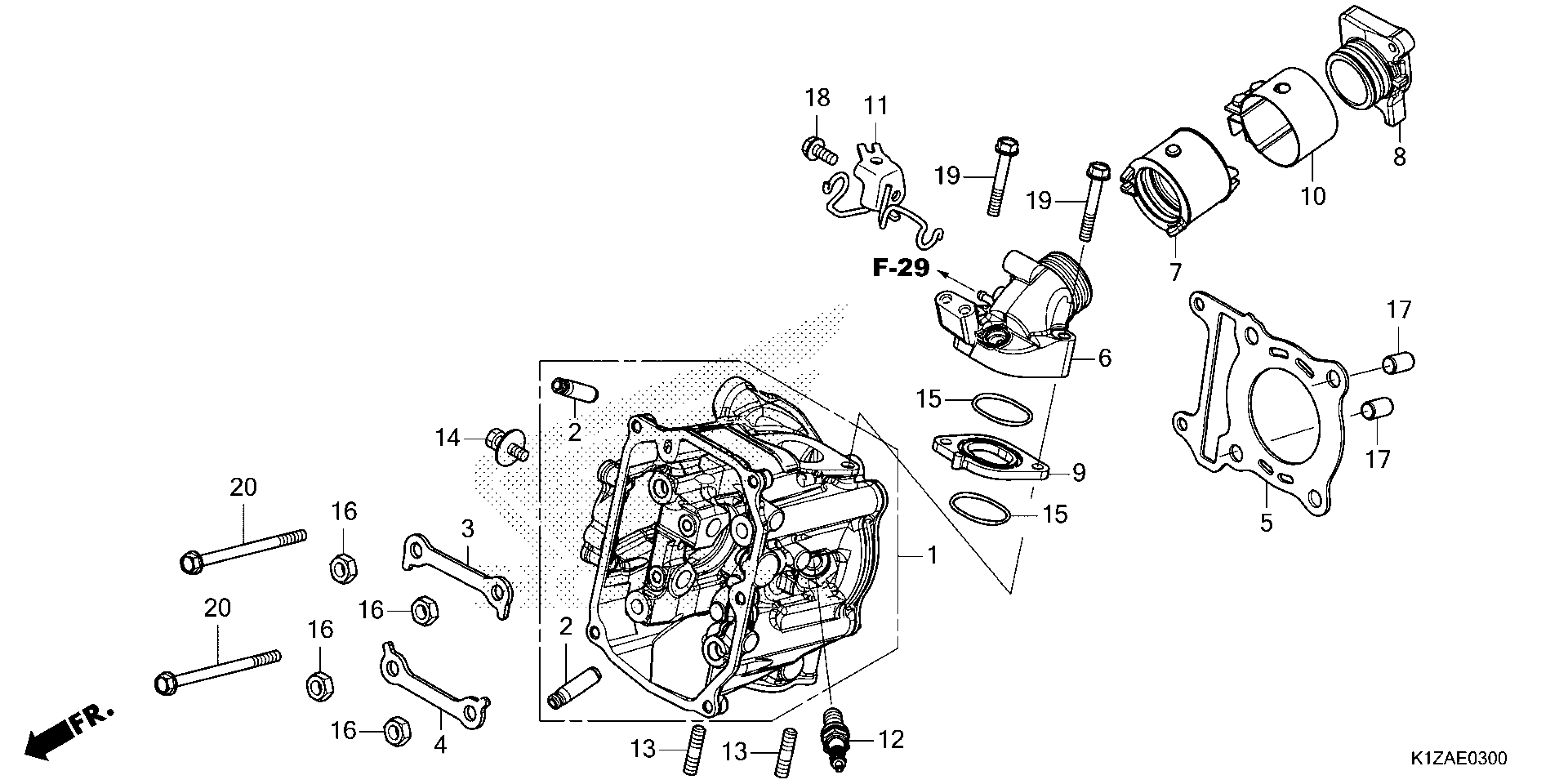

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-K0S-V00

$89.81

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.66

PLATE, CYLINDER HEAD IN.

12212-K0R-V00

$1.68

PLATE, CYLINDER HEAD EX.

12213-K0R-V00

$1.34

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-K1Z-J11

$2.24

PIPE, INLET

17110-K0S-V00

$19.03

INSULATOR, THROTTLE BODY

17112-K0R-V00

$2.41

PIPE B, INLET

17115-K0R-V00

$4.13

INSULATOR, IN. PIPE

17119-K0R-V10

$1.87

BAND, INSULATOR

17255-K0R-V00

$3.65

CLAMP, CABLE

17533-K1Z-J50

$1.91

SPARK PLUG (LMAR8L-9) (NGK)

31917-K0R-V01

$12.01

BOLT, STUD (7X17)

90004-KGF-910

$1.96

BOLT-WASHER (6X12)

90022-K40-F00

$0.18

O-RING, IN. PIPE

91302-K40-F00

$0.46

NUT, HEX. (8MM)

94030-08280

$0.81

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.74

BOLT, FLANGE (6X90) (Honda Code 2533842)

95701-06090-00

$1.87
