Partiron

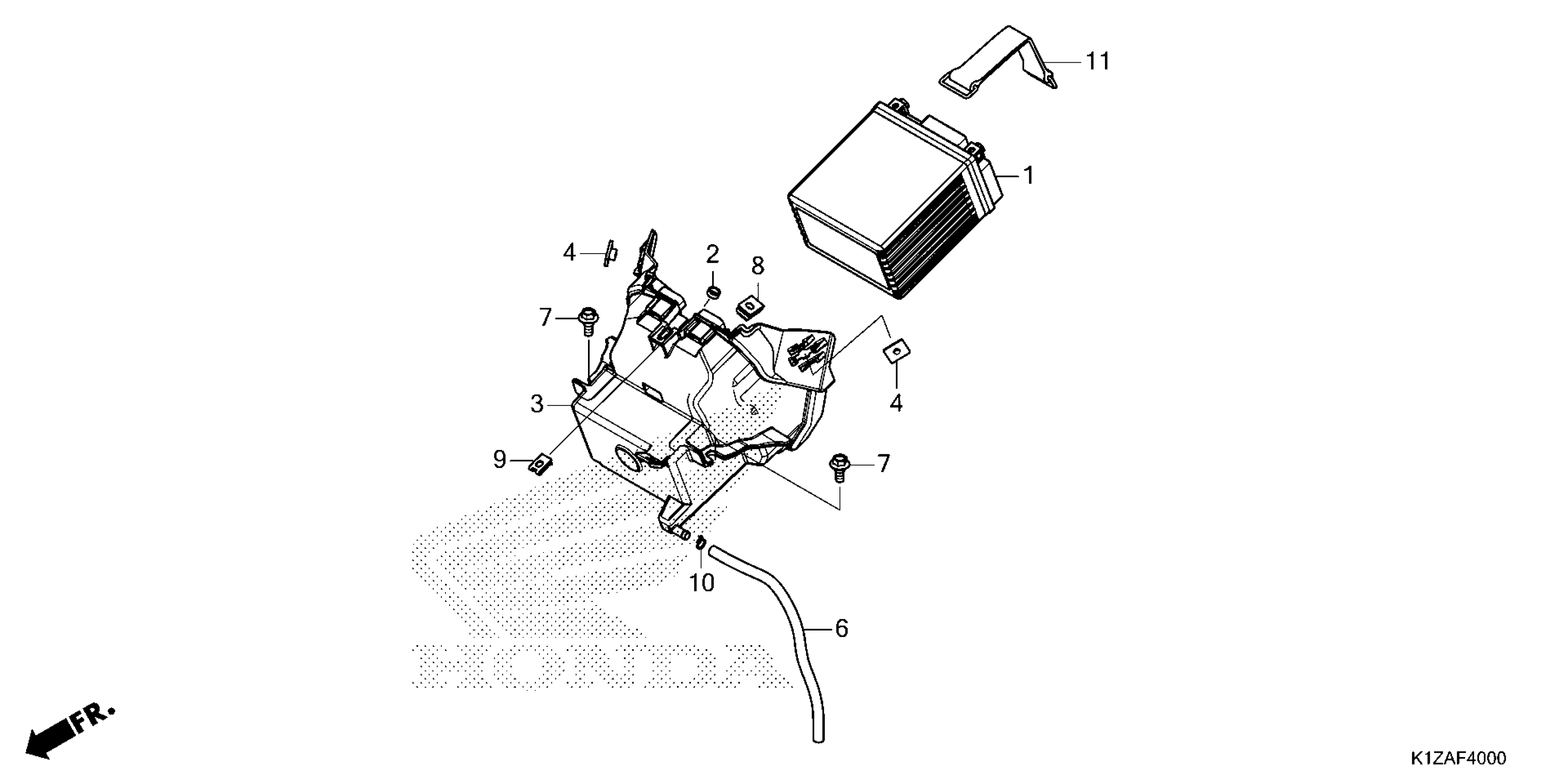

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 BATTERY Diagram

#

Description
Price

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS)

31500-K36-A01

$60.71

2

COLLAR, RR. FENDER

80108-K1Z-920

$2.75

3

BOX, BATTERY

81320-K1Z-J10

$4.22

4

NUT, SPECIAL (6X7)

81321-K97-T00

$1.19

6

TUBE (6X9X300)

95003-14030-20

$1.01

7

BOLT, FLANGE (6MM)

90111-162-000

$2.66

8

NUT, CLIP (6MM)

90311-MT3-000

$5.53

9

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

10

CLIP, TUBE (C9)

95002-50000

$1.16

11

BAND B2, BATTERY

95012-13001

$5.04
